Customized 1/2" E-Oval Shape Tungsten Crbide Burrs 1/2"*22mm Standard Double Cut 6mm Shank With 45mm Shank Length

Brand Name:	BABOS
Model Number:	E1220X06-170
MOQ:	10pcs
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10,0000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Tungsten Carbide

Shape:

Ball Nosed Cone Shape

Cut Diameter:

12mm

Cut Length:

20mm

Shank Diameter:

6mm Or 1/4"

Overall Length:

170mm

Flute Type:

Standard Double Cut

Suitable For:

Machining Surface Profile Of Workpiece

Application:

Deburring, Shaping, And Finishing

Package Quantity:

1 Pcs

Max Rpm:

50,000

Packaging Details:

Plastic Box

Product Description

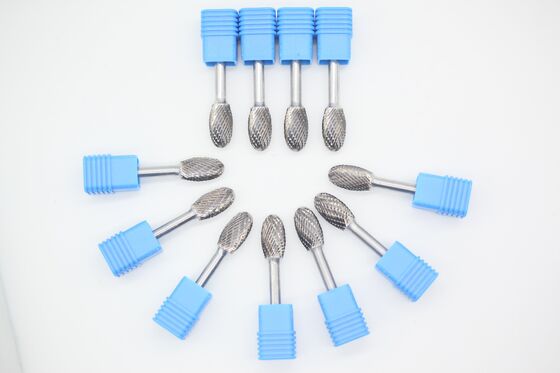

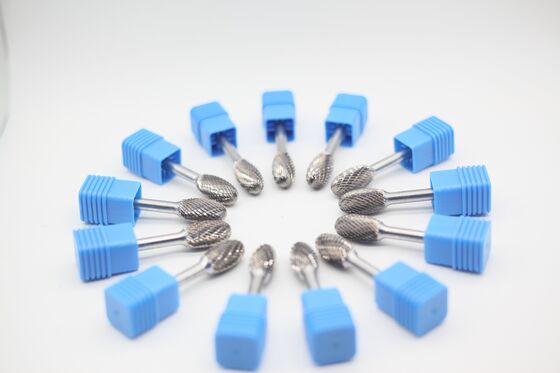

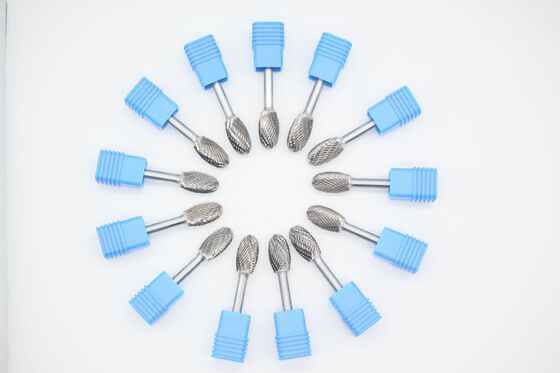

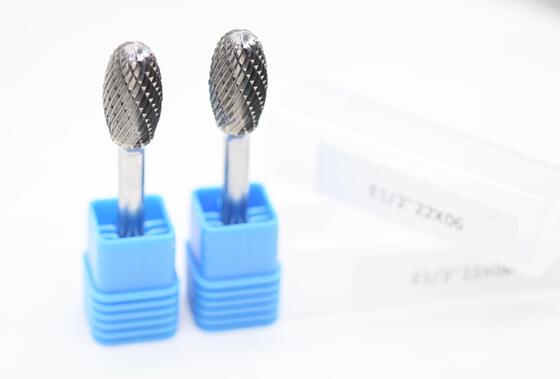

Customized 1/2" E-Oval Shape Tungsten Crbide Burrs 1/2"*22mm Standard Double Cut 6mm Shank With 45mm Shank Length

This item is customized tungsten carbide burrs with an E-Oval shape.They are designed for precision cutting and shaping in various industrial applications.

Brand: BABOS

Shape: E-oval shape

Material: Tungsten Carbide

Cut Diameter:1/2"(12.7mm)

Length of Flute: 22mm

Shank Diameter: 6mm

Shank Length: 45mm

OAL: 67mm

Cut Type: Standard Double Cut

BABOS Available Tungsten Carbide Burrs Shapes(A-N)

SA: Cylindrical (Without End Cut)
SB: Cylindrical With End Cut
SC: Cylindrical Ball Nose(Cylindrical Radius End)
SD: Ball Shape
SE: Oval Shape
SF: Tree RadiusShape
SG: Tree Point Shape
SH: Flame Shape
SJ: 60-degree countersink
SK: 90-degree countersink
SL: Ball Nosed Cone Shape(Taper Radius End)
SM: Cone Shape
SN: Inverted Cone Shape

Other Available Standard Sizes Related to Type E-Oval Shape Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	3	7	38	E0306	Solid
	5	8	46	E0508	Brazed
	6	10	48	E0610	Brazed
6	6	10	50	E0610	Brazed
	8	13	58	E0813	Brazed
	10	16	61	E1016	Brazed
	12	20	65	E1220	Brazed
	16	25	70	E1625	Brazed
	19	25	70	E1925	Brazed
8	12	20	65	E1220	Brazed
	16	25	70	E1625	Brazed
	19	25	70	E1925	Brazed
Inch Standard
1/8''	3/16"	9/32"	1-1/2"	SE-53	Solid
1/4''	1/4"	3/8"	64.05mm	SE-1	Brazed
	3/8"	5/8"	2-3/8"	SE-3	Brazed
	1/2"	7/8"	2-5/8"	SE-5	Brazed
	5/8"	1"	2-3/4"	SE-6	Brazed
	3/4"	1"	2-3/4"	SE-7	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type E burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
