SG-51 1/4'' Solid Carbide Burr Pointed Tree Carbide Burr On 1/8" Shank

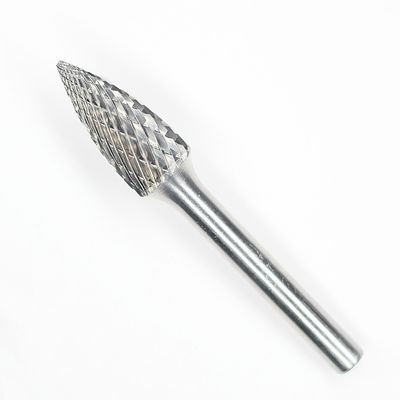

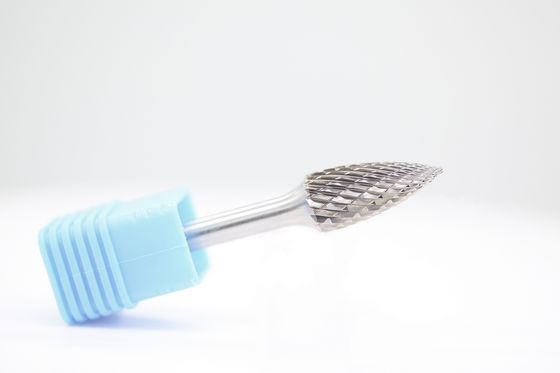

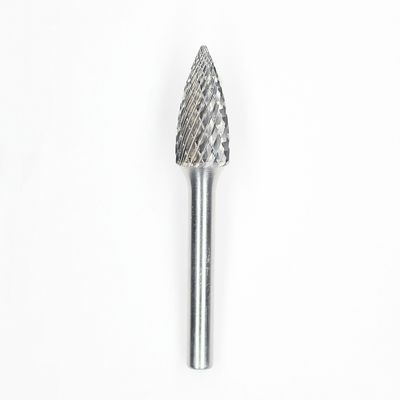

Large Image : SG-51 1/4'' Solid Carbide Burr Pointed Tree Carbide Burr On 1/8" Shank

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	SG-51

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiable
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10,0000pcs per month

Contact Now

Detailed Product Description

Material:	Tungsten Carbide	Shape:	Tree Pointed
Cut Diameter:	1/4 Inch	Cut Length:	1/2 Inch
Shank Diameter:	1/8 Inch	Flute Type:	Standard Double Cut
Suitable For:	Machining Surface Profile Of Workpiece	Application:	Deburring, Shaping, And Finishing
Package Quantity:	1	Max Rpm:	50,000
Highlight:	Die Grinder christmas tree burr bit , christmas tree burr bit 1/4 X 1/2in , carbide burr set 1/8 Shank

SG-51 1/4'' Solid Carbide Burr Pointed Tree Carbide Burr On 1/8" Shank

SG-51 Tree Pointed End Carbide Burr

SG-51 1/4'' Solid Carbide Burr Pointed Tree Carbide Burr On 1/8" Shank 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:1/4"

Length of Flute: 1/2"

Shank Diameter: 1/8"

OAL: 2"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type G Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	3	13	38	G0313	Solid
	5	13	51	G0513	Brazed
	6	13	51	G0613	Brazed
6	6	18	63	G0618	Brazed
	8	20	65	G0820	Brazed
	10	20	65	G1020	Brazed
	12	25	70	G1225	Brazed
	16	25	70	G1625	Brazed
	19	25	70	G1925	Brazed
8	12	25	70	G1225	Brazed
	16	25	70	G1625	Brazed
	19	25	70	G1925	Brazed
Inch Standard
Shank Dia. (inch)	Cutter Dia. (inch)	Length of Cut (inch)	Overall Length (inch)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
1/8''	1/8"	1/2"	1-1/2"	SG-44	Solid
1/4''	1/4"	5/8"	2"	SG-1	Brazed
	5/16"	3/4''	2-1/2"	SG-2	Brazed
	3/8"	3/4''	2-1/2"	SG-3	Brazed
	1/2"	1	2-3/4"	SG-5	Brazed
	5/8"	1	2-3/4"	SG-6	Brazed
	3/4"	1	2-3/4"	SG-7	Brazed
	3/4"	1-1/2"	3-1/4"	SG-15	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type G burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
