C Shape Aluminum Cut Carbide Burr 12mm*25mm With 6mm Shank Dia. Ball Nosed Cylinder Carbide Burrs

C Shape Aluminum Cut Carbide Burr 12mm*25mm With 6mm Shank Dia. Ball Nosed Cylinder Carbide Burrs

Brand Name:	BABOS
Model Number:	SC-Ball Nosed Cylinder
MOQ:	20pcs
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10,0000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Tungsten Carbide

Shape:

Ball Nosed Cylinder

Cut Diameter:

12mm

Cut Length:

25mm

Shank Diameter:

6mm

Overall Length:

70mm

Flute Type:

Aluminum Cut

Suitable For:

Machining Surface Profile Of Workpiece

Application:

Deburring, Shaping, And Finishing

Package Quantity:

1 Piece

Max Rpm:

50,000

Packaging Details:

Plastic Box

Product Description

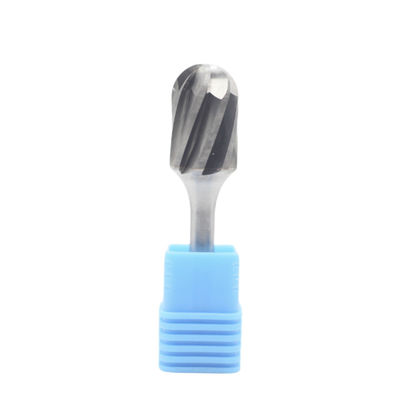

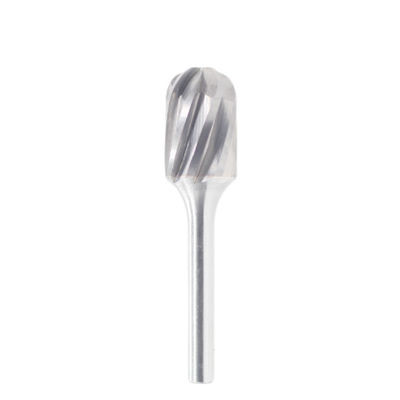

C Shape Aluminum Cut Burr 12mm*25mm With 6mm Shank Dia. Ball Nosed Cylinder Carbide Burrs

Description:

This C-shape aluminum cut carbide burr is a high-performance tool engineered to provide efficient, clean, and clog-free cutting on soft and gummy materials, making it indispensable for professionals working with aluminum and similar non-ferrous alloys.

Specifications:

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:12mm

Length of Flute: 25mm

Shank Diameter: 6mm

OAL: 70mm

Cut Type: Aluminum Cut

Other Available Sizes Related to Type C Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	2	11	38	C0211	Solid
	2.5	11	38	C2511	Solid
	3	13	38	C0313	Solid
	5	13	38	C0513	Brazed
	6	13	45	C0613	Brazed
6	6	16	63	C0616	Brazed
	6	25	65	C0625	Solid
	8	20	65	C0820	Brazed
	10	20	70	C1020	Brazed
	11	25	70	C1125	Brazed
	12	25	70	C1225	Brazed
	16	25	70	C1625	Brazed
	19	25	70	C1925	Brazed
	25	25	70	C2525	Brazed
8	12	25	70	C1225	Brazed
	16	25	70	C1625	Brazed
	19	25	70	C1925	Brazed
	25	25	70	C2525	Brazed
Inch Standard
1/8''	1/8"	1/2"	1-1/2"	SC-42	Solid
1/8''	1/4"	1/2"	2"	SC-51	Brazed
1/4"	3/16"	9/32"	2''	SC-14	Solid
	1/4"	1"	2''	SC-1L	Solid
	5/16"	3/4''	2-1/2"	SC-2	Brazed
	3/8"	3/4''	2-1/2"	SC-3	Brazed
	7/16"	1"	2-3/4"	SC-4	Brazed
	1/2"	1"	2-3/4"	SC-5	Brazed
	5/8"	1"	2-3/4"	SC-6	Brazed
	3/4"	1"	2-3/4"	SC-7	Brazed
	7/8"	1"	2-3/4"	SC-8	Brazed
3/8''	1"	1"	2-3/4"	SC-9	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type C burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
