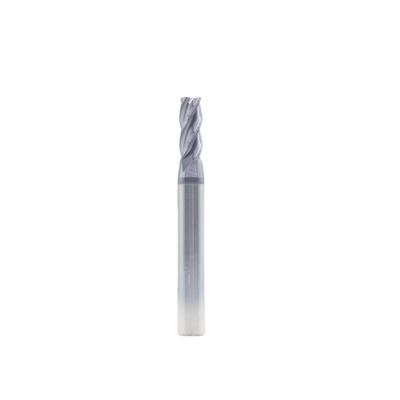

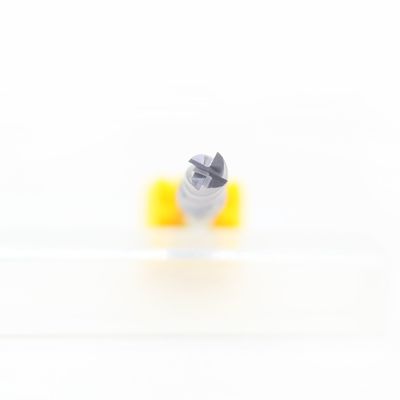

5mm Dia 5*13*5*50 AITiN Black Nano Coating 4 Flute Carbide Square End Mill For Steel Cast Iron
Product Description:
This 5 mm AITiN nano‑coated, 4‑flute carbide square end mill combines high thermal resilience, wear resistance, and low-friction cutting with robust micro‑grain carbide to effectively machine steel and cast iron up to HRC 60. It excels in CNC applications requiring smooth finishes, durability, and productivity.
Technical Specifications:
- Flutes: 4
- Cutting Diameter: 5mm
- Cutting Length: 13mm
- Shank Diameter: 5mm
- Overall Length: 50mm
- Material: Solid Carbide
- Coating: AlTiN Black Nano (Matte black) (Aluminum Titanium Nitride)
- Application: Suitable for stainless steel, tool/mold steel, copper, aluminum, etc.
2/4 Flutes Flat End Mill Specifications
(For Carbon Steel, Alloy Steel, Cast Iron) |
| Sizes |
Cut Diameter
D |
Cut Length
Lc |
Shank Diameter
d |
Overall Length
L |
Flutes No. |
| 3*8*3*50 |
3 |
8 |
3 |
50 |
2 / 4 |
| 3*12*3*75 |
3 |
12 |
3 |
75 |
2 / 4 |
| 3*15*3*100 |
3 |
15 |
3 |
100 |
2 / 4 |
| 1*3*4*50 |
1 |
3 |
4 |
50 |
2 / 4 |
| 1*3*4*75 |
1 |
3 |
4 |
75 |
4 |
| 1.5*4*4*50 |
1.5 |
4 |
4 |
50 |
2 / 4 |
| 1.5*4*4*75 |
1.5 |
4 |
4 |
75 |
4 |
| 2*5*4*50 |
2 |
5 |
4 |
50 |
2 / 4 |
| 2*5*4*75 |
2 |
5 |
4 |
75 |
4 |
| 2.5*7*4*50 |
2.5 |
7 |
4 |
50 |
2 / 4 |
| 2.5*7*4*75 |
2.5 |
7 |
4 |
75 |
4 |
| 3*8*4*50 |
3 |
8 |
4 |
50 |
2 / 4 |
| 3*8*4*75 |
3 |
8 |
4 |
75 |
4 |
| 3.5*10*4*50 |
3.5 |
10 |
4 |
50 |
2 / 4 |
| 4*10*4*50 |
4 |
10 |
4 |
50 |
2 / 4 |
| 4*16*4*75 |
4 |
16 |
4 |
75 |
2 / 4 |
| 4*20*4*100 |
4 |
20 |
4 |
100 |
2 / 4 |
| 5*13*5*50 |
5 |
13 |
5 |
50 |
2 / 4 |
| 5*20*5*75 |
5 |
20 |
5 |
75 |
2 / 4 |
| 5*25*5*100 |
5 |
25 |
5 |
100 |
2 / 4 |
| 1*3*6*50 |
1 |
3 |
6 |
50 |
2 / 4 |
| 1.5*4*6*50 |
1.5 |
4 |
6 |
50 |
2 / 4 |
| 2*5*6*50 |
2 |
5 |
6 |
50 |
2 / 4 |
| 2.5*7*6*50 |
2.5 |
7 |
6 |
50 |
2 / 4 |
| 3*8*6*50 |
3 |
8 |
6 |
50 |
2 / 4 |
| 3.5*10*6*50 |
3.5 |
10 |
6 |
50 |
2 / 4 |
| 4*10*6*50 |
4 |
10 |
6 |
50 |
2 / 4 |
| 4*12*4*50 |
4 |
12 |
4 |
50 |
4 |
| 4.5*12*6*50 |
4.5 |
12 |
6 |
50 |
2 / 4 |
| 5*13*6*50 |
5 |
13 |
6 |
50 |
2 / 4 |
| 5.5*15*6*50 |
5.5 |
15 |
6 |
50 |
2 / 4 |
| 6*15*6*50 |
6 |
15 |
6 |
50 |
2 / 4 |
| 6*18*6*50 |
6 |
18 |
6 |
50 |
4 |
| 6*25*6*75 |
6 |
25 |
6 |
75 |
2 / 4 |
| 6*30*6*100 |
6 |
30 |
6 |
100 |
2 / 4 |
| 6*40*6*150 |
6 |
40 |
6 |
150 |
2 / 4 |
| 7*18*8*60 |
7 |
18 |
8 |
60 |
2 / 4 |
| 8*20*8*60 |
8 |
20 |
8 |
60 |
2 / 4 |
| 8*24*8*60 |
8 |
24 |
8 |
60 |
4 |
| 8*28*8*75 |
8 |
28 |
8 |
75 |
2 / 4 |
| 8*35*8*100 |
8 |
35 |
8 |
100 |
2 / 4 |
| 8*50*8*150 |
8 |
50 |
8 |
150 |
2 / 4 |
| 9*23*10*75 |
9 |
23 |
10 |
75 |
2 / 4 |
| 10*25*10*75 |
10 |
25 |
10 |
75 |
2 / 4 |
| 10*30*10*75 |
10 |
30 |
10 |
75 |
4 |
| 10*40*10*100 |
10 |
40 |
10 |
100 |
2 / 4 |
| 10*50*10*100 |
10 |
50 |
10 |
100 |
4 |
| 10*50*10*150 |
10 |
50 |
10 |
150 |
2 / 4 |
| 11*28*12*75 |
11 |
28 |
12 |
75 |
2 / 4 |
| 12*30*12*75 |
12 |
30 |
12 |
75 |
2 / 4 |
| 12*36*12*75 |
12 |
36 |
12 |
75 |
4 |
| 12*45*12*100 |
12 |
45 |
12 |
100 |
2 / 4 |
| 12*50*10*100 |
12 |
50 |
12 |
100 |
4 |
| 12*60*12*150 |
12 |
60 |
12 |
150 |
2 / 4 |
| 14*35*14*80 |
14 |
35 |
14 |
80 |
2 / 4 |
| 13*45*14*100 |
13 |
45 |
14 |
100 |
2 / 4 |
| 14*45*14*100 |
14 |
45 |
14 |
100 |
2 / 4 |
| 14*60*14*150 |
14 |
60 |
14 |
150 |
2 / 4 |
| 15*45*16*100 |
15 |
45 |
16 |
100 |
2 / 4 |
| 16*45*16*100 |
16 |
45 |
16 |
100 |
2 / 4 |
| 16*60*16*150 |
16 |
60 |
16 |
150 |
2 / 4 |
| 18*45*18*100 |
18 |
45 |
18 |
100 |
2 / 4 |
| 18*70*18*150 |
18 |
70 |
18 |
150 |
2 / 4 |
| 20*45*20*100 |
20 |
45 |
20 |
100 |
2 / 4 |
| 20*70*20*150 |
20 |
70 |
20 |
150 |
2 / 4 |
Packaging and Shipping:

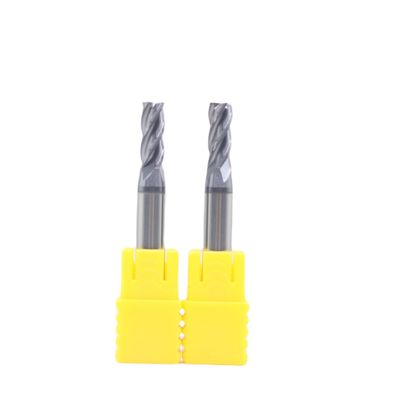

• Packaging:Typically packaged in plastic pipes or boxes to ensure protection during transit.
• Minimum Order Quantity:Varies by supplier,but generally starts from 10 pieces.
• Delivery Time:Usually within 3-5 days for standard sizes after order confirmation.
Notes:
• Before using the carbide end mill,it is recommended to measure the tool deflection and correct it if the accuracy exceeds 0.01mm.
• The tool's performance can be optimized by adjusting cutting parameters such as speed,feed rate,and cutting depth based on the material being machined.
