Milling Cutter
Created with Pixso.

Tungsten Carbide End Mill for Aluminum, Steel, Carbon steel, Alloy steel, Stainless Steel,Cast lron

Tungsten Carbide End Mill for Aluminum, Steel, Carbon steel, Alloy steel, Stainless Steel,Cast lron

Brand Name: BABOS
MOQ: 10pcs
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,
Supply Ability: 200,000PCS per month
Detail Information
Place of Origin:
China
Flute Number:
2/3/4
Coating/Finish Type:
TiAISiN/AITiN/TISIN/TiAISiN/Uncoated
Cut Diameter:
1mm-20mm Or Customized
Shank Diameter:
Straight Shank/ Fixed Shank
Overall Length:
Standard Or Customized
Packaging Details:
Plastic Box
Highlight:

Tungsten Carbide End Mill for Steel

,

Tungsten Carbide End Mill for Aluminum

,

Carbon Steel Tungsten Carbide End Mill

Product Description

Tungsten Carbide End Mill Product Description


1.Solid Carbide End Mills for CNC Milling – Made from Virgin Carbide


BABOS solid carbide end mills are ground from ultra-fine, virgin tungsten carbide on CNC grinding machines and finished with advanced TiAlSiN / AlTiN PVD coatings. From mold making to aerospace components, our end mills deliver stable performance and long tool life in carbon steel, alloy steel, stainless steel, cast iron, and hardened steels up to HRC 65.


2.Product Range:

Full Range of Geometries and Grades

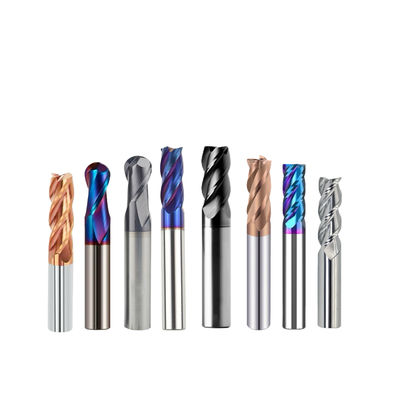

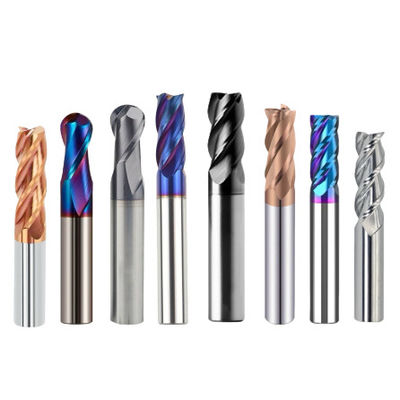

  • Square end mills (flat end) – general-purpose profiling, slotting, and shoulder milling
  • Ball nose end mills – 3D contouring, mold cavities, and finish machining
  • Corner radius end mills – extended edge strength for hardened steel milling
  • Roughing end mills (corn flute) – rapid stock removal with lower cutting forces
  • Long neck / shortened flute – for deep cavity and interfered-profile machining

Hardness grades cover the full spectrum: HRC45 for general steel, HRC55 for alloy and pre-hardened steel, HRC60–65 for hardened tool steels and die machining. Flute counts from 1 to 4 (and multi-flute finishing on request), with standard diameters from 0.5mm to 25mm — custom sizes and tolerances available as OEM.

Coating Options

  • TiAlSiN – our general-purpose high-performance coating for steel and stainless steel
  • AlTiN – higher hot hardness for hardened steel and dry machining
  • Uncoated polished options for aluminum and non-ferrous applications

Every batch is inspected for cutting edge quality, runout, and coating adhesion. Typical runout ≤ 0.005mm for precision sizes.

Tungsten Carbide End Mill for Aluminum, Steel, Carbon steel, Alloy steel, Stainless Steel,Cast lron

Tungsten Carbide End Mill for Aluminum, Steel, Carbon steel, Alloy steel, Stainless Steel,Cast lron

Why B2B Buyers Choose BABOS

  • Factory-direct prices with low MOQ — suitable for distributors and CNC tooling brands
  • Full OEM/ODM: custom geometries, laser marking, retail-ready packaging
  • Consistent batch-to-batch quality with full inspection reports on request
  • Free application advice: tell us your workpiece material and machine setup, we recommend the right grade and coating

FAQS:

Q: Which hardness grade should I choose?

A: HRC45 for mild/medium steel, HRC55 for alloy and pre-hardened steel, HRC60–65 for hardened die and tool steel. If you machine mixed materials, HRC55 is the versatile choice.

Q: How many flutes do I need?

A: 2 flutes for aluminum and soft materials (better chip evacuation), 3 flutes as a compromise for stainless, 4 flutes for steel and finishing work in harder materials.

Q: Do you produce custom sizes and geometries?

A: Yes — we manufacture custom diameters, flute lengths, and geometries as OEM, including your logo laser-marked on the shank.
