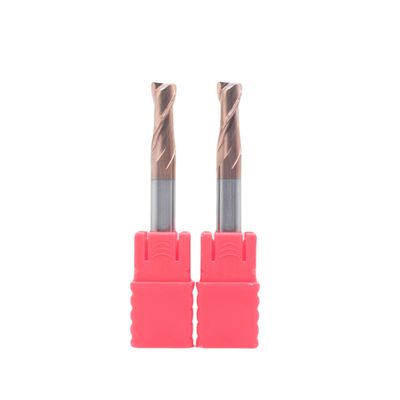

8mm Dia 8*20*8*60 TiAISiN Coated 2 Flutes Flat Carbide End Mill For Carbon Steel Alloy Steel Cast Iron

All Products
Tungsten Carbide Burr (96)
Annular Cutter (28)
Milling Cutter (66)
Circular Saw (4)
Screw Tap (9)
Drill Bit (17)
China CHENGDU BABOS CUTTING TECH CO.,LTD certification
China CHENGDU BABOS CUTTING TECH CO.,LTD certification
I'm Online Chat Now

8mm Dia 8*20*8*60 TiAISiN Coated 2 Flutes Flat Carbide End Mill For Carbon Steel Alloy Steel Cast Iron

8mm Dia 8*20*8*60 TiAISiN Coated 2 Flutes Flat Carbide End Mill For Carbon Steel Alloy Steel Cast Iron
8mm Dia 8*20*8*60 TiAISiN Coated 2 Flutes Flat Carbide End Mill For Carbon Steel Alloy Steel Cast Iron
video play

Large Image :  8mm Dia 8*20*8*60 TiAISiN Coated 2 Flutes Flat Carbide End Mill For Carbon Steel Alloy Steel Cast Iron

Product Details:
Place of Origin: China
Brand Name: BABOS
Model Number: 8*20*8*60-2F
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Plastic Box
Delivery Time: 3 days for standard products, 1-2weeks for custom products.
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 20,000PCS per month
Contact Now
Detailed Product Description
Cut Diameter: 8mm Cut Length: 20mm
Overall Length: 8mm Flute Number: 2
Coating/Finish Type: TiAISiN Sample Order: Accepted
Customize: Available

8mm Dia 8*20*8*60 TiAISiN Coated 2 Flutes Flat Carbide End Mill For Carbon Steel Alloy Steel Cast Iron

Product Description:

This 8 mm TiAlSiN-coated, 2-flute carbide end mill is a robust, versatile solution tailored for efficient milling of carbon and alloy steels, as well as cast iron up to moderate hardness (≤ 55 HRC). Its coating and geometry enable both high feed rates and extended tool life—making it a smart choice for general-purpose shop milling.



Specifications:

  • Cutting Diameter: 8mm
  • Flute Length: 20mm
  • Shank Diameter: 8mm
  • Overall Length: 60mm
  • Flutes: 2
  • Geometry: Square End (Flat End)





Features:

  • Premium micro-grain carbide for high rigidity and excellent tool life
  • TiAlSiN coating for high thermal stability and superior wear resistance
  • 2-flute design provides excellent chip control and smooth surface finishes, – ideal for efficient chip evacuation in slotting and shoulder milling
  • Square end geometry ideal for slotting, profiling, and face milling
  • Suitable for both roughing and finishing cuts



Applications:

  • Carbon Steel
  • Alloy Steel
  • Cast Iron
    Widely used in mold and die industries, aerospace parts production, and automotive machining tasks.



8mm Dia 8*20*8*60 TiAISiN Coated 2 Flutes Flat Carbide End Mill For Carbon Steel Alloy Steel Cast Iron 0

 2/4 Flutes Flat End Mill Specifications
(For Carbon Steel, Alloy Steel, Cast Iron)
Sizes Cut Diameter
D		 Cut Length
Lc		 Shank Diameter
d		 Overall Length
L		 Flutes No.
3*8*3*50 3 8 3 50 2 / 4
3*12*3*75 3 12 3 75 2 / 4
3*15*3*100 3 15 3 100 2 / 4
1*3*4*50 1 3 4 50 2 / 4
1*3*4*75 1 3 4 75 4
1.5*4*4*50 1.5 4 4 50 2 / 4
1.5*4*4*75 1.5 4 4 75 4
2*5*4*50 2 5 4 50 2 / 4
2*5*4*75 2 5 4 75 4
2.5*7*4*50 2.5 7 4 50 2 / 4
2.5*7*4*75 2.5 7 4 75 4
3*8*4*50 3 8 4 50 2 / 4
3*8*4*75 3 8 4 75 4
3.5*10*4*50 3.5 10 4 50 2 / 4
4*10*4*50 4 10 4 50 2 / 4
4*16*4*75 4 16 4 75 2 / 4
4*20*4*100 4 20 4 100 2 / 4
5*13*5*50 5 13 5 50 2 / 4
5*20*5*75 5 20 5 75 2 / 4
5*25*5*100 5 25 5 100 2 / 4
1*3*6*50 1 3 6 50 2 / 4
1.5*4*6*50 1.5 4 6 50 2 / 4
2*5*6*50 2 5 6 50 2 / 4
2.5*7*6*50 2.5 7 6 50 2 / 4
3*8*6*50 3 8 6 50 2 / 4
3.5*10*6*50 3.5 10 6 50 2 / 4
4*10*6*50 4 10 6 50 2 / 4
4*12*4*50 4 12 4 50 4
4.5*12*6*50 4.5 12 6 50 2 / 4
5*13*6*50 5 13 6 50 2 / 4
5.5*15*6*50 5.5 15 6 50 2 / 4
6*15*6*50 6 15 6 50 2 / 4
6*18*6*50 6 18 6 50 4
6*25*6*75 6 25 6 75 2 / 4
6*30*6*100 6 30 6 100 2 / 4
6*40*6*150 6 40 6 150 2 / 4
7*18*8*60 7 18 8 60 2 / 4
8*20*8*60 8 20 8 60 2 / 4
8*24*8*60 8 24 8 60 4
8*28*8*75 8 28 8 75 2 / 4
8*35*8*100 8 35 8 100 2 / 4
8*50*8*150 8 50 8 150 2 / 4
9*23*10*75 9 23 10 75 2 / 4
10*25*10*75 10 25 10 75 2 / 4
10*30*10*75 10 30 10 75 4
10*40*10*100 10 40 10 100 2 / 4
10*50*10*100 10 50 10 100 4
10*50*10*150 10 50 10 150 2 / 4
11*28*12*75 11 28 12 75 2 / 4
12*30*12*75 12 30 12 75 2 / 4
12*36*12*75 12 36 12 75 4
12*45*12*100 12 45 12 100 2 / 4
12*50*10*100 12 50 12 100 4
12*60*12*150 12 60 12 150 2 / 4
14*35*14*80 14 35 14 80 2 / 4
13*45*14*100 13 45 14 100 2 / 4
14*45*14*100 14 45 14 100 2 / 4
14*60*14*150 14 60 14 150 2 / 4
15*45*16*100 15 45 16 100 2 / 4
16*45*16*100 16 45 16 100 2 / 4
16*60*16*150 16 60 16 150 2 / 4
18*45*18*100 18 45 18 100 2 / 4
18*70*18*150 18 70 18 150 2 / 4
20*45*20*100 20 45 20 100 2 / 4
20*70*20*150 20 70 20 150 2 / 4



Packaging and Shipping:

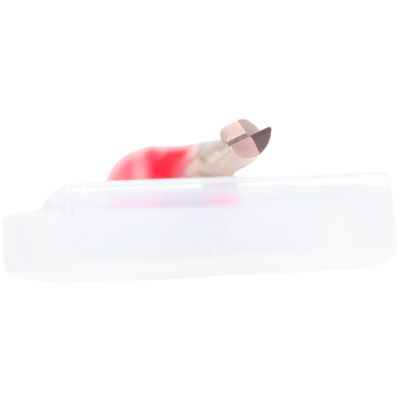

• Packaging:Typically packaged in plastic pipes or boxes to ensure protection during transit.

• Minimum Order Quantity:Varies by supplier,but generally starts from 10 pieces.

• Delivery Time:Usually within 3-5 days for standard sizes after order confirmation.



Notes:


• Before using the carbide end mill,it is recommended to measure the tool deflection and correct it if the accuracy exceeds 0.01mm.

• The tool's performance can be optimized by adjusting cutting parameters such as speed,feed rate,and cutting depth based on the material being machined.
