Milling Cutter
Created with Pixso.

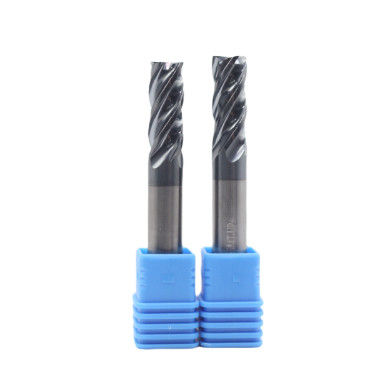

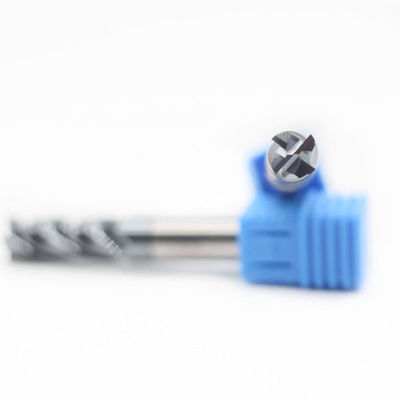

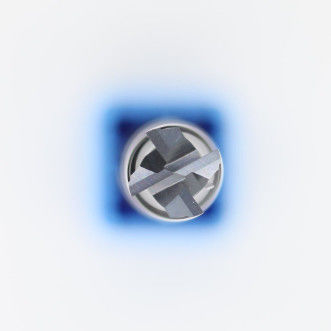

10*25*10*75*4T 4flutes End Mill AlTiN Coating For Alloy Steel, Hardened Steel,Gray Cast Iron, Ductile Cast Iron

10*25*10*75*4T 4flutes End Mill AlTiN Coating For Alloy Steel, Hardened Steel,Gray Cast Iron, Ductile Cast Iron

Brand Name: BABOS
Model Number: 10*25*10*75-4T SP
MOQ: 10pcs
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 20,000PCS per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Cut Diameter:
10mm
Cut Length:
25mm
Shank Diameter:
10mm
Coating/Finish Type:
AlTiN
Machine Type:
Finish Machining, Roughing Machining
Application:
Carbon Steel Alloy Steel (<35HRC),Alloy Steel (35-48HRC),Stainless Steels,Gray Cast Iron, Ductile Cast Iron (<32HRC)
Tolerance:
0.010mm~0.030mm
Customize:
Available
Packaging Details:
Plastic Box
Highlight:

4T 4flutes End Mill

,

Gray Cast Iron End Mill

,

10*25*10*75*4T End Mill

Product Description

10*25*10*75*4T 4flutes End Mill AlTiN Coating For Alloy Steel, Hardened Steel,Gray Cast Iron, Ductile Cast Iron




Product Description:

This 4-flute solid carbide end mill is designed for high-efficiency machining of tough materials including alloy steel, hardened steel, gray cast iron, and ductile cast iron. With a robust geometry and advanced AlTiN (Aluminum Titanium Nitride) coating, it offers exceptional heat resistance, wear protection, and extended tool life.


Key Features:

  • Unequal spiral design, good seismic performance, suitable for dynamic milling
  • Adopting nano composite coating for greater wear resistance

Product Specifications:

Tool Type Solid Carbide End Mill
Material
Cobalt content 10%, grain size 0.8 μ m, HRA91.5-92
Coating AlTiN
Number of Flutes 4
Cutting Diameter (D) 10 mm
Flute Length (L1) 25mm
Shank Diameter 10 mm
Overall Length (L) 75 mm
Helix Angle 35°-37°
Application Carbon steel alloy steel (<35HRC),Alloy Steel (35-48HRC),Stainless Steels,Gray Cast iron, Ductile Cast Iron (<32HRC)
Cooling Method Air Cooling





10*25*10*75*4T 4flutes End Mill AlTiN Coating For Alloy Steel, Hardened Steel,Gray Cast Iron, Ductile Cast Iron 0


Model		  Specifications
(OEM and customization is acceptable.)
Flutes
Spiral Angle
Groove Profile
Coating
Cut Dia
D		 Cut Length
Lc		 Shank Dia
 d		 Overall Length L
3*8*3*50*4T 3  8  3  50  4  35°-37° U slot  AlTiN
3*12*3*50*4T 3  12  3  50  4  35°-37° U slot  AlTiN
3*15*3*50*4T 3  15  3  50  4  35°-37° U slot  AlTiN
4*10*4*50*4T 4  10  4  50  4  35°-37° U slot  AlTiN
4*16*4*50*4T 4  16  4  50  4  35°-37° U slot  AlTiN
4*20*4*75*4T 4  20  4  75  4  35°-37° U slot  AlTiN
6*15*6*50*4T 6  15  6  50  4  35°-37° U slot  AlTiN
6*24*6*75*4T 6  24  6  75  4  35°-37° U slot  AlTiN
6*30*6*75*4T 6  30  6  75  4  35°-37° U slot  AlTiN
8*20*8*60*4T 8  20  8  60  4  35°-37° U slot  AlTiN
8*32*8*75*4T 8  32  8  75  4  35°-37° U slot  AlTiN
8*40*8*100*4T 8  40  8  100  4  35°-37° U slot  AlTiN
10*25*10*75*4T 10  25  10  75  4  35°-37° U slot  AlTiN
10*40*10*100*4T 10  40  10  100  4  35°-37° U slot  AlTiN
10*50*10*100*4T 10  50  10  100  4  35°-37° U slot  AlTiN
12*30*12*75*4T 12  32  12  75  4  35°-37° U slot  AlTiN
12*48*12*100*4T 12  48  12  100  4  35°-37° U slot  AlTiN
12*60*12*100*4T 12  60  12  100  4  35°-37° U slot  AlTiN
14*45*14*100*4T 14  45  14  100  4  35°-37° U slot  AlTiN
14*70*14*150*4T 14  70  14  150  4  35°-37° U slot  AlTiN
16*45*16*100*4T 16  45  16  100  4  35°-37° U slot  AlTiN
16*64*16*150*4T 16  64  16  150  4  35°-37° U slot  AlTiN
16*80*16*150*4T 16  80  16  150  4  35°-37° U slot  AlTiN
18*45*18*100*4T 18  45  18  100  4  35°-37° U slot  AlTiN
18*90*18*150*4T 18  90  18  150  4  35°-37° U slot  AlTiN
20*45*20*100*4T 20  45  20  100  4  35°-37° U slot  AlTiN
20*80*20*150*4T 20  80  20  150  4  35°-37° U slot  AlTiN
20*100*20*200*4T 20  100  20  200  4  35°-37° U slot  AlTiN



Workpiece Material and processing parameters

Workpiece Material ap ae vc
m/min		 fz
mm/z
Carbon steel alloy steel (<35HRC)
 ap≤1.5D ap≤0.15D 180 0.0085D
Alloy Steel (35-48HRC) ap≤1D ae≤0.12D 140 0.0075D
Stainless Steels ap≤1.5D ae≤0.15D 140 0.0075D
Gray Cast iron, Ductile Cast Iron (<32HRC) ap≤1.5D ae≤0.15D 160 0.0075D
