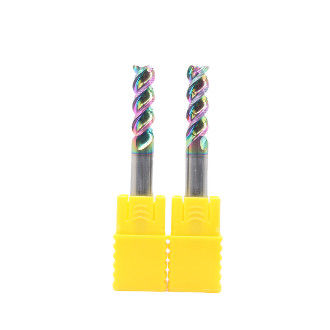

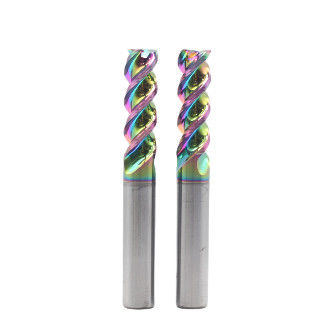

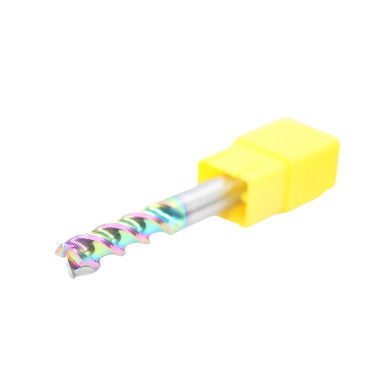

10mm Shank Diameter 10*30*10*75*3T 3Flutes DLC Coating Solid Carbide Dynamic End Mill for Cast Aluminum Alloy si 12%

10mm Shank Diameter 10*30*10*75*3T 3Flutes DLC Coating Solid Carbide Dynamic End Mill for Cast Aluminum Alloy si 12%
10mm Shank Diameter 10*30*10*75*3T 3Flutes DLC Coating Solid Carbide Dynamic End Mill for Cast Aluminum Alloy si 12%
video play

Large Image :  10mm Shank Diameter 10*30*10*75*3T 3Flutes DLC Coating Solid Carbide Dynamic End Mill for Cast Aluminum Alloy si 12%

Product Details:
Place of Origin: China
Brand Name: BABOS
Model Number: 10*30*10*75-3T DLC
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Plastic Box
Delivery Time: 3 days for standard products, 1-2weeks for custom products.
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 20,000PCS per month
Contact Now
Detailed Product Description
Cut Diameter: 10mm Cut Length: 30mm
Shank Diameter: 10mm Overall Length: 70mm
Machine Type: Finish Machining, Roughing Machining Application: Forged Aluminum Alloy, Cast Aluminum Alloy
Tolerance: 0.010mm~0.030mm Customize: Available
Highlight:

10mm Shank Diameter End Mill

,

Cast Aluminum Alloy End Mill

,

10*30*10*75*3T End Mill

10*25*10*75*3T 3Flutes DLC Coating Solid Carbide End Mill for Forged Aluminum Alloy, Cast Aluminum Alloy (si<12%)




Product Description:

This high-efficiency 3-flute solid carbide end mill is specifically engineered for machining forged and cast aluminum alloys with silicon content under 12%. Featuring a Diamond-Like Carbon (DLC) coating, it offers superior surface hardness, ultra-low friction, and exceptional wear resistance.


Key Features:

  • U-groove design, larger chip space, can achieve higher processing efficiency
  • Polishing inside the groove effectively reduces build-up edge and ensures smooth chip removal
  • DLC coating, combined with low friction coefficient and high coating hardness, significantly improves tool life



Product Specifications:

Tool Type Solid Carbide End Mill
Material Cobalt content 10%, grain size 0.8 μ m, HRA91.5-92
Coating DLC (Diamond-Like Carbon)
Number of Flutes 3
Cutting Diameter (D) 10 mm
Flute Length (L1) 30mm
Shank Diameter 10 mm
Overall Length (L) 75 mm
Helix Angle 50°
Application Forged Aluminum Alloy, Cast Aluminum Alloy (si<12%)
Cooling Method Dry or Air Blast Preferred



10mm Shank Diameter 10*30*10*75*3T 3Flutes DLC Coating Solid Carbide Dynamic End Mill for Cast Aluminum Alloy si 12% 0



Model		  Specifications
(OEM and customization is acceptable.)
Flutes
Spiral Angle
Groove Profile
    Coating
Cut Dia
D		 Cut Length
Lc		 Shank Dia
 d		 Overall Length L
3*9*3*50*3T 3  9  3  50  3  50° U slot DLC
3*12*3*50*3T 3  12  3  50  3  50° U slot DLC
3*15*3*50*3T 3  15  3  50  3  50° U slot DLC
4*12*4*50*3T 4  12  4  50  3  50° U slot DLC
4*16*4*50*3T 4  16  4  50  3  50° U slot DLC
4*20*4*75*3T 4  20  4  75  3  50° U slot DLC
6*18*6*50*3T 6  18  6  50  3  50° U slot DLC
6*24*6*75*3T 6  24  6  75  3  50° U slot DLC
6*30*6*75*3T 6  30  6  75  3  50° U slot DLC
8*24*8*60*3T 8  24  8  60  3  50° U slot DLC
8*32*8*75*3T 8  32  8  75  3  50° U slot DLC
8*40*8*100*3T 8  40  8  100  3  50° U slot DLC
10*30*10*75*3T 10  30  10  75  3  50° U slot DLC
10*40*10*100*3T 10  40  10  100  3  50° U slot DLC
10*50*10*100*3T 10  50  10  100  3  50° U slot DLC
12*36*12*75*3T 12  36  12  75  3  50° U slot DLC
12*48*12*100*3T 12  48  12  100  3  50° U slot DLC
12*60*12*100*3T 12  60  12  100  3  50° U slot DLC
14*45*14*100*3T 14  45  14  100  3  50° U slot DLC
14*70*14*150*3T 14  70  14  150  3  50° U slot DLC
16*45*16*100*3T 16  45  16  100  3  50° U slot DLC
16*64*16*150*3T 16  64  16  150  3  50° U slot DLC
16*80*16*150*3T 16  80  16  150  3  50° U slot DLC
18*45*18*100*3T 18  45  18  100  3  50° U slot DLC
18*90*18*150*3T 18  90  18  150  3  50° U slot DLC
20*45*20*100*3T 20  45  20  100  3  50° U slot DLC
20*80*20*150*3T 20  80  20  150  3  50° U slot DLC
20*100*20*200*3T 20  100  20  200  3  50° U slot DLC





Workpiece Material and processing parameters

Workpiece Material ap ae vc
m/min		 fz
mm/z
Forged Aluminum Alloy, Cast Aluminum Alloy (si<12%) ap≤1.5D ae≤0.2D 150  0.015D
