10mm Cut Diameter 4flutes Milling Cutter For Alloy Steel Hardened Steel 45-65HRC ALTiN TiSiN Coating For Customization

10mm Cut Diameter 4flutes Milling Cutter For Alloy Steel Hardened Steel 45-65HRC ALTiN TiSiN Coating For Customization
10mm Cut Diameter 4flutes Milling Cutter For Alloy Steel Hardened Steel 45-65HRC ALTiN TiSiN Coating For Customization
video play

Large Image :  10mm Cut Diameter 4flutes Milling Cutter For Alloy Steel Hardened Steel 45-65HRC ALTiN TiSiN Coating For Customization

Product Details:
Place of Origin: China
Brand Name: BABOS
Model Number: 10*25*10*75-4T
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Plastic Box
Delivery Time: 3 days for standard products, 1-2weeks for custom products.
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 20,000PCS per month
Contact Now
Detailed Product Description
Cut Diameter: 10mm Cut Length: 25mm
Shank Diameter: 10mm Coating/Finish Type: ALTiN+TiSiN
Machine Type: Finish Machining, Roughing Machining Application: Alloy Steel, Hardened Steel (45-65HRC)
Tolerance: 0.010mm~0.030mm Customize: Available
Highlight:

ALTiN TiSiN Coating Milling Cutter

,

10mm Milling Cutter

,

45-65HRC Milling Cutter

10*75*4T 4flutes Milling Cutter For Alloy Steel, Hardened Steel (45-65HRC) ALTiN+TiSiN Coating




Product Description:

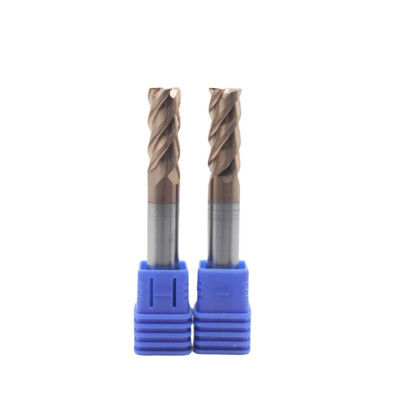

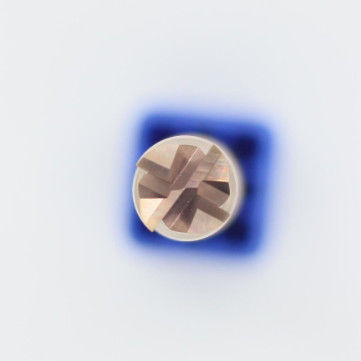

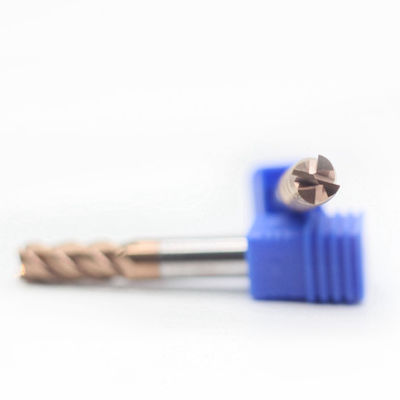

This premium 4-flute solid carbide end mill is engineered for high-performance machining of alloy steel and hardened steel with hardness levels ranging from 45 to 65 HRC. Its geometry and coating ensure excellent wear resistance, extended tool life, and superior cutting performance.


Key Features:

  • Strong Cutting Edge: The robust cutting edge design effectively handles the high cutting force demands of hardened steel.
  • High Rigidity: Designed with a thick core, the tool offers excellent rigidity for more stable cutting.
  • Multi-Flute Design: Tools with a diameter of 12mm and above feature a multi-flute design, increasing tool life by 50%.
  • Wear-Resistant Coating: Bronze nano-coating provides excellent wear resistance, specifically designed for high-hardness steel.

Product Specifications:

Tool Type Solid Carbide End Mill
Material Cobalt content 9%, grain size 0.3-0.4 μ m, HRA93.5-94
Coating ALTiN+TiSiN
Number of Flutes 4/6
Cutting Diameter (D) 10 mm
Flute Length (L1) 25mm
Shank Diameter 10 mm
Overall Length (L) 75 mm
Helix Angle 45°
Application Alloy Steel, Hardened Steel (45-65HRC)
Cooling Method Dry or Air Blast Preferred





10mm Cut Diameter 4flutes Milling Cutter For Alloy Steel Hardened Steel 45-65HRC ALTiN TiSiN Coating For Customization 0

Type  Specifications

*OEM and customization is acceptable.

 Flutes Spiral Angle Groove Profile        Coating
Cut Dia
D		 Cut Length
Lc		 Shank Dia
 d

Overall Length

L
3*8*3*50*4T/6T 3  8  3  50  4/6 45° Flat groove ALTiN+TiSiN
3*12*3*50*4T/6T 3  12  3  50  4/6 45° Flat groove ALTiN+TiSiN
3*15*3*50*4T/6T 3  15  3  50  4/6 45° Flat groove ALTiN+TiSiN
4*10*4*50*4T/6T 4  10  4  50  4/6 45° Flat groove ALTiN+TiSiN
4*16*4*50*4T/6T 4  16  4  50  4/6 45° Flat groove ALTiN+TiSiN
4*20*4*75*4T/6T 4  20  4  75  4/6 45° Flat groove ALTiN+TiSiN
6*15*6*50*4T/6T 6  15  6  50  4/6 45° Flat groove ALTiN+TiSiN
6*24*6*75*4T/6T 6  24  6  75  4/6 45° Flat groove ALTiN+TiSiN
6*30*6*75*4T/6T 6  30  6  75  4/6 45° Flat groove ALTiN+TiSiN
8*20*8*60*4T/6T 8  20  8  60  4/6 45° Flat groove ALTiN+TiSiN
8*32*8*75*4T/6T 8  32  8  75  4/6 45° Flat groove ALTiN+TiSiN
8*40*8*100*4T/6T 8  40  8  100  4/6 45° Flat groove ALTiN+TiSiN
10*25*10*75*4T/6T 10  25  10  75  4/6 45° Flat groove ALTiN+TiSiN
10*40*10*100*4T/6T 10  40  10  100  4/6 45° Flat groove ALTiN+TiSiN
10*50*10*100*4T/6T 10  50  10  100  4/6 45° Flat groove ALTiN+TiSiN
12*30*12*75*4T/6T 12  32  12  75  4/6 45° Flat groove ALTiN+TiSiN
12*48*12*100*4T/6T 12  48  12  100  4/6 45° Flat groove ALTiN+TiSiN
12*60*12*100*4T/6T 12  60  12  100  4/6 45° Flat groove ALTiN+TiSiN
14*45*14*100*4T/6T 14  45  14  100  4/6 45° Flat groove ALTiN+TiSiN
14*70*14*150*4T/6T 14  70  14  150  4/6 45° Flat groove ALTiN+TiSiN
16*45*16*100*4T/6T 16  45  16  100  4/6 45° Flat groove ALTiN+TiSiN
16*64*16*150*4T/6T 16  64  16  150  4/6 45° Flat groove ALTiN+TiSiN
16*80*16*150*4T/6T 16  80  16  150  4/6 45° Flat groove ALTiN+TiSiN
18*45*18*100*4T/6T 18  45  18  100  4/6 45° Flat groove ALTiN+TiSiN
18*90*18*150*4T/6T 18  90  18  150  4/6 45° Flat groove ALTiN+TiSiN
20*45*20*100*4T/6T 20  45  20  100  4/6 45°     Flat groove ALTiN+TiSiN
20*80*20*150*4T/6T 20  80  20  150  4/6 45° Flat groove ALTiN+TiSiN
20*100*20*200*4T/6T 20  100  20  200  4/6 45° Flat groove ALTiN+TiSiN



Workpiece Material and processing parameters

Workpiece Material ap ae vc
m/min		 fz
mm/z
Alloy Steel, Hardened Steel (45-65HRC) ap≤1.5D ae≤0.02D 150 0.007D
