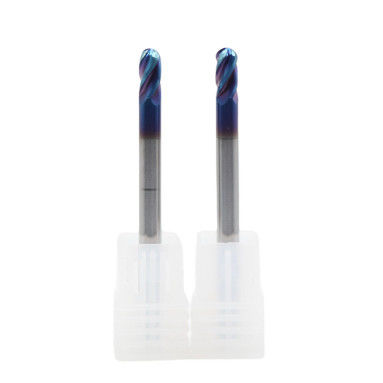

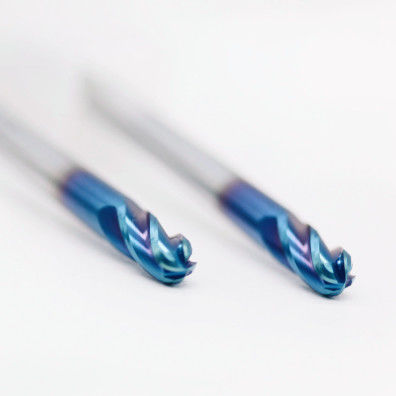

Roughing Machining 4 Flutes HRC 65 R2*4*8*4*75 TiAISiN Coated Carbide Ball Nose End Mill

Roughing Machining 4 Flutes HRC 65 R2*4*8*4*75 TiAISiN Coated Carbide Ball Nose End Mill
Roughing Machining 4 Flutes HRC 65 R2*4*8*4*75 TiAISiN Coated Carbide Ball Nose End Mill
video play

Large Image :  Roughing Machining 4 Flutes HRC 65 R2*4*8*4*75 TiAISiN Coated Carbide Ball Nose End Mill

Product Details:
Place of Origin: China
Brand Name: BABOS
Model Number: HRC65 R2*4*8*4*75
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Plastic Box
Delivery Time: 3 days for standard products, 1-2weeks for custom products.
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 20,000PCS per month
Contact Now
Detailed Product Description
Cut Diameter: 18mm Shank Diameter: 36mm
Overall Length: 18mm Coating/Finish Type: TiAISiN
Machine Type: Finish Machining, Roughing Machining Application: Milling And Cutting Of Carbon Steel, Malleable Cast Iron, Alloy Steel, Stainless Steel, Etc.
Tolerance: 0.020mm~0.050mm Customize: Available
Highlight:

TiAISiN Coated Ball Nose End Mill

,

4 Flutes Ball Nose End Mill

,

HRC 65 Ball Nose End Mill

4 Flutes HRC 65 R2*4*8*4*75 TiAISiN Coated Carbide Ball Nose End Mill

Product Description:

The R2×4×8×4×75 Ball Nose End Mill is a high-precision cutting tool designed for advanced machining tasks requiring tight tolerances and superior surface finishes. Manufactured from ultra-fine grain solid carbide and coated with TiAlSiN (Titanium Aluminum Silicon Nitride), this tool excels in high-speed dry or wet machining of hardened materials up to HRC65.

Its 2 mm ball nose radius (R2) combined with a 4-flute configuration allows for smooth cutting action, reduced vibration, and excellent chip evacuation — ideal for mold making, 3D profiling, and finishing operations.



Specifications:

  • Ball Nose Radius (R): 2 mm
  • Cutting Diameter: 4 mm (2R)
  • Cutting Length: 8 mm
  • Shank Diameter: 4 mm
  • Overall Length: 75 mm
  • Number of Flutes: 4
  • Material: Solid Tungsten Carbide
  • Hardness Capability: Up to HRC 65
  • Coating: TiAlSiN (Titanium Aluminum Silicon Nitride)




 Roughing Machining 4 Flutes HRC 65 R2*4*8*4*75 TiAISiN Coated Carbide Ball Nose End Mill 0


2 Flutes Ball Nose End Mill Specifications
(For Carbon Steel, Alloy Steel, Cast Iron)
Sizes Cut Diameter
D		 Cut Length
Lc		 Shank Diameter
d		 Overall Length
L		 Flutes No.
R1.5*6*3*50 3 6 3 50 4
R1.5*6*3*75 3 6 3 75 4
R1.5*6*3*100 3 6 3 100 4
R0.5*2*4*50 1 2 4 50 4
R0.75*3*4*50 1.5 3 4 50 4
R1*4*4*50 2 4 4 50 4
R1.25*5*4*50 2.5 5 4 50 4
R1.5*6*4*50 3 6 4 50 4
R1.75*7*4*50 3.5 7 4 50 4
R2*8*4*50 4 8 4 50 4
R2*8*4*75 4 8 4 75 4
R2*8*4*100 4 8 4 100 4
R0.5*2*4*75 1 2 4 75 4
R0.75*3*4*75 1.5 3 4 75 4
R1*4*4*75 2 4 4 75 4
R1.25*5*4*75 2.5 5 4 75 4
R1.5*6*4*75 3 6 4 75 4
R2.5*10*5*50 5 10 5 50 4
R2.5*10*5*75 5 10 5 75 4
R2.5*10*5*100 5 10 5 100 4
R0.5*2*6*50 1 2 6 50 4
R0.75*3*6*50 1.5 3 6 50 4
R1*4*6*50 2 4 6 50 4
R1.25*5*6*50 2.5 5 6 50 4
R1.5*6*6*50 3 6 6 50 4
R2*8*6*50 4 8 6 50 4
R2.5*10*6*50 5 10 6 50 4
R3*12*6*50 6 12 6 50 4
R3*12*6*75 6 12 6 75 4
R3*12*6*100 6 12 6 100 4
R3*12*6*150 6 12 6 150 4
R3.5*14*8*60 7 14 8 60 4
R4*16*8*60 8 16 8 60 4
R4*16*8*75 8 16 8 75 4
R4*16*8*100 8 16 8 100 4
R4*16*8*150 8 16 8 150 4
R4.5*18*10*75 9 18 10 75 4
R5*20*10*75 10 20 10 75 4
R5*20*10*100 10 20 10 100 4
R5*20*10*150 10 20 10 150 4
R5.5*22*12*75 11 22 12 75 4
R6*24*12*75 12 24 12 75 4
R6*24*12*100 12 24 12 100 4
R6*24*12*150 12 24 12 150 4
R7*28*14*80 14 28 14 80 4
R7*28*14*100 14 28 14 100 4
R7*28*14*150 14 28 14 150 4
R8*32*16*100 16 32 16 100 4
R8*32*16*150 16 32 16 150 4
R9*36*18*100 18 36 18 100 4
R9*36*18*150 18 36 18 150 4
R10*40*20*100 20 40 20 100 4
R10*40*20*150 20 40 20 150 4

Applications:

  • Mold & Die Making

Ideal for 3D profiling and cavity machining in injection molds, die-casting dies, and press tools.

Excellent for finishing intricate surfaces and fine details.


  • 3D Contouring & Surface Machining

Used for smooth surface machining in complex geometries such as:

Turbine blades

Automotive body components

Aerospace structural parts


  • Hard Material Machining

Designed to machine materials up to HRC 65 such as: Hardened steel, Tool steel, Stainless steel, Alloy steel, Titanium alloys


  • High-Speed Machining (HSM)

Suitable for high-speed CNC applications due to: TiAlSiN coating (resists heat and wear) and Excellent chip evacuation with 4-flute design


  • Precision Finishing

Perfect for final finishing passes requiring high dimensional accuracy and superior surface finish.


  • Dry or Minimum Quantity Lubrication (MQL) Machining

The TiAlSiN coating allows for efficient dry cutting or with minimal coolant use, reducing cost and improving tool life.
