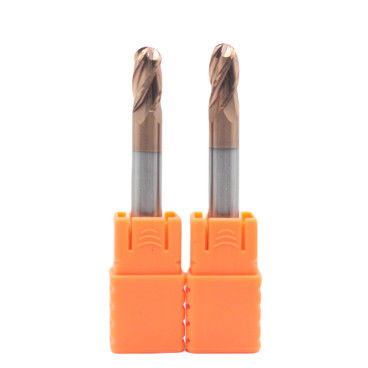

8mm Dia R4*8*16*8*60 4Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron

8mm Dia R4*8*16*8*60 4Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron
8mm Dia R4*8*16*8*60 4Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron
video play

Large Image :  8mm Dia R4*8*16*8*60 4Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron

Product Details:
Place of Origin: China
Brand Name: BABOS
Model Number: R4*8*16*8*60-4F
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Plastic Box
Delivery Time: 3 days for standard products, 1-2weeks for custom products.
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 20,000PCS per month
Contact Now
Detailed Product Description
Cut Diameter: 8mm Cut Length: 16mm
Shank Diameter: 8mm Overall Length: 60mm
Coating/Finish Type: TiAISiN Machine Type: Finish Machining, Roughing Machining
Application: Milling And Cutting Of Carbon Steel, Malleable Cast Iron, Alloy Steel, Stainless Steel, Etc. Tolerance: -0.015mm~-0.040mm
Customize: Available
Highlight:

R4*8*16*8*60 Carbide Ball Nose End Mill

,

8mm Carbide Ball Nose End Mill

,

4Flutes Carbide Ball Nose End Mill

8mm Dia R4*8*16*8*60 4Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron


Product Description:

The 8mm Diameter R4 Ball Nose End Mill is a high-performance cutting tool engineered for precision 3D contouring, profiling, and surface finishing in complex geometries. Made from ultra-fine grain tungsten carbide, this tool delivers excellent durability and wear resistance, even under high-speed machining conditions.

Featuring a 4 mm corner radius (R4) and 4-flute design, it provides smooth cutting action, superior chip evacuation, and enhanced surface finish. The TiAlSiN (Titanium Aluminum Silicon Nitride) coating ensures exceptional heat resistance and oxidation stability, making it ideal for machining hardened steels, alloys, and difficult materials.



Specifications:

  • Cutting Diameter: 8 mm
  • Ball Nose Radius (R): 4 mm
  • Cutting Length: 16 mm
  • Shank Diameter: 8 mm
  • Overall Length: 60 mm
  • Number of Flutes: 4
  • Material: Solid Tungsten Carbide
  • Coating: TiAlSiN (Titanium Aluminum Silicon Nitride)
  • Tool Type: Ball Nose End Mill


Key Features:

  • High-precision ball nose radius for complex 3D machining
  • 4-flute design for better chip control and surface finish
  • Ultra-hard carbide substrate for extended tool life
  • TiAlSiN coating for superior heat and oxidation resistance
  • Suitable for high-speed machining of hardened steel, alloy steel, stainless steel, etc.



8mm Dia R4*8*16*8*60 4Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron 0


2 Flutes Ball Nose End Mill Specifications
(For Carbon Steel, Alloy Steel, Cast Iron)
Sizes Cut Diameter
D		 Cut Length
Lc		 Shank Diameter
d		 Overall Length
L		 Flutes No.
R1.5*6*3*50 3 6 3 50 4
R1.5*6*3*75 3 6 3 75 4
R1.5*6*3*100 3 6 3 100 4
R0.5*2*4*50 1 2 4 50 4
R0.75*3*4*50 1.5 3 4 50 4
R1*4*4*50 2 4 4 50 4
R1.25*5*4*50 2.5 5 4 50 4
R1.5*6*4*50 3 6 4 50 4
R1.75*7*4*50 3.5 7 4 50 4
R2*8*4*50 4 8 4 50 4
R2*8*4*75 4 8 4 75 4
R2*8*4*100 4 8 4 100 4
R0.5*2*4*75 1 2 4 75 4
R0.75*3*4*75 1.5 3 4 75 4
R1*4*4*75 2 4 4 75 4
R1.25*5*4*75 2.5 5 4 75 4
R1.5*6*4*75 3 6 4 75 4
R2.5*10*5*50 5 10 5 50 4
R2.5*10*5*75 5 10 5 75 4
R2.5*10*5*100 5 10 5 100 4
R0.5*2*6*50 1 2 6 50 4
R0.75*3*6*50 1.5 3 6 50 4
R1*4*6*50 2 4 6 50 4
R1.25*5*6*50 2.5 5 6 50 4
R1.5*6*6*50 3 6 6 50 4
R2*8*6*50 4 8 6 50 4
R2.5*10*6*50 5 10 6 50 4
R3*12*6*50 6 12 6 50 4
R3*12*6*75 6 12 6 75 4
R3*12*6*100 6 12 6 100 4
R3*12*6*150 6 12 6 150 4
R3.5*14*8*60 7 14 8 60 4
R4*16*8*60 8 16 8 60 4
R4*16*8*75 8 16 8 75 4
R4*16*8*100 8 16 8 100 4
R4*16*8*150 8 16 8 150 4
R4.5*18*10*75 9 18 10 75 4
R5*20*10*75 10 20 10 75 4
R5*20*10*100 10 20 10 100 4
R5*20*10*150 10 20 10 150 4
R5.5*22*12*75 11 22 12 75 4
R6*24*12*75 12 24 12 75 4
R6*24*12*100 12 24 12 100 4
R6*24*12*150 12 24 12 150 4
R7*28*14*80 14 28 14 80 4
R7*28*14*100 14 28 14 100 4
R7*28*14*150 14 28 14 150 4
R8*32*16*100 16 32 16 100 4
R8*32*16*150 16 32 16 150 4
R9*36*18*100 18 36 18 100 4
R9*36*18*150 18 36 18 150 4
R10*40*20*100 20 40 20 100 4
R10*40*20*150 20 40 20 150 4
