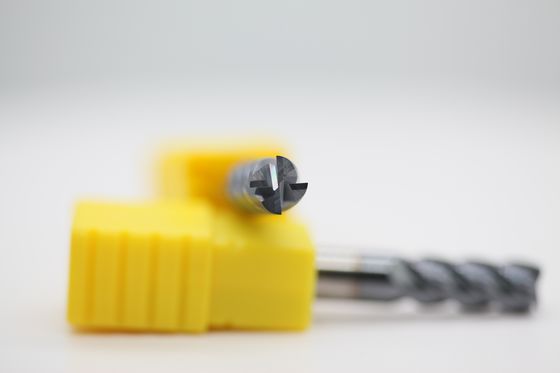

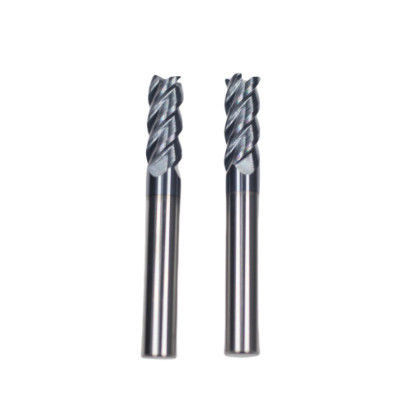

20mm Dia 20*45*20*100 AITiN Black Nano Coating 4 Flute Carbide Square End Mill For Steel Cast Iron

20mm Dia 20*45*20*100 AITiN Black Nano Coating 4 Flute Carbide Square End Mill For Steel Cast Iron
20mm Dia 20*45*20*100 AITiN Black Nano Coating 4 Flute Carbide Square End Mill For Steel Cast Iron
video play

Large Image :  20mm Dia 20*45*20*100 AITiN Black Nano Coating 4 Flute Carbide Square End Mill For Steel Cast Iron

Product Details:
Place of Origin: China
Brand Name: BABOS
Model Number: 20*45*20*100-4F
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Plastic Box
Delivery Time: 3 days for standard products, 1-2weeks for custom products.
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 20,000PCS per month
Contact Now
Detailed Product Description
Cut Diameter: 20mm Cut Length: 45mm
Overall Length: 100mm Flute Number: 4
Helix Angle: 35° Or Customized Coating/Finish Type: TiAISiN
Sample Order: Accepted Customize: Available
Highlight:

20*45*20*100 Carbide Square End Mill

20mm Dia 20*45*20*100 AITiN Black Nano Coating 4 Flute Carbide Square End Mill For Steel Cast Iron

Product Description:

This 20mm diameter 4-flute square end mill is designed for high-precision milling in steel, cast iron, and hardened materials. Featuring an AlTiN Black Nano coating, this tool offers exceptional heat resistance, wear resistance, and extended tool life, making it ideal for high-speed CNC machining. Its 4-flute design ensures smooth cutting performance, excellent chip evacuation, and superior surface finish.


Technical Specifications:

  • Flutes: 4
  • Cutting Diameter: 20mm
  • Cutting Length: 45mm
  • Shank Diameter: 20mm
  • Overall Length: 100mm
  • Material: Solid Carbide
  • Coating: AlTiN Black Nano (Aluminum Titanium Nitride)
  • Application: Suitable for steel, cast iron, and hardened materials



20mm Dia 20*45*20*100 AITiN Black Nano Coating 4 Flute Carbide Square End Mill For Steel Cast Iron 0


 2/4 Flutes Flat End Mill Specifications
(For Carbon Steel, Alloy Steel, Cast Iron)
Sizes Cut Diameter
D		 Cut Length
Lc		 Shank Diameter
d		 Overall Length
L		 Flutes No.
3*8*3*50 3 8 3 50 2 / 4
3*12*3*75 3 12 3 75 2 / 4
3*15*3*100 3 15 3 100 2 / 4
1*3*4*50 1 3 4 50 2 / 4
1*3*4*75 1 3 4 75 4
1.5*4*4*50 1.5 4 4 50 2 / 4
1.5*4*4*75 1.5 4 4 75 4
2*5*4*50 2 5 4 50 2 / 4
2*5*4*75 2 5 4 75 4
2.5*7*4*50 2.5 7 4 50 2 / 4
2.5*7*4*75 2.5 7 4 75 4
3*8*4*50 3 8 4 50 2 / 4
3*8*4*75 3 8 4 75 4
3.5*10*4*50 3.5 10 4 50 2 / 4
4*10*4*50 4 10 4 50 2 / 4
4*16*4*75 4 16 4 75 2 / 4
4*20*4*100 4 20 4 100 2 / 4
5*13*5*50 5 13 5 50 2 / 4
5*20*5*75 5 20 5 75 2 / 4
5*25*5*100 5 25 5 100 2 / 4
1*3*6*50 1 3 6 50 2 / 4
1.5*4*6*50 1.5 4 6 50 2 / 4
2*5*6*50 2 5 6 50 2 / 4
2.5*7*6*50 2.5 7 6 50 2 / 4
3*8*6*50 3 8 6 50 2 / 4
3.5*10*6*50 3.5 10 6 50 2 / 4
4*10*6*50 4 10 6 50 2 / 4
4*12*4*50 4 12 4 50 4
4.5*12*6*50 4.5 12 6 50 2 / 4
5*13*6*50 5 13 6 50 2 / 4
5.5*15*6*50 5.5 15 6 50 2 / 4
6*15*6*50 6 15 6 50 2 / 4
6*18*6*50 6 18 6 50 4
6*25*6*75 6 25 6 75 2 / 4
6*30*6*100 6 30 6 100 2 / 4
6*40*6*150 6 40 6 150 2 / 4
7*18*8*60 7 18 8 60 2 / 4
8*20*8*60 8 20 8 60 2 / 4
8*24*8*60 8 24 8 60 4
8*28*8*75 8 28 8 75 2 / 4
8*35*8*100 8 35 8 100 2 / 4
8*50*8*150 8 50 8 150 2 / 4
9*23*10*75 9 23 10 75 2 / 4
10*25*10*75 10 25 10 75 2 / 4
10*30*10*75 10 30 10 75 4
10*40*10*100 10 40 10 100 2 / 4
10*50*10*100 10 50 10 100 4
10*50*10*150 10 50 10 150 2 / 4
11*28*12*75 11 28 12 75 2 / 4
12*30*12*75 12 30 12 75 2 / 4
12*36*12*75 12 36 12 75 4
12*45*12*100 12 45 12 100 2 / 4
12*50*10*100 12 50 12 100 4
12*60*12*150 12 60 12 150 2 / 4
14*35*14*80 14 35 14 80 2 / 4
13*45*14*100 13 45 14 100 2 / 4
14*45*14*100 14 45 14 100 2 / 4
14*60*14*150 14 60 14 150 2 / 4
15*45*16*100 15 45 16 100 2 / 4
16*45*16*100 16 45 16 100 2 / 4
16*60*16*150 16 60 16 150 2 / 4
18*45*18*100 18 45 18 100 2 / 4
18*70*18*150 18 70 18 150 2 / 4
20*45*20*100 20 45 20 100 2 / 4
20*70*20*150 20 70 20 150 2 / 4


Suitable Materials:

✅ Steel – Including low, medium, and high carbon steel, as well as alloy steel.
✅ Cast Iron – Grey cast iron, ductile iron, and other iron-based materials.
✅ Hardened Materials – Works efficiently on materials with high hardness due to its wear-resistant coating.


Applications:
