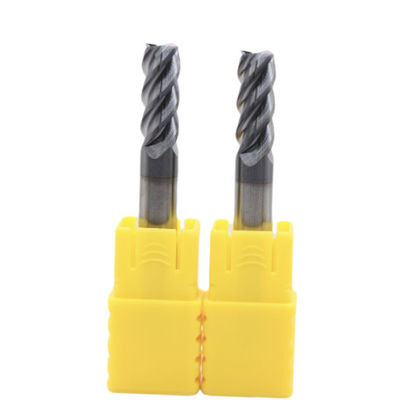

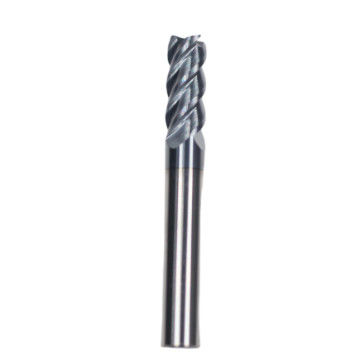

16mm Dia 16*45*16*100 AITiN Black Nano Coating 4 Flute Carbide Square End Mill For Steel Cast Iron
Product Description:
This 16mm diameter 4-flute square end mill is designed for high-precision milling in steel, cast iron, and hardened materials. Featuring an AlTiN Black Nano coating, this tool offers exceptional heat resistance, wear resistance, and extended tool life, making it ideal for high-speed CNC machining. Its 4-flute design ensures smooth cutting performance, excellent chip evacuation, and superior surface finish.
Technical Specifications:
- Flutes: 4
- Cutting Diameter: 16mm
- Cutting Length: 45mm
- Shank Diameter: 16mm
- Overall Length: 100mm
- Material: Solid Carbide
- Coating: AlTiN Black Nano (Aluminum Titanium Nitride)
- Application: Suitable for steel, cast iron, and hardened materials
2/4 Flutes Flat End Mill Specifications
(For Carbon Steel, Alloy Steel, Cast Iron) |
| Sizes |
Cut Diameter
D |
Cut Length
Lc |
Shank Diameter
d |
Overall Length
L |
Flutes No. |
| 3*8*3*50 |
3 |
8 |
3 |
50 |
2 / 4 |
| 3*12*3*75 |
3 |
12 |
3 |
75 |
2 / 4 |
| 3*15*3*100 |
3 |
15 |
3 |
100 |
2 / 4 |
| 1*3*4*50 |
1 |
3 |
4 |
50 |
2 / 4 |
| 1*3*4*75 |
1 |
3 |
4 |
75 |
4 |
| 1.5*4*4*50 |
1.5 |
4 |
4 |
50 |
2 / 4 |
| 1.5*4*4*75 |
1.5 |
4 |
4 |
75 |
4 |
| 2*5*4*50 |
2 |
5 |
4 |
50 |
2 / 4 |
| 2*5*4*75 |
2 |
5 |
4 |
75 |
4 |
| 2.5*7*4*50 |
2.5 |
7 |
4 |
50 |
2 / 4 |
| 2.5*7*4*75 |
2.5 |
7 |
4 |
75 |
4 |
| 3*8*4*50 |
3 |
8 |
4 |
50 |
2 / 4 |
| 3*8*4*75 |
3 |
8 |
4 |
75 |
4 |
| 3.5*10*4*50 |
3.5 |
10 |
4 |
50 |
2 / 4 |
| 4*10*4*50 |
4 |
10 |
4 |
50 |
2 / 4 |
| 4*16*4*75 |
4 |
16 |
4 |
75 |
2 / 4 |
| 4*20*4*100 |
4 |
20 |
4 |
100 |
2 / 4 |
| 5*13*5*50 |
5 |
13 |
5 |
50 |
2 / 4 |
| 5*20*5*75 |
5 |
20 |
5 |
75 |
2 / 4 |
| 5*25*5*100 |
5 |
25 |
5 |
100 |
2 / 4 |
| 1*3*6*50 |
1 |
3 |
6 |
50 |
2 / 4 |
| 1.5*4*6*50 |
1.5 |
4 |
6 |
50 |
2 / 4 |
| 2*5*6*50 |
2 |
5 |
6 |
50 |
2 / 4 |
| 2.5*7*6*50 |
2.5 |
7 |
6 |
50 |
2 / 4 |
| 3*8*6*50 |
3 |
8 |
6 |
50 |
2 / 4 |
| 3.5*10*6*50 |
3.5 |
10 |
6 |
50 |
2 / 4 |
| 4*10*6*50 |
4 |
10 |
6 |
50 |
2 / 4 |
| 4*12*4*50 |
4 |
12 |
4 |
50 |
4 |
| 4.5*12*6*50 |
4.5 |
12 |
6 |
50 |
2 / 4 |
| 5*13*6*50 |
5 |
13 |
6 |
50 |
2 / 4 |
| 5.5*15*6*50 |
5.5 |
15 |
6 |
50 |
2 / 4 |
| 6*15*6*50 |
6 |
15 |
6 |
50 |
2 / 4 |
| 6*18*6*50 |
6 |
18 |
6 |
50 |
4 |
| 6*25*6*75 |
6 |
25 |
6 |
75 |
2 / 4 |
| 6*30*6*100 |
6 |
30 |
6 |
100 |
2 / 4 |
| 6*40*6*150 |
6 |
40 |
6 |
150 |
2 / 4 |
| 7*18*8*60 |
7 |
18 |
8 |
60 |
2 / 4 |
| 8*20*8*60 |
8 |
20 |
8 |
60 |
2 / 4 |
| 8*24*8*60 |
8 |
24 |
8 |
60 |
4 |
| 8*28*8*75 |
8 |
28 |
8 |
75 |
2 / 4 |
| 8*35*8*100 |
8 |
35 |
8 |
100 |
2 / 4 |
| 8*50*8*150 |
8 |
50 |
8 |
150 |
2 / 4 |
| 9*23*10*75 |
9 |
23 |
10 |
75 |
2 / 4 |
| 10*25*10*75 |
10 |
25 |
10 |
75 |
2 / 4 |
| 10*30*10*75 |
10 |
30 |
10 |
75 |
4 |
| 10*40*10*100 |
10 |
40 |
10 |
100 |
2 / 4 |
| 10*50*10*100 |
10 |
50 |
10 |
100 |
4 |
| 10*50*10*150 |
10 |
50 |
10 |
150 |
2 / 4 |
| 11*28*12*75 |
11 |
28 |
12 |
75 |
2 / 4 |
| 12*30*12*75 |
12 |
30 |
12 |
75 |
2 / 4 |
| 12*36*12*75 |
12 |
36 |
12 |
75 |
4 |
| 12*45*12*100 |
12 |
45 |
12 |
100 |
2 / 4 |
| 12*50*10*100 |
12 |
50 |
12 |
100 |
4 |
| 12*60*12*150 |
12 |
60 |
12 |
150 |
2 / 4 |
| 14*35*14*80 |
14 |
35 |
14 |
80 |
2 / 4 |
| 13*45*14*100 |
13 |
45 |
14 |
100 |
2 / 4 |
| 14*45*14*100 |
14 |
45 |
14 |
100 |
2 / 4 |
| 14*60*14*150 |
14 |
60 |
14 |
150 |
2 / 4 |
| 15*45*16*100 |
15 |
45 |
16 |
100 |
2 / 4 |
| 16*45*16*100 |
16 |
45 |
16 |
100 |
2 / 4 |
| 16*60*16*150 |
16 |
60 |
16 |
150 |
2 / 4 |
| 18*45*18*100 |
18 |
45 |
18 |
100 |
2 / 4 |
| 18*70*18*150 |
18 |
70 |
18 |
150 |
2 / 4 |
| 20*45*20*100 |
20 |
45 |
20 |
100 |
2 / 4 |
| 20*70*20*150 |
20 |
70 |
20 |
150 |
2 / 4 |
Packaging and Shipping:
• Packaging:Typically packaged in plastic pipes or boxes to ensure protection during transit.
• Minimum Order Quantity:Varies by supplier,but generally starts from 10 pieces.
• Delivery Time:Usually within 3-5 days for standard sizes after order confirmation.
Notes:
• Before using the carbide end mill,it is recommended to measure the tool deflection and correct it if the accuracy exceeds 0.01mm.
• The tool's performance can be optimized by adjusting cutting parameters such as speed,feed rate,and cutting depth based on the material being machined.
