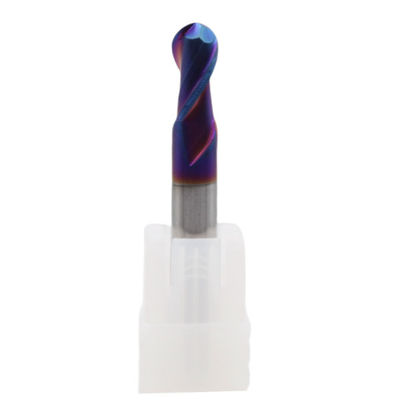

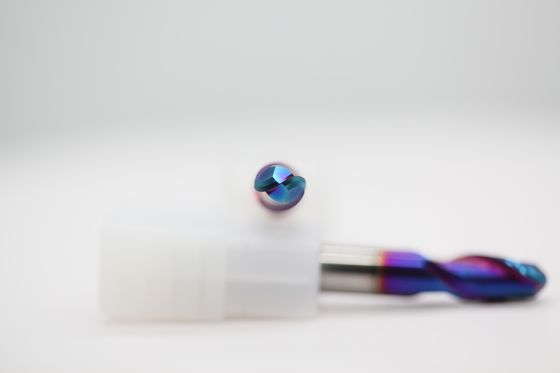

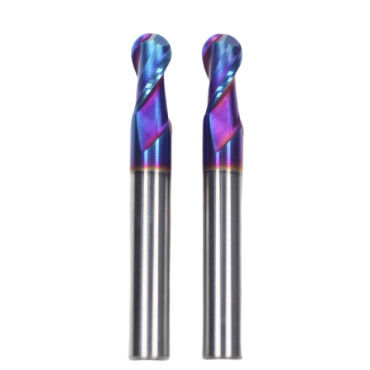

2 Flutes HRC65 R7*14*28*14*80 TiAISiN Coated Carbide Ball Nose End Mill with 28mm Shank Diameter

All Products
Tungsten Carbide Burr (96)
Annular Cutter (28)
Milling Cutter (61)
Circular Saw (4)
Screw Tap (9)
Drill Bit (17)
China CHENGDU BABOS CUTTING TECH CO.,LTD certification
China CHENGDU BABOS CUTTING TECH CO.,LTD certification
I'm Online Chat Now

2 Flutes HRC65 R7*14*28*14*80 TiAISiN Coated Carbide Ball Nose End Mill with 28mm Shank Diameter

2 Flutes HRC65 R7*14*28*14*80 TiAISiN Coated Carbide Ball Nose End Mill with 28mm Shank Diameter
2 Flutes HRC65 R7*14*28*14*80 TiAISiN Coated Carbide Ball Nose End Mill with 28mm Shank Diameter
video play

Large Image :  2 Flutes HRC65 R7*14*28*14*80 TiAISiN Coated Carbide Ball Nose End Mill with 28mm Shank Diameter

Product Details:
Place of Origin: China
Brand Name: BABOS
Model Number: R7*14*28*14*80 2T
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Plastic Box
Delivery Time: 3 days for standard products, 1-2weeks for custom products.
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 20,000PCS per month
Contact Now
Detailed Product Description
Cut Diameter: 14mm Shank Diameter: 28mm
Overall Length: 14mm Coating/Finish Type: TiAISiN
Machine Type: Finish Machining, Roughing Machining Application: Milling And Cutting Of Carbon Steel, Malleable Cast Iron, Alloy Steel, Stainless Steel, Etc.
Tolerance: 0.020mm~0.050mm Customize: Available
Highlight:

HRC65 Ball Nose End Mill

,

2 Flutes Ball Nose End Mill

2 Flutes HRC 65 R7*14*28*14*80 TiAISiN Coated Carbide Ball Nose End Mill

Product Description:

The 2 Flutes HRC 65 R7*14*28*14*80 TiAISiN Coated Carbide Ball Nose End Mill is a high-performance tool designed for precision 3D contouring, deep cavity milling, and mold machining. With an ultra-hard TiAlSiN coating, it offers exceptional wear resistance, heat resistance, and durability, making it ideal for machining hardened steels, alloy steels, and cast iron up to HRC65.

Specifications:

Parameter Details
Hardness HRC65
Cutting Diameter 14mm
Cutting Length 28mm
Shank Diameter 14mm
Overall Length 80mm
Number of Flutes 2 Flutes
End Type Ball Nose End
Material Ultra-Fine Solid Carbide
Coating TiAlSiN (Titanium Aluminum Silicon Nitride)
 2 Flutes HRC65 R7*14*28*14*80 TiAISiN Coated Carbide Ball Nose End Mill with 28mm Shank Diameter 0
HRC 2 Flutes Ball Nose End Mill Specifications
(For Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron)
Sizes Cut Diameter
D		 Cut Length
Lc		 Shank Diameter
d		 Overall Length
L		 Flutes No.
R1.5*6*3*50 3 6 3 50 2
R1.5*6*3*75 3 6 3 75 2
R1.5*6*3*100 3 6 3 100 2
R0.5*2*4*50 1 2 4 50 2
R0.75*3*4*50 1.5 3 4 50 2
R1*4*4*50 2 4 4 50 2
R1.25*5*4*50 2.5 5 4 50 2
R1.5*6*4*50 3 6 4 50 2
R1.75*7*4*50 3.5 7 4 50 2
R2*8*4*50 4 8 4 50 2
R2*8*4*75 4 8 4 75 2
R2*8*4*100 4 8 4 100 2
R0.5*2*4*75 1 2 4 75 2
R0.75*3*4*75 1.5 3 4 75 2
R1*4*4*75 2 4 4 75 2
R1.25*5*4*75 2.5 5 4 75 2
R1.5*6*4*75 3 6 4 75 2
R2.5*10*5*50 5 10 5 50 2
R2.5*10*5*75 5 10 5 75 2
R2.5*10*5*100 5 10 5 100 2
R0.5*2*6*50 1 2 6 50 2
R0.75*3*6*50 1.5 3 6 50 2
R1*4*6*50 2 4 6 50 2
R1.25*5*6*50 2.5 5 6 50 2
R1.5*6*6*50 3 6 6 50 2
R2*8*6*50 4 8 6 50 2
R2.5*10*6*50 5 10 6 50 2
R3*12*6*50 6 12 6 50 2
R3*12*6*75 6 12 6 75 2
R3*12*6*100 6 12 6 100 2
R3*12*6*150 6 12 6 150 2
R3.5*14*8*60 7 14 8 60 2
R4*16*8*60 8 16 8 60 2
R4*16*8*75 8 16 8 75 2
R4*16*8*100 8 16 8 100 2
R4*16*8*150 8 16 8 150 2
R4.5*18*10*75 9 18 10 75 2
R5*20*10*75 10 20 10 75 2
R5*20*10*100 10 20 10 100 2
R5*20*10*150 10 20 10 150 2
R5.5*22*12*75 11 22 12 75 2
R6*24*12*75 12 24 12 75 2
R6*24*12*100 12 24 12 100 2
R6*24*12*150 12 24 12 150 2
R7*28*14*80 14 28 14 80 2
R7*28*14*100 14 28 14 100 2
R7*28*14*150 14 28 14 150 2
R8*32*16*100 16 32 16 100 2
R8*32*16*150 16 32 16 150 2
R9*36*18*100 18 36 18 100 2
R9*36*18*150 18 36 18 150 2
R10*40*20*100 20 40 20 100 2
R10*40*20*150 20 40 20 150 2

Applications:

  • High-precision finishing work.
  • Milling of hardened steel, alloys, or other very hard materials.
  • Contour milling, 3D profiling, and mold-making.

This tool is ideal for complex parts requiring intricate detailing or finishing with tight tolerances.
