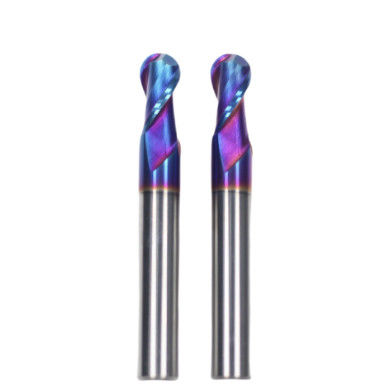

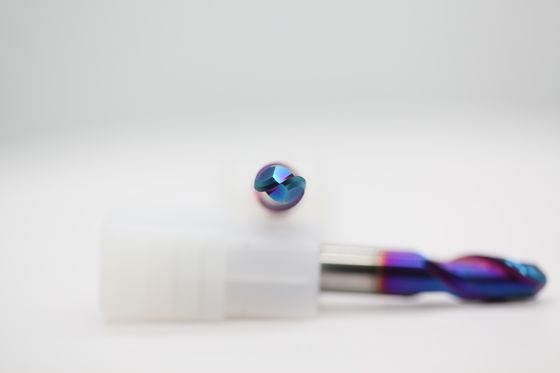

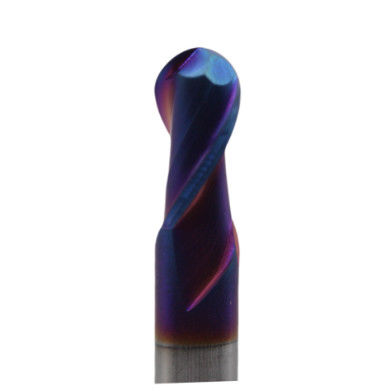

2 Flutes HRC 65 R9*18*36*18*150L TiAISiN Coated Carbide Ball Nose End Mill

2 Flutes HRC 65 R9*18*36*18*150L TiAISiN Coated Carbide Ball Nose End Mill
2 Flutes HRC 65 R9*18*36*18*150L TiAISiN Coated Carbide Ball Nose End Mill
video play

Large Image :  2 Flutes HRC 65 R9*18*36*18*150L TiAISiN Coated Carbide Ball Nose End Mill

Product Details:
Place of Origin: China
Brand Name: BABOS
Model Number: 65 R9*18*36*18*150L 2T
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Plastic Box
Delivery Time: 3 days for standard products, 1-2weeks for custom products.
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 20,000PCS per month
Contact Now
Detailed Product Description
Cut Diameter: 18mm Shank Diameter: 36mm
Overall Length: 18mm Coating/Finish Type: TiAISiN
Machine Type: Finish Machining, Roughing Machining Application: Milling And Cutting Of Carbon Steel, Malleable Cast Iron, Alloy Steel, Stainless Steel, Etc.
Tolerance: 0.020mm~0.050mm Customize: Available
Highlight:

R9*18*36*18*150L Carbide Ball Nose End Mill

2 Flutes HRC 65 R9*18*36*18*150L TiAISiN Coated Carbide Ball Nose End Mill

Product Description:

The HRC65 R9 2-Flute Carbide Ball Nose End Mill is a high-performance tool designed for precision 3D contouring, deep cavity milling, and mold machining. With an ultra-hard TiAlSiN coating, it offers exceptional wear resistance, heat resistance, and durability, making it ideal for machining hardened steels, alloy steels, and cast iron up to HRC65. The long reach (150mm overall length) allows for deep milling applications while maintaining stability and accuracy.

Features:

  • Product Name:2 Flutes Ball-Nosed End Mill
  • Cut Diameter: 18mm
  • Cut Length: 36mm
  • Shank Diameter: 18mm
  • Overall Length: 150mm
  • Sample Order: Accepted
  • Coating/Finish Type: TiAISiN
  • Flute Type: Ball Nose End Mill
  • Customize: Available
 2 Flutes HRC 65 R9*18*36*18*150L TiAISiN Coated Carbide Ball Nose End Mill 0
HRC 2 Flutes Ball Nose End Mill Specifications
(For Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron)
Sizes Cut Diameter
D		 Cut Length
Lc		 Shank Diameter
d		 Overall Length
L		 Flutes No.
R1.5*6*3*50 3 6 3 50 2
R1.5*6*3*75 3 6 3 75 2
R1.5*6*3*100 3 6 3 100 2
R0.5*2*4*50 1 2 4 50 2
R0.75*3*4*50 1.5 3 4 50 2
R1*4*4*50 2 4 4 50 2
R1.25*5*4*50 2.5 5 4 50 2
R1.5*6*4*50 3 6 4 50 2
R1.75*7*4*50 3.5 7 4 50 2
R2*8*4*50 4 8 4 50 2
R2*8*4*75 4 8 4 75 2
R2*8*4*100 4 8 4 100 2
R0.5*2*4*75 1 2 4 75 2
R0.75*3*4*75 1.5 3 4 75 2
R1*4*4*75 2 4 4 75 2
R1.25*5*4*75 2.5 5 4 75 2
R1.5*6*4*75 3 6 4 75 2
R2.5*10*5*50 5 10 5 50 2
R2.5*10*5*75 5 10 5 75 2
R2.5*10*5*100 5 10 5 100 2
R0.5*2*6*50 1 2 6 50 2
R0.75*3*6*50 1.5 3 6 50 2
R1*4*6*50 2 4 6 50 2
R1.25*5*6*50 2.5 5 6 50 2
R1.5*6*6*50 3 6 6 50 2
R2*8*6*50 4 8 6 50 2
R2.5*10*6*50 5 10 6 50 2
R3*12*6*50 6 12 6 50 2
R3*12*6*75 6 12 6 75 2
R3*12*6*100 6 12 6 100 2
R3*12*6*150 6 12 6 150 2
R3.5*14*8*60 7 14 8 60 2
R4*16*8*60 8 16 8 60 2
R4*16*8*75 8 16 8 75 2
R4*16*8*100 8 16 8 100 2
R4*16*8*150 8 16 8 150 2
R4.5*18*10*75 9 18 10 75 2
R5*20*10*75 10 20 10 75 2
R5*20*10*100 10 20 10 100 2
R5*20*10*150 10 20 10 150 2
R5.5*22*12*75 11 22 12 75 2
R6*24*12*75 12 24 12 75 2
R6*24*12*100 12 24 12 100 2
R6*24*12*150 12 24 12 150 2
R7*28*14*80 14 28 14 80 2
R7*28*14*100 14 28 14 100 2
R7*28*14*150 14 28 14 150 2
R8*32*16*100 16 32 16 100 2
R8*32*16*150 16 32 16 150 2
R9*36*18*100 18 36 18 100 2
R9*36*18*150 18 36 18 150 2
R10*40*20*100 20 40 20 100 2
R10*40*20*150 20 40 20 150 2

Applications:

  • High-precision finishing work.
  • Milling of hardened steel, alloys, or other very hard materials.
  • Contour milling, 3D profiling, and mold-making.

This tool is ideal for complex parts requiring intricate detailing or finishing with tight tolerances.
