Product Details:
Payment & Shipping Terms:
|
Cut Diameter: | 3mm | Cut Length: | 6mm |
---|---|---|---|
Shank Diameter: | 12mm | Overall Length: | 150mm |
Flute Number: | 2 | Helix Angle: | 30° |
Tolerance: | 0.020mm~0.050mm | Customize: | Available |
Highlight: | HRC 55° Ball Nose End Mill,2 Flutes Ball Nose End Mill,Aluminum Ball Nose End Mill |

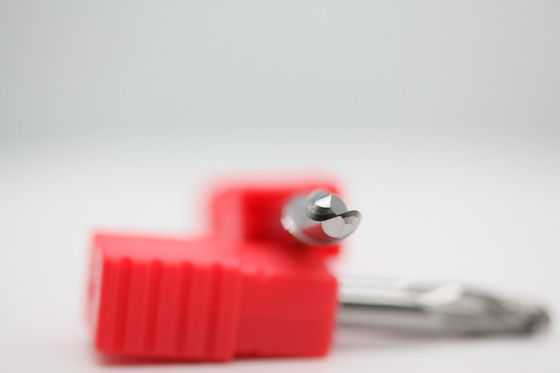

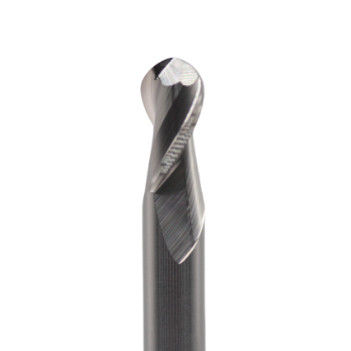

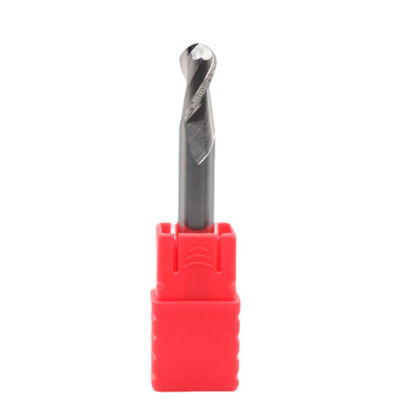

HRC 55° R3*6*12*6*150L 2 Flutes Ball Nose End Mill For Aluminum Without Coating is engineered for high efficiency and precision, making it an excellent choice for professionals in aerospace, mold-making, and precision machining industries.
Parameter | Details |
---|---|
Cutting Diameter | 6mm |
Cutting Length | 12mm |
Shank Diameter | 6mm |
Overall Length | 150mm |
Number of Flutes | 2 Flutes |
End Type | Ball Nose End |
Material | Ultra-Fine Solid Carbide |
2 Flutes Ball Nose End Mill Specifications (For Alunminum) |
|||||
Sizes | Cut Diameter D |
Cut Length Lc |
Shank Diameter d |
Overall Length L |
Flutes No. |
R1.5*6*3*50 | 3 | 6 | 3 | 50 | 2 |
R1.5*6*3*75 | 3 | 6 | 3 | 75 | 2 |
R1.5*6*3*100 | 3 | 6 | 3 | 100 | 2 |
R0.5*2*4*50 | 1 | 2 | 4 | 50 | 2 |
R0.75*3*4*50 | 1.5 | 3 | 4 | 50 | 2 |
R1*4*4*50 | 2 | 4 | 4 | 50 | 2 |
R1.25*5*4*50 | 2.5 | 5 | 4 | 50 | 2 |
R1.5*6*4*50 | 3 | 6 | 4 | 50 | 2 |
R1.75*7*4*50 | 3.5 | 7 | 4 | 50 | 2 |
R2*8*4*50 | 4 | 8 | 4 | 50 | 2 |
R2*8*4*75 | 4 | 8 | 4 | 75 | 2 |
R2*8*4*100 | 4 | 8 | 4 | 100 | 2 |
R0.5*2*4*75 | 1 | 2 | 4 | 75 | 2 |
R0.75*3*4*75 | 1.5 | 3 | 4 | 75 | 2 |
R1*4*4*75 | 2 | 4 | 4 | 75 | 2 |
R1.25*5*4*75 | 2.5 | 5 | 4 | 75 | 2 |
R1.5*6*4*75 | 3 | 6 | 4 | 75 | 2 |
R2.5*10*5*50 | 5 | 10 | 5 | 50 | 2 |
R2.5*10*5*75 | 5 | 10 | 5 | 75 | 2 |
R2.5*10*5*100 | 5 | 10 | 5 | 100 | 2 |
R0.5*2*6*50 | 1 | 2 | 6 | 50 | 2 |
R0.75*3*6*50 | 1.5 | 3 | 6 | 50 | 2 |
R1*4*6*50 | 2 | 4 | 6 | 50 | 2 |
R1.25*5*6*50 | 2.5 | 5 | 6 | 50 | 2 |
R1.5*6*6*50 | 3 | 6 | 6 | 50 | 2 |
R2*8*6*50 | 4 | 8 | 6 | 50 | 2 |
R2.5*10*6*50 | 5 | 10 | 6 | 50 | 2 |
R3*12*6*50 | 6 | 12 | 6 | 50 | 2 |
R3*12*6*75 | 6 | 12 | 6 | 75 | 2 |
R3*12*6*100 | 6 | 12 | 6 | 100 | 2 |
R3*12*6*150 | 6 | 12 | 6 | 150 | 2 |
R3.5*14*8*60 | 7 | 14 | 8 | 60 | 2 |
R4*16*8*60 | 8 | 16 | 8 | 60 | 2 |
R4*16*8*75 | 8 | 16 | 8 | 75 | 2 |
R4*16*8*100 | 8 | 16 | 8 | 100 | 2 |
R4*16*8*150 | 8 | 16 | 8 | 150 | 2 |
R4.5*18*10*75 | 9 | 18 | 10 | 75 | 2 |
R5*20*10*75 | 10 | 20 | 10 | 75 | 2 |
R5*20*10*100 | 10 | 20 | 10 | 100 | 2 |
R5*20*10*150 | 10 | 20 | 10 | 150 | 2 |
R5.5*22*12*75 | 11 | 22 | 12 | 75 | 2 |
R6*24*12*75 | 12 | 24 | 12 | 75 | 2 |
R6*24*12*100 | 12 | 24 | 12 | 100 | 2 |
R6*24*12*150 | 12 | 24 | 12 | 150 | 2 |
R7*28*14*80 | 14 | 28 | 14 | 80 | 2 |
R7*28*14*100 | 14 | 28 | 14 | 100 | 2 |
R7*28*14*150 | 14 | 28 | 14 | 150 | 2 |
R8*32*16*100 | 16 | 32 | 16 | 100 | 2 |
R8*32*16*150 | 16 | 32 | 16 | 150 | 2 |
R9*36*18*100 | 18 | 36 | 18 | 100 | 2 |
R9*36*18*150 | 18 | 36 | 18 | 150 | 2 |
R10*40*20*100 | 20 | 40 | 20 | 100 | 2 |
R10*40*20*150 | 20 | 40 | 20 | 150 | 2 |
✅ Precision Ball Nose Design – Ideal for 3D contouring, mold machining, and curved surface cutting.
✅ 2-Flute Geometry – Provides better chip evacuation, making it perfect for softer materials and high-speed machining.
✅ Long Reach (150mm Length) – Suitable for deep cavity machining and extended reach applications.
✅ High-Quality Carbide – Ensures excellent wear resistance and durability.
✅ Smooth Surface Finish – Delivers clean, precise finishes on curved surfaces.
