HRC 55° R2.5*10*5*75 2 Flutes Ball Nose End Mill For Aluminum Without Coating
Product Description:

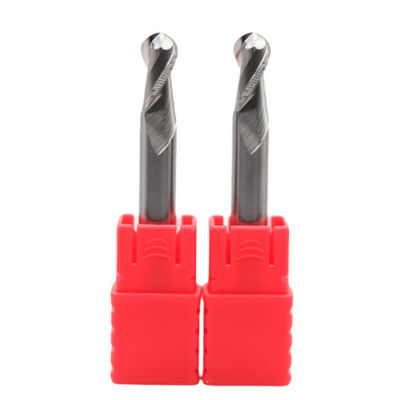

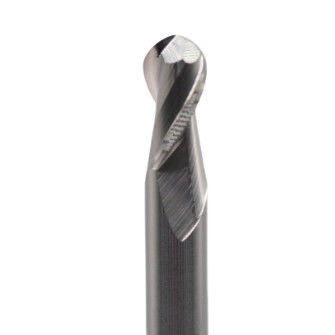

The 2 flutes ball nose carbide end mill cutter is a tool with exceptional properties such as high hardness, wear resistance, and heat resistance.
The cutter is made of carbide material, which has good milling and cutting performance that ensures high work efficiency.
This tool is ideal for precision machining in various industries, including aerospace, automotive, and medical. Its ball nose design makes it the perfect tool for creating 3D shapes, contours, and surfaces with excellent surface finish and accuracy.
Product Features:
✅ Precision Machining – Engineered for high-speed cutting and smooth finishing on aluminum and other non-ferrous metals.
✅ Optimized 2-Flute Design – Enhances chip evacuation, reducing heat buildup and improving cutting efficiency.
✅ Ball Nose Geometry – Perfect for 3D profiling, contouring, and mold-making applications.
✅ Ultra-Fine Grain Carbide – Provides excellent durability and resistance to wear for extended tool life.
✅ Uncoated for Aluminum – Eliminates built-up edges, ensuring clean cuts and better surface finishes.
Specifications:
- Cut Dia(D): 5mm
- Cutting Length (Lc): 10mm
- Shank Diameter (d): 5mm
- Overall Length (L): 75mm
- Flute Count: 2
- Material: High-quality solid carbide
- Coating: None (ideal for aluminum and non-ferrous metals)
2 Flutes Ball Nose End Mill Specifications
(For Alunminum) |
| Sizes |
Cut Diameter
D |
Cut Length
Lc |
Shank Diameter
d |
Overall Length
L |
Flutes No. |
| R1.5*6*3*50 |
3 |
6 |
3 |
50 |
2 |
| R1.5*6*3*75 |
3 |
6 |
3 |
75 |
2 |
| R1.5*6*3*100 |
3 |
6 |
3 |
100 |
2 |
| R0.5*2*4*50 |
1 |
2 |
4 |
50 |
2 |
| R0.75*3*4*50 |
1.5 |
3 |
4 |
50 |
2 |
| R1*4*4*50 |
2 |
4 |
4 |
50 |
2 |
| R1.25*5*4*50 |
2.5 |
5 |
4 |
50 |
2 |
| R1.5*6*4*50 |
3 |
6 |
4 |
50 |
2 |
| R1.75*7*4*50 |
3.5 |
7 |
4 |
50 |
2 |
| R2*8*4*50 |
4 |
8 |
4 |
50 |
2 |
| R2*8*4*75 |
4 |
8 |
4 |
75 |
2 |
| R2*8*4*100 |
4 |
8 |
4 |
100 |
2 |
| R0.5*2*4*75 |
1 |
2 |
4 |
75 |
2 |
| R0.75*3*4*75 |
1.5 |
3 |
4 |
75 |
2 |
| R1*4*4*75 |
2 |
4 |
4 |
75 |
2 |
| R1.25*5*4*75 |
2.5 |
5 |
4 |
75 |
2 |
| R1.5*6*4*75 |
3 |
6 |
4 |
75 |
2 |
| R2.5*10*5*50 |
5 |
10 |
5 |
50 |
2 |
| R2.5*10*5*75 |
5 |
10 |
5 |
75 |
2 |
| R2.5*10*5*100 |
5 |
10 |
5 |
100 |
2 |
| R0.5*2*6*50 |
1 |
2 |
6 |
50 |
2 |
| R0.75*3*6*50 |
1.5 |
3 |
6 |
50 |
2 |
| R1*4*6*50 |
2 |
4 |
6 |
50 |
2 |
| R1.25*5*6*50 |
2.5 |
5 |
6 |
50 |
2 |
| R1.5*6*6*50 |
3 |
6 |
6 |
50 |
2 |
| R2*8*6*50 |
4 |
8 |
6 |
50 |
2 |
| R2.5*10*6*50 |
5 |
10 |
6 |
50 |
2 |
| R3*12*6*50 |
6 |
12 |
6 |
50 |
2 |
| R3*12*6*75 |
6 |
12 |
6 |
75 |
2 |
| R3*12*6*100 |
6 |
12 |
6 |
100 |
2 |
| R3*12*6*150 |
6 |
12 |
6 |
150 |
2 |
| R3.5*14*8*60 |
7 |
14 |
8 |
60 |
2 |
| R4*16*8*60 |
8 |
16 |
8 |
60 |
2 |
| R4*16*8*75 |
8 |
16 |
8 |
75 |
2 |
| R4*16*8*100 |
8 |
16 |
8 |
100 |
2 |
| R4*16*8*150 |
8 |
16 |
8 |
150 |
2 |
| R4.5*18*10*75 |
9 |
18 |
10 |
75 |
2 |
| R5*20*10*75 |
10 |
20 |
10 |
75 |
2 |
| R5*20*10*100 |
10 |
20 |
10 |
100 |
2 |
| R5*20*10*150 |
10 |
20 |
10 |
150 |
2 |
| R5.5*22*12*75 |
11 |
22 |
12 |
75 |
2 |
| R6*24*12*75 |
12 |
24 |
12 |
75 |
2 |
| R6*24*12*100 |
12 |
24 |
12 |
100 |
2 |
| R6*24*12*150 |
12 |
24 |
12 |
150 |
2 |
| R7*28*14*80 |
14 |
28 |
14 |
80 |
2 |
| R7*28*14*100 |
14 |
28 |
14 |
100 |
2 |
| R7*28*14*150 |
14 |
28 |
14 |
150 |
2 |
| R8*32*16*100 |
16 |
32 |
16 |
100 |
2 |
| R8*32*16*150 |
16 |
32 |
16 |
150 |
2 |
| R9*36*18*100 |
18 |
36 |
18 |
100 |
2 |
| R9*36*18*150 |
18 |
36 |
18 |
150 |
2 |
| R10*40*20*100 |
20 |
40 |
20 |
100 |
2 |
| R10*40*20*150 |
20 |
40 |
20 |
150 |
2 |
Applications:
✔ CNC machining of aluminum, copper, and plastic
✔ Mold and die manufacturing
✔ 3D surface milling & contouring
✔ Aerospace & automotive components
This ball nose end mill is designed to deliver high-precision, smooth cutting, and superior surface finishes in aluminum machining. A must-have tool for professionals in mold-making, aerospace, and precision machining industries.
