16mm 2 Flutes Ball End Mill R8*16*32*16*100 2 Flutes Ball End Mill AITiN Coated For Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron

16mm 2 Flutes Ball End Mill R8*16*32*16*100 2 Flutes Ball End Mill AITiN Coated For Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron
16mm 2 Flutes Ball End Mill R8*16*32*16*100 2 Flutes Ball End Mill AITiN Coated For Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron
video play

Large Image :  16mm 2 Flutes Ball End Mill R8*16*32*16*100 2 Flutes Ball End Mill AITiN Coated For Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron

Product Details:
Place of Origin: China
Brand Name: BABOS
Model Number: R8*16*32*16*100-2F
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Plastic Box
Delivery Time: 3 days for standard products, 1-2weeks for custom products.
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 20,000PCS per month
Contact Now
Detailed Product Description
Cut Diameter: 16mm Overall Length: 32mm
Shank Diameter: 16mm Coating/Finish Type: AITiN
Machine Type: Finish Machining, Roughing Machining Application: Milling And Cutting Of Carbon Steel, Malleable Cast Iron, Alloy Steel, Stainless Steel, Etc.
Tolerance: -0.020mm~-0.050mm Customize: Available
Highlight:

16mm 2 Flutes Ball End Mill

,

R8 2 Flutes Ball End Mill

16mm R8*16*32*16*100 2 Flutes Ball End Mill AITiN Coated For Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron

Product Description:

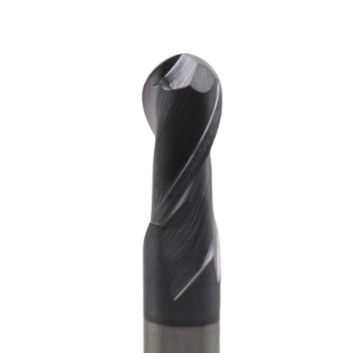

This high-performance 16mm Ball Nose End Mill is engineered for precision and durability. Featuring a 2-flute design, it ensures efficient chip evacuation and smooth cutting, making it ideal for contouring, profiling, and 3D surface machining.




Key Specifications:



Cutting Diameter (Ball Nose): 16mm (R8 radius)

Flute Length: 16mm

Cutting Length: 32mm

Shank Diameter: 16mm

Overall Length: 100mm

Flutes: 2




16mm 2 Flutes Ball End Mill R8*16*32*16*100 2 Flutes Ball End Mill AITiN Coated For Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron 0


2 Flutes Ball Nose End Mill Specifications
(Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron)
Sizes Cut Diameter
D		 Cut Length
Lc		 Shank Diameter
d		 Overall Length
L		 Flutes No.
R1.5*6*3*50 3 6 3 50 2
R1.5*6*3*75 3 6 3 75 2
R1.5*6*3*100 3 6 3 100 2
R0.5*2*4*50 1 2 4 50 2
R0.75*3*4*50 1.5 3 4 50 2
R1*4*4*50 2 4 4 50 2
R1.25*5*4*50 2.5 5 4 50 2
R1.5*6*4*50 3 6 4 50 2
R1.75*7*4*50 3.5 7 4 50 2
R2*8*4*50 4 8 4 50 2
R2*8*4*75 4 8 4 75 2
R2*8*4*100 4 8 4 100 2
R0.5*2*4*75 1 2 4 75 2
R0.75*3*4*75 1.5 3 4 75 2
R1*4*4*75 2 4 4 75 2
R1.25*5*4*75 2.5 5 4 75 2
R1.5*6*4*75 3 6 4 75 2
R2.5*10*5*50 5 10 5 50 2
R2.5*10*5*75 5 10 5 75 2
R2.5*10*5*100 5 10 5 100 2
R0.5*2*6*50 1 2 6 50 2
R0.75*3*6*50 1.5 3 6 50 2
R1*4*6*50 2 4 6 50 2
R1.25*5*6*50 2.5 5 6 50 2
R1.5*6*6*50 3 6 6 50 2
R2*8*6*50 4 8 6 50 2
R2.5*10*6*50 5 10 6 50 2
R3*12*6*50 6 12 6 50 2
R3*12*6*75 6 12 6 75 2
R3*12*6*100 6 12 6 100 2
R3*12*6*150 6 12 6 150 2
R3.5*14*8*60 7 14 8 60 2
R4*16*8*60 8 16 8 60 2
R4*16*8*75 8 16 8 75 2
R4*16*8*100 8 16 8 100 2
R4*16*8*150 8 16 8 150 2
R4.5*18*10*75 9 18 10 75 2
R5*20*10*75 10 20 10 75 2
R5*20*10*100 10 20 10 100 2
R5*20*10*150 10 20 10 150 2
R5.5*22*12*75 11 22 12 75 2
R6*24*12*75 12 24 12 75 2
R6*24*12*100 12 24 12 100 2
R6*24*12*150 12 24 12 150 2
R7*28*14*80 14 28 14 80 2
R7*28*14*100 14 28 14 100 2
R7*28*14*150 14 28 14 150 2
R8*32*16*100 16 32 16 100 2
R8*32*16*150 16 32 16 150 2
R9*36*18*100 18 36 18 100 2
R9*36*18*150 18 36 18 150 2
R10*40*20*100 20 40 20 100 2
R10*40*20*150 20 40 20 150 2


The AITiN (Aluminum Titanium Nitride) coating enhances tool life and performance, providing excellent heat and wear resistance, especially when machining hardened steels, stainless steels, and high-temperature alloys. This end mill is perfect for mold and die work, aerospace components, and general-purpose milling requiring high feed rates and surface finish quality.



Features:

  • High-quality carbide substrate for rigidity and toughness
  • AITiN coating for superior oxidation resistance and thermal stability
  • Precision ground ball nose for accurate 3D contouring
  • Optimized 2-flute geometry for smooth chip flow and reduced vibration
