AITiN Coated 10mm R510201075 2 Flutes Ball End Mill for Machining Carbon Steel Alloy Steel Stainless Steel Cast Iron

AITiN Coated 10mm R510201075 2 Flutes Ball End Mill for Machining Carbon Steel Alloy Steel Stainless Steel Cast Iron

Brand Name:	BABOS
Model Number:	R510201075-2F
MOQ:	10pcs
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	20,000PCS per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Cut Diameter:

10mm

Overall Length:

20mm

Shank Diameter:

10mm

Coating/Finish Type:

AITiN

Machine Type:

Finish Machining, Roughing Machining

Application:

Milling And Cutting Of Carbon Steel, Malleable Cast Iron, Alloy Steel, Stainless Steel, Etc.

Tolerance:

-0.020mm~-0.050mm

Customize:

Available

Packaging Details:

Plastic Box

Highlight:

10mm Ball End Mill

Cast Iron Ball End Mill

2 Flutes Ball End Mill

Product Description

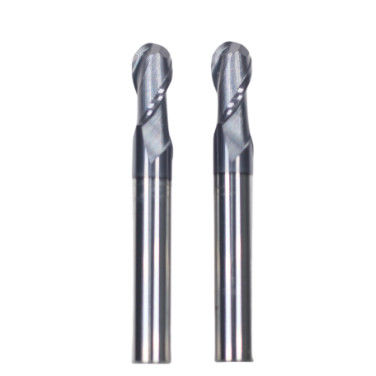

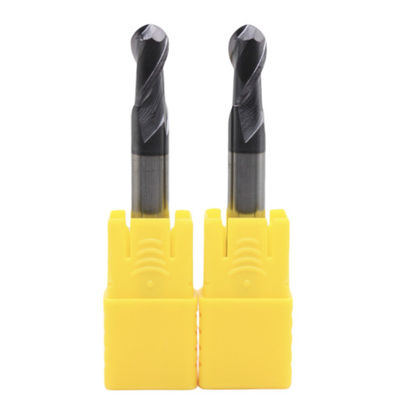

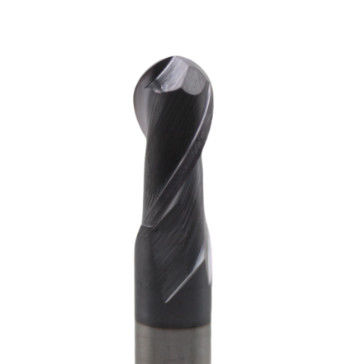

10mm AITiN Coated Ball End Mill R510201075 2 Flutes For Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron

Product Description:

The 10mm Ball End Mill with AITiN (Aluminum Titanium Nitride) coating is designed for high-performance 3D machining, surface contouring, and finishing tasks across a variety of tough materials. Its ball nose geometry allows for smooth contour milling and excellent surface finishes, while the AITiN coating delivers superior heat and wear resistance.

Key Specifications:

Cutting Diameter (Ball Nose): 10mm (R5 radius)
Flute Length: 10mm
Cutting Length: 20mm
Shank Diameter: 10mm
Overall Length: 75mm
Flutes: 2

Coating:

The AITiN (Aluminum Titanium Nitride) coating enhances the tool’s performance by offering exceptional heat resistance, extended tool life, and excellent wear protection, even under high-speed and dry machining conditions.

2 Flutes Ball Nose End Mill Specifications (Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron)
Sizes	Cut Diameter D	Cut Length Lc	Shank Diameter d	Overall Length L	Flutes No.
R1.563*50	3	6	3	50	2
R1.563*75	3	6	3	75	2
R1.563*100	3	6	3	100	2
R0.524*50	1	2	4	50	2
R0.7534*50	1.5	3	4	50	2
R144*50	2	4	4	50	2
R1.2554*50	2.5	5	4	50	2
R1.564*50	3	6	4	50	2
R1.7574*50	3.5	7	4	50	2
R284*50	4	8	4	50	2
R284*75	4	8	4	75	2
R284*100	4	8	4	100	2
R0.524*75	1	2	4	75	2
R0.7534*75	1.5	3	4	75	2
R144*75	2	4	4	75	2
R1.2554*75	2.5	5	4	75	2
R1.564*75	3	6	4	75	2
R2.5105*50	5	10	5	50	2
R2.5105*75	5	10	5	75	2
R2.5105*100	5	10	5	100	2
R0.526*50	1	2	6	50	2
R0.7536*50	1.5	3	6	50	2
R146*50	2	4	6	50	2
R1.2556*50	2.5	5	6	50	2
R1.566*50	3	6	6	50	2
R286*50	4	8	6	50	2
R2.5106*50	5	10	6	50	2
R3126*50	6	12	6	50	2
R3126*75	6	12	6	75	2
R3126*100	6	12	6	100	2
R3126*150	6	12	6	150	2
R3.5148*60	7	14	8	60	2
R4168*60	8	16	8	60	2
R4168*75	8	16	8	75	2
R4168*100	8	16	8	100	2
R4168*150	8	16	8	150	2
R4.51810*75	9	18	10	75	2
R52010*75	10	20	10	75	2
R52010*100	10	20	10	100	2
R52010*150	10	20	10	150	2
R5.52212*75	11	22	12	75	2
R62412*75	12	24	12	75	2
R62412*100	12	24	12	100	2
R62412*150	12	24	12	150	2
R72814*80	14	28	14	80	2
R72814*100	14	28	14	100	2
R72814*150	14	28	14	150	2
R83216*100	16	32	16	100	2
R83216*150	16	32	16	150	2
R93618*100	18	36	18	100	2
R93618*150	18	36	18	150	2
R104020*100	20	40	20	100	2
R104020*150	20	40	20	150	2

Applications:

Carbon Steel
Alloy Steel
ool Steel
Cast Iron
Stainless Steel (general grades)

Ideal Industries:

Mold & Die Making
Aerospace Component Machining
Automotive Part Production
General Engineering Applications
3D Surface Finishing Tasks
