16mm R4*8*16*8*60 2 Flutes Ball End Mill AITiN Coated for Carbon Steel Alloy Steel Stainless Steel Cast Iron Machining Tool

16mm R4*8*16*8*60 2 Flutes Ball End Mill AITiN Coated for Carbon Steel Alloy Steel Stainless Steel Cast Iron Machining Tool
16mm R4*8*16*8*60 2 Flutes Ball End Mill AITiN Coated for Carbon Steel Alloy Steel Stainless Steel Cast Iron Machining Tool
video play

Large Image :  16mm R4*8*16*8*60 2 Flutes Ball End Mill AITiN Coated for Carbon Steel Alloy Steel Stainless Steel Cast Iron Machining Tool

Product Details:
Place of Origin: China
Brand Name: BABOS
Model Number: R4*8*16*8*60-2F
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Plastic Box
Delivery Time: 3 days for standard products, 1-2weeks for custom products.
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 20,000PCS per month
Contact Now
Detailed Product Description
Cut Diameter: 8mm Overall Length: 16mm
Shank Diameter: 8mm Coating/Finish Type: AITiN
Machine Type: Finish Machining, Roughing Machining Application: Milling And Cutting Of Carbon Steel, Malleable Cast Iron, Alloy Steel, Stainless Steel, Etc.
Tolerance: -0.020mm~-0.050mm Customize: Available
Highlight:

Carbon Steel Ball End Mill

,

Cast Iron Ball End Mill

,

Stainless Steel Ball End Mill

8mm R4*8*16*8*60 2 Flutes Ball End Mill AITiN Coated For Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron

Product Description:

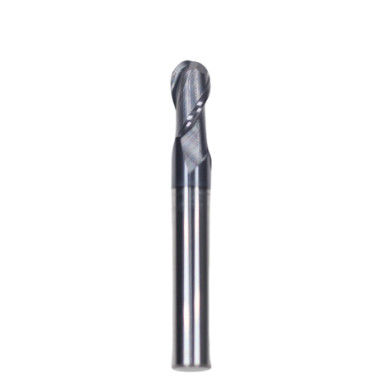

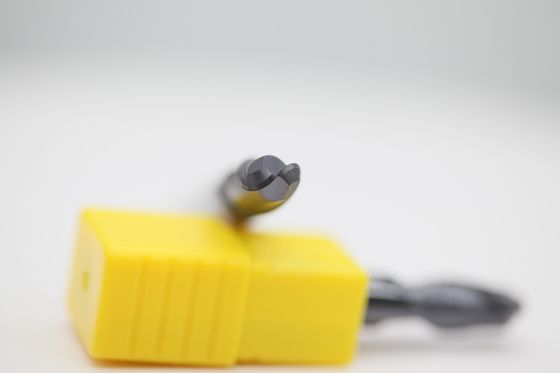

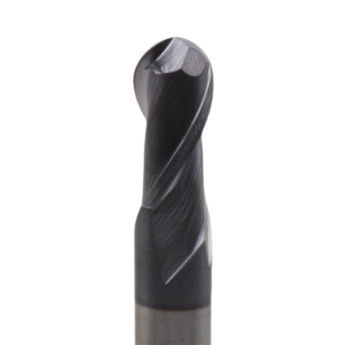

This 8mm Ball Nose End Mill is specifically designed for high-performance machining across a wide range of materials, including carbon steel, alloy steel, stainless steel, and cast iron. Featuring a 2-flute ball nose geometry, it delivers superior surface finishes and precise contouring, making it ideal for 3D machining and mold applications.



Key Specifications:

Cutting Diameter (Ball Nose): 8mm(R4 radius)

Flute Length: 8mm

Cutting Length: 16mm

Shank Diameter: 8mm

Overall Length: 60mm

Flutes: 2

Coating:

The AITiN (Aluminum Titanium Nitride) coating offers outstanding hardness, heat resistance, and oxidation protection, making it ideal for high-speed machining of difficult materials.

Features:

  • High-quality carbide substrate for toughness and wear resistance
  • AITiN coating for extended tool life and enhanced cutting performance
  • Precision-ground ball nose geometry for fine surface finishes and detailed contouring
  • Dual-flute design optimized for effective chip removal and reduced cutting forces

Applications:

Perfect for mold and die machining, aerospace parts, automotive components, and general-purpose milling on hardened steels, alloy steels, stainless steels, and heat-resistant materials.

16mm R4*8*16*8*60 2 Flutes Ball End Mill AITiN Coated for Carbon Steel Alloy Steel Stainless Steel Cast Iron Machining Tool 0


2 Flutes Ball Nose End Mill Specifications
(Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron)
Sizes Cut Diameter
D		 Cut Length
Lc		 Shank Diameter
d		 Overall Length
L		 Flutes No.
R1.5*6*3*50 3 6 3 50 2
R1.5*6*3*75 3 6 3 75 2
R1.5*6*3*100 3 6 3 100 2
R0.5*2*4*50 1 2 4 50 2
R0.75*3*4*50 1.5 3 4 50 2
R1*4*4*50 2 4 4 50 2
R1.25*5*4*50 2.5 5 4 50 2
R1.5*6*4*50 3 6 4 50 2
R1.75*7*4*50 3.5 7 4 50 2
R2*8*4*50 4 8 4 50 2
R2*8*4*75 4 8 4 75 2
R2*8*4*100 4 8 4 100 2
R0.5*2*4*75 1 2 4 75 2
R0.75*3*4*75 1.5 3 4 75 2
R1*4*4*75 2 4 4 75 2
R1.25*5*4*75 2.5 5 4 75 2
R1.5*6*4*75 3 6 4 75 2
R2.5*10*5*50 5 10 5 50 2
R2.5*10*5*75 5 10 5 75 2
R2.5*10*5*100 5 10 5 100 2
R0.5*2*6*50 1 2 6 50 2
R0.75*3*6*50 1.5 3 6 50 2
R1*4*6*50 2 4 6 50 2
R1.25*5*6*50 2.5 5 6 50 2
R1.5*6*6*50 3 6 6 50 2
R2*8*6*50 4 8 6 50 2
R2.5*10*6*50 5 10 6 50 2
R3*12*6*50 6 12 6 50 2
R3*12*6*75 6 12 6 75 2
R3*12*6*100 6 12 6 100 2
R3*12*6*150 6 12 6 150 2
R3.5*14*8*60 7 14 8 60 2
R4*16*8*60 8 16 8 60 2
R4*16*8*75 8 16 8 75 2
R4*16*8*100 8 16 8 100 2
R4*16*8*150 8 16 8 150 2
R4.5*18*10*75 9 18 10 75 2
R5*20*10*75 10 20 10 75 2
R5*20*10*100 10 20 10 100 2
R5*20*10*150 10 20 10 150 2
R5.5*22*12*75 11 22 12 75 2
R6*24*12*75 12 24 12 75 2
R6*24*12*100 12 24 12 100 2
R6*24*12*150 12 24 12 150 2
R7*28*14*80 14 28 14 80 2
R7*28*14*100 14 28 14 100 2
R7*28*14*150 14 28 14 150 2
R8*32*16*100 16 32 16 100 2
R8*32*16*150 16 32 16 150 2
R9*36*18*100 18 36 18 100 2
R9*36*18*150 18 36 18 150 2
R10*40*20*100 20 40 20 100 2
R10*40*20*150 20 40 20 150 2
