Shank Diameter 6mm R3*6*12*6*50 2 Flutes Ball End Mill AITiN Coated for Carbon Steel Alloy Steel Stainless Steel Cast Iron

All Products
Tungsten Carbide Burr (96)
Annular Cutter (28)
Milling Cutter (61)
Circular Saw (4)
Screw Tap (9)
Drill Bit (17)
China CHENGDU BABOS CUTTING TECH CO.,LTD certification
China CHENGDU BABOS CUTTING TECH CO.,LTD certification
I'm Online Chat Now

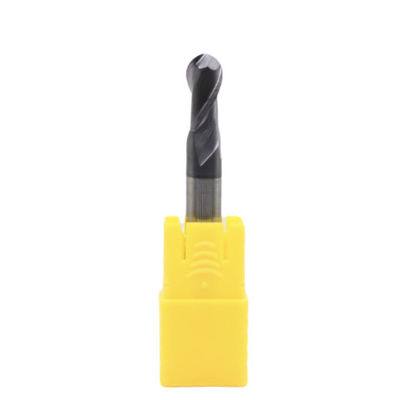

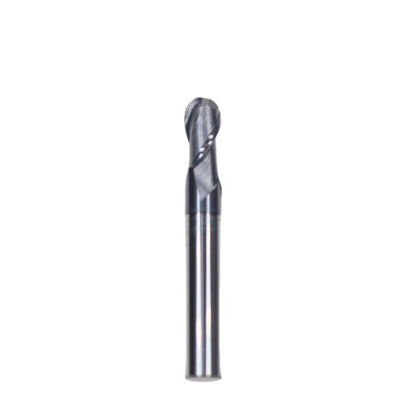

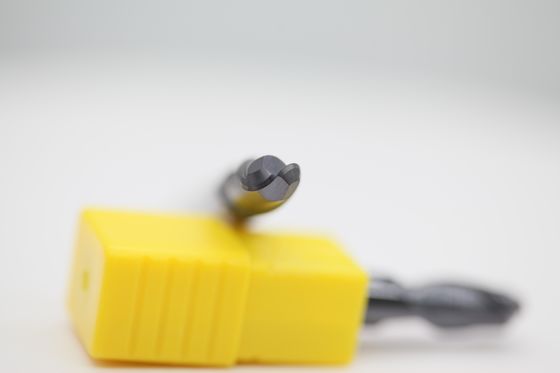

Shank Diameter 6mm R3*6*12*6*50 2 Flutes Ball End Mill AITiN Coated for Carbon Steel Alloy Steel Stainless Steel Cast Iron

Shank Diameter 6mm R3*6*12*6*50 2 Flutes Ball End Mill AITiN Coated for Carbon Steel Alloy Steel Stainless Steel Cast Iron
Shank Diameter 6mm R3*6*12*6*50 2 Flutes Ball End Mill AITiN Coated for Carbon Steel Alloy Steel Stainless Steel Cast Iron
video play

Large Image :  Shank Diameter 6mm R3*6*12*6*50 2 Flutes Ball End Mill AITiN Coated for Carbon Steel Alloy Steel Stainless Steel Cast Iron

Product Details:
Place of Origin: China
Brand Name: BABOS
Model Number: R3*6*12*6*50-2F
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Plastic Box
Delivery Time: 3 days for standard products, 1-2weeks for custom products.
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 20,000PCS per month
Contact Now
Detailed Product Description
Cut Diameter: 6mm Overall Length: 12mm
Shank Diameter: 6mm Coating/Finish Type: AITiN
Machine Type: Finish Machining, Roughing Machining Application: Milling And Cutting Of Carbon Steel, Malleable Cast Iron, Alloy Steel, Stainless Steel, Etc.
Tolerance: -0.020mm~-0.050mm Customize: Available
Highlight:

6mm Ball End Mill

,

Cast Iron Ball End Mill

,

2 Flutes Ball End Mill

6mm R3*6*12*6*50 2 Flutes Ball End Mill AITiN Coated For Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron

Product Description:

This 6mm Ball Nose End Mill is engineered for precision machining, making it ideal for 3D contouring, pocketing, and surface finishing on a variety of metals including carbon steel, alloy steel, stainless steel, and cast iron. The 2-flute ball nose design ensures excellent chip evacuation and smooth cutting in complex geometries.



Key Specifications:

  • Cutting Diameter (Ball Nose): 6mm (R3 radius)
  • Flute Length: 6mm
  • Cutting Length: 12mm
  • Shank Diameter: 6mm
  • Overall Length: 50mm
  • Flutes: 2

Coating:

The AITiN (Aluminum Titanium Nitride) coating provides superior hardness, heat resistance, and wear protection, enabling high-speed machining and longer tool life, even under demanding conditions.

Features:

  • Ultra-fine carbide substrate for high toughness and durability
  • AITiN coating for exceptional thermal stability and extended tool life
  • Precision-ground ball nose for accurate 3D profiling and fine surface finishes
  • 2-flute geometry for optimized chip evacuation and reduced cutting load

Applications:

  • Carbon Steel
  • Alloy Steel
  • Stainless Steel
  • Cast Iron

Suitable for mold & die industries, aerospace parts, automotive applications, and general-purpose machining where smooth surface finish and tool longevity are critical.



Shank Diameter 6mm R3*6*12*6*50 2 Flutes Ball End Mill AITiN Coated for Carbon Steel Alloy Steel Stainless Steel Cast Iron 0


2 Flutes Ball Nose End Mill Specifications
(Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron)
Sizes Cut Diameter
D		 Cut Length
Lc		 Shank Diameter
d		 Overall Length
L		 Flutes No.
R1.5*6*3*50 3 6 3 50 2
R1.5*6*3*75 3 6 3 75 2
R1.5*6*3*100 3 6 3 100 2
R0.5*2*4*50 1 2 4 50 2
R0.75*3*4*50 1.5 3 4 50 2
R1*4*4*50 2 4 4 50 2
R1.25*5*4*50 2.5 5 4 50 2
R1.5*6*4*50 3 6 4 50 2
R1.75*7*4*50 3.5 7 4 50 2
R2*8*4*50 4 8 4 50 2
R2*8*4*75 4 8 4 75 2
R2*8*4*100 4 8 4 100 2
R0.5*2*4*75 1 2 4 75 2
R0.75*3*4*75 1.5 3 4 75 2
R1*4*4*75 2 4 4 75 2
R1.25*5*4*75 2.5 5 4 75 2
R1.5*6*4*75 3 6 4 75 2
R2.5*10*5*50 5 10 5 50 2
R2.5*10*5*75 5 10 5 75 2
R2.5*10*5*100 5 10 5 100 2
R0.5*2*6*50 1 2 6 50 2
R0.75*3*6*50 1.5 3 6 50 2
R1*4*6*50 2 4 6 50 2
R1.25*5*6*50 2.5 5 6 50 2
R1.5*6*6*50 3 6 6 50 2
R2*8*6*50 4 8 6 50 2
R2.5*10*6*50 5 10 6 50 2
R3*12*6*50 6 12 6 50 2
R3*12*6*75 6 12 6 75 2
R3*12*6*100 6 12 6 100 2
R3*12*6*150 6 12 6 150 2
R3.5*14*8*60 7 14 8 60 2
R4*16*8*60 8 16 8 60 2
R4*16*8*75 8 16 8 75 2
R4*16*8*100 8 16 8 100 2
R4*16*8*150 8 16 8 150 2
R4.5*18*10*75 9 18 10 75 2
R5*20*10*75 10 20 10 75 2
R5*20*10*100 10 20 10 100 2
R5*20*10*150 10 20 10 150 2
R5.5*22*12*75 11 22 12 75 2
R6*24*12*75 12 24 12 75 2
R6*24*12*100 12 24 12 100 2
R6*24*12*150 12 24 12 150 2
R7*28*14*80 14 28 14 80 2
R7*28*14*100 14 28 14 100 2
R7*28*14*150 14 28 14 150 2
R8*32*16*100 16 32 16 100 2
R8*32*16*150 16 32 16 150 2
R9*36*18*100 18 36 18 100 2
R9*36*18*150 18 36 18 150 2
R10*40*20*100 20 40 20 100 2
R10*40*20*150 20 40 20 150 2
