Milling Cutter
Created with Pixso.

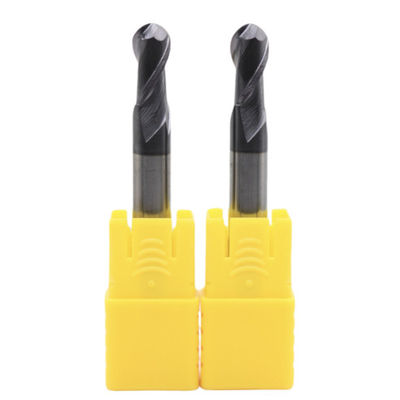

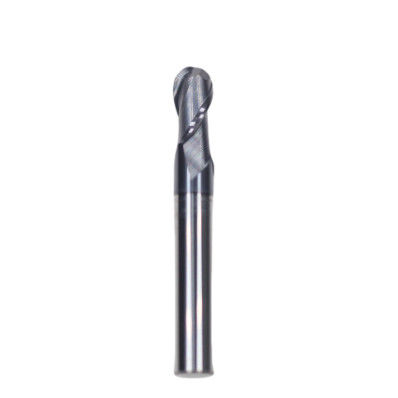

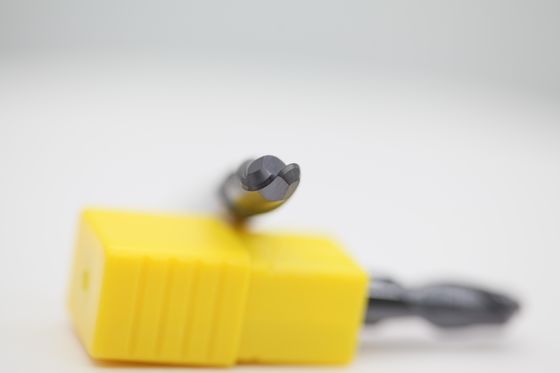

Carbon Steel Alloy Steel Stainless Steel Cast Iron Roughing Machining 5mm R2.5*5*10*5*50 2 Flutes Ball End Mill AITiN Coated

Carbon Steel Alloy Steel Stainless Steel Cast Iron Roughing Machining 5mm R2.5*5*10*5*50 2 Flutes Ball End Mill AITiN Coated

Brand Name: BABOS
Model Number: R2.5*5*10*5*50-2F
MOQ: 10pcs
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 20,000PCS per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Cut Diameter:
5mm
Overall Length:
10mm
Shank Diameter:
5mm
Coating/Finish Type:
AITiN
Machine Type:
Finish Machining, Roughing Machining
Application:
Milling And Cutting Of Carbon Steel, Malleable Cast Iron, Alloy Steel, Stainless Steel, Etc.
Tolerance:
-0.020mm~-0.050mm
Customize:
Available
Packaging Details:
Plastic Box
Highlight:

5mm R2.5*5*10*5*50 Ball End Mill

,

AITiN Coated Ball End Mill

,

Roughing Machining Ball End Mill

Product Description

5mm R2.5*5*10*5*50 2 Flutes Ball End Mill AITiN Coated For Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron

Product Description:

The 5mm Ball Nose End Mill is engineered for precision 3D profiling and surface machining, delivering excellent performance across a variety of materials. With a 2-flute ball nose design, it ensures smooth cutting action and efficient chip removal for fine surface finishes.



Specifications:

  • Cutting Diameter (Ball Nose): 5mm (R2.5 radius)
  • Flute Length: 5mm
  • Cutting Length: 10mm
  • Shank Diameter: 5mm
  • Overall Length: 50mm
  • Flutes: 2

Coating:

The AITiN (Aluminum Titanium Nitride) coating provides superior oxidation resistance, high thermal stability, and significantly extends tool life, even under high-speed and dry machining conditions.

Features:

  • Premium carbide material for strength and durability
  • AITiN coating for excellent wear resistance and heat protection
  • Precision-ground ball nose ideal for 3D contouring and fine detailing
  • 2-flute design promotes smooth chip evacuation and reduces cutting forces

Applications:

  • Suitable for carbon steel, alloy steel, stainless steel, cast iron
  • Perfect for mold and die manufacturing, aerospace parts, automotive components, and general metal machining


Carbon Steel Alloy Steel Stainless Steel Cast Iron Roughing Machining 5mm R2.5*5*10*5*50 2 Flutes Ball End Mill AITiN Coated 0


2 Flutes Ball Nose End Mill Specifications
(Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron)
Sizes Cut Diameter
D		 Cut Length
Lc		 Shank Diameter
d		 Overall Length
L		 Flutes No.
R1.5*6*3*50 3 6 3 50 2
R1.5*6*3*75 3 6 3 75 2
R1.5*6*3*100 3 6 3 100 2
R0.5*2*4*50 1 2 4 50 2
R0.75*3*4*50 1.5 3 4 50 2
R1*4*4*50 2 4 4 50 2
R1.25*5*4*50 2.5 5 4 50 2
R1.5*6*4*50 3 6 4 50 2
R1.75*7*4*50 3.5 7 4 50 2
R2*8*4*50 4 8 4 50 2
R2*8*4*75 4 8 4 75 2
R2*8*4*100 4 8 4 100 2
R0.5*2*4*75 1 2 4 75 2
R0.75*3*4*75 1.5 3 4 75 2
R1*4*4*75 2 4 4 75 2
R1.25*5*4*75 2.5 5 4 75 2
R1.5*6*4*75 3 6 4 75 2
R2.5*10*5*50 5 10 5 50 2
R2.5*10*5*75 5 10 5 75 2
R2.5*10*5*100 5 10 5 100 2
R0.5*2*6*50 1 2 6 50 2
R0.75*3*6*50 1.5 3 6 50 2
R1*4*6*50 2 4 6 50 2
R1.25*5*6*50 2.5 5 6 50 2
R1.5*6*6*50 3 6 6 50 2
R2*8*6*50 4 8 6 50 2
R2.5*10*6*50 5 10 6 50 2
R3*12*6*50 6 12 6 50 2
R3*12*6*75 6 12 6 75 2
R3*12*6*100 6 12 6 100 2
R3*12*6*150 6 12 6 150 2
R3.5*14*8*60 7 14 8 60 2
R4*16*8*60 8 16 8 60 2
R4*16*8*75 8 16 8 75 2
R4*16*8*100 8 16 8 100 2
R4*16*8*150 8 16 8 150 2
R4.5*18*10*75 9 18 10 75 2
R5*20*10*75 10 20 10 75 2
R5*20*10*100 10 20 10 100 2
R5*20*10*150 10 20 10 150 2
R5.5*22*12*75 11 22 12 75 2
R6*24*12*75 12 24 12 75 2
R6*24*12*100 12 24 12 100 2
R6*24*12*150 12 24 12 150 2
R7*28*14*80 14 28 14 80 2
R7*28*14*100 14 28 14 100 2
R7*28*14*150 14 28 14 150 2
R8*32*16*100 16 32 16 100 2
R8*32*16*150 16 32 16 150 2
R9*36*18*100 18 36 18 100 2
R9*36*18*150 18 36 18 150 2
R10*40*20*100 20 40 20 100 2
R10*40*20*150 20 40 20 150 2
