20mm Dia R10*20*40*20*100L 2Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron
Product Description:

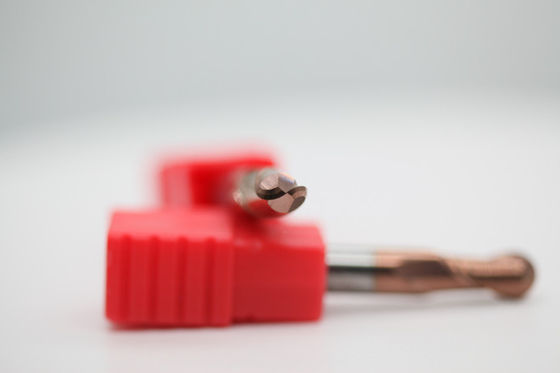

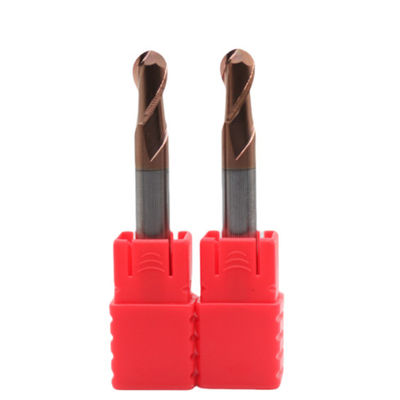

This 20mm Ball Nose End Mill is designed for heavy-duty 3D machining, surface profiling, and complex contouring operations. Made from premium carbide and featuring a TiAlSiN (Titanium Aluminum Silicon Nitride) coating, it offers outstanding heat resistance and extended tool life, even under extreme machining conditions.
Specifications:
- Cutting Diameter (Ball Nose): 20mm (R10 radius)
- Flute Length: 20mm
- Cutting Length: 40mm
- Shank Diameter: 20mm
- Overall Length: 100mm
- Flutes: 2
Coating:
The TiAlSiN coating provides excellent performance in high-speed and dry machining, delivering superior wear resistance, oxidation protection, and thermal stability, making it ideal for cutting hard materials.
Features:
- Made from ultra-fine carbide for strength and rigidity
- TiAlSiN coating enhances performance in high-temperature and high-speed applications

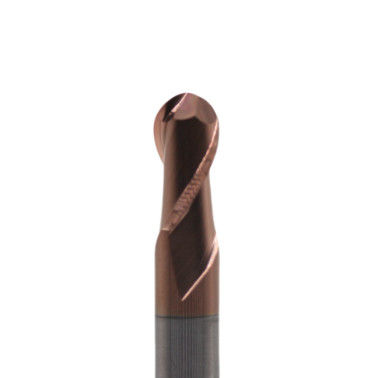

- Precision ball nose geometry for excellent surface finishes and accurate 3D contouring
- Optimized 2-flute design for efficient chip evacuation and smooth cutting action
Applications:
Perfect for machining hardened steels, alloy steels, stainless steels, cast iron, and other difficult-to-machine materials
Widely used in mold & die making, aerospace components, automotive parts, and general-purpose milling
2 Flutes Ball Nose End Mill Specifications
(For Carbon Steel, Alloy Steel, Cast Iron) |
| Sizes |
Cut Diameter
D |
Cut Length
Lc |
Shank Diameter
d |
Overall Length
L |
Flutes No. |
| R1.5*6*3*50 |
3 |
6 |
3 |
50 |
2 |
| R1.5*6*3*75 |
3 |
6 |
3 |
75 |
2 |
| R1.5*6*3*100 |
3 |
6 |
3 |
100 |
2 |
| R0.5*2*4*50 |
1 |
2 |
4 |
50 |
2 |
| R0.75*3*4*50 |
1.5 |
3 |
4 |
50 |
2 |
| R1*4*4*50 |
2 |
4 |
4 |
50 |
2 |
| R1.25*5*4*50 |
2.5 |
5 |
4 |
50 |
2 |
| R1.5*6*4*50 |
3 |
6 |
4 |
50 |
2 |
| R1.75*7*4*50 |
3.5 |
7 |
4 |
50 |
2 |
| R2*8*4*50 |
4 |
8 |
4 |
50 |
2 |
| R2*8*4*75 |
4 |
8 |
4 |
75 |
2 |
| R2*8*4*100 |
4 |
8 |
4 |
100 |
2 |
| R0.5*2*4*75 |
1 |
2 |
4 |
75 |
2 |
| R0.75*3*4*75 |
1.5 |
3 |
4 |
75 |
2 |
| R1*4*4*75 |
2 |
4 |
4 |
75 |
2 |
| R1.25*5*4*75 |
2.5 |
5 |
4 |
75 |
2 |
| R1.5*6*4*75 |
3 |
6 |
4 |
75 |
2 |
| R2.5*10*5*50 |
5 |
10 |
5 |
50 |
2 |
| R2.5*10*5*75 |
5 |
10 |
5 |
75 |
2 |
| R2.5*10*5*100 |
5 |
10 |
5 |
100 |
2 |
| R0.5*2*6*50 |
1 |
2 |
6 |
50 |
2 |
| R0.75*3*6*50 |
1.5 |
3 |
6 |
50 |
2 |
| R1*4*6*50 |
2 |
4 |
6 |
50 |
2 |
| R1.25*5*6*50 |
2.5 |
5 |
6 |
50 |
2 |
| R1.5*6*6*50 |
3 |
6 |
6 |
50 |
2 |
| R2*8*6*50 |
4 |
8 |
6 |
50 |
2 |
| R2.5*10*6*50 |
5 |
10 |
6 |
50 |
2 |
| R3*12*6*50 |
6 |
12 |
6 |
50 |
2 |
| R3*12*6*75 |
6 |
12 |
6 |
75 |
2 |
| R3*12*6*100 |
6 |
12 |
6 |
100 |
2 |
| R3*12*6*150 |
6 |
12 |
6 |
150 |
2 |
| R3.5*14*8*60 |
7 |
14 |
8 |
60 |
2 |
| R4*16*8*60 |
8 |
16 |
8 |
60 |
2 |
| R4*16*8*75 |
8 |
16 |
8 |
75 |
2 |
| R4*16*8*100 |
8 |
16 |
8 |
100 |
2 |
| R4*16*8*150 |
8 |
16 |
8 |
150 |
2 |
| R4.5*18*10*75 |
9 |
18 |
10 |
75 |
2 |
| R5*20*10*75 |
10 |
20 |
10 |
75 |
2 |
| R5*20*10*100 |
10 |
20 |
10 |
100 |
2 |
| R5*20*10*150 |
10 |
20 |
10 |
150 |
2 |
| R5.5*22*12*75 |
11 |
22 |
12 |
75 |
2 |
| R6*24*12*75 |
12 |
24 |
12 |
75 |
2 |
| R6*24*12*100 |
12 |
24 |
12 |
100 |
2 |
| R6*24*12*150 |
12 |
24 |
12 |
150 |
2 |
| R7*28*14*80 |
14 |
28 |
14 |
80 |
2 |
| R7*28*14*100 |
14 |
28 |
14 |
100 |
2 |
| R7*28*14*150 |
14 |
28 |
14 |
150 |
2 |
| R8*32*16*100 |
16 |
32 |
16 |
100 |
2 |
| R8*32*16*150 |
16 |
32 |
16 |
150 |
2 |
| R9*36*18*100 |
18 |
36 |
18 |
100 |
2 |
| R9*36*18*150 |
18 |
36 |
18 |
150 |
2 |
| R10*40*20*100 |
20 |
40 |
20 |
100 |
2 |
| R10*40*20*150 |
20 |
40 |
20 |
150 |
2 |
