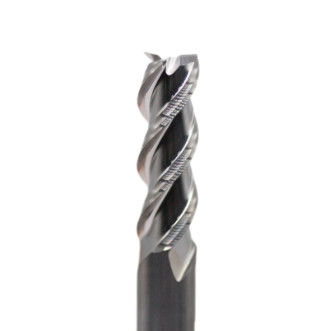

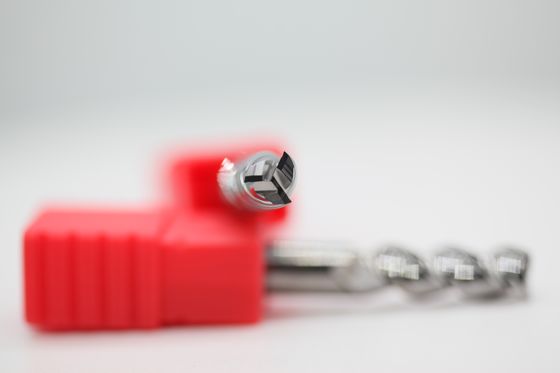

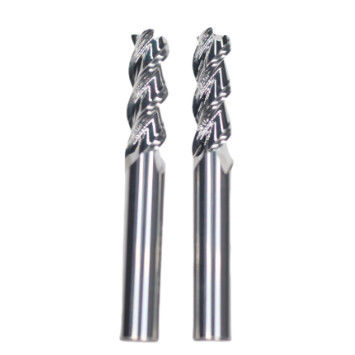

12mm Dia 12*45*12*100 HRC55 3 Flutes Flat Carbide End Mills For Aluminum Uncoated Machine Type Finish Machining

12mm Dia 12*45*12*100 HRC55 3 Flutes Flat Carbide End Mills For Aluminum Uncoated Machine Type Finish Machining
12mm Dia 12*45*12*100 HRC55 3 Flutes Flat Carbide End Mills For Aluminum Uncoated Machine Type Finish Machining
video play

Large Image :  12mm Dia 12*45*12*100 HRC55 3 Flutes Flat Carbide End Mills For Aluminum Uncoated Machine Type Finish Machining

Product Details:
Place of Origin: China
Brand Name: BABOS
Model Number: 12*45*12*100-3F
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Plastic Box
Delivery Time: 3 days for standard products, 1-2weeks for custom products.
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 20,000PCS per month
Contact Now
Detailed Product Description
Cut Diameter: 12mm Cut Length: 45mm
Shank Diameter: 12mm Overall Length: 100mm
Machine Type: Finish Machining, Roughing Machining Application: Milling And Cutting Of Carbon Steel, Malleable Cast Iron, Alloy Steel, Stainless Steel, Etc.
Tolerance: 0.010mm~0.030mm Customize: Available
Highlight:

12*45*12*100 Flat Carbide End Mills

,

12mm Flat Carbide End Mills

,

HRC55 Flat Carbide End Mills

12mm Dia 12*45*12*100 HRC55 3 Flutes Flat Carbide End Mills For Aluminum Uncoated

Product Description:

3 Flutes Flat Carbide End Mills for Aluminum are specialized cutting tools designed for machining aluminum and non-ferrous metals. Their design and features make them ideal for achieving high-speed cutting, good surface finish, and chip evacuation.

Specifications:

  • Cutting Diameter: 12mm
  • Flute Length: 45mm
  • Shank Diameter: 12mm
  • Overall Length: 100mm
  • Flutes: 3
  • Hardness: HRC55
  • Coating: Uncoated (optimized for aluminum machining)



Features:

  • Made from high-quality micro-grain carbide for rigidity and toughness
  • Uncoated finish to prevent built-up edge (BUE) when cutting aluminum
  • 3-flute geometry for excellent chip evacuation and smoother cutting on soft metals
  • Sharp cutting edges for high-speed machining and superior surface finishes
  • HRC55-grade hardness suitable for non-ferrous applications

Applications:

  • Specifically designed for machining aluminum and other non-ferrous metals
  • Ideal for aerospace, automotive, mold & die, and general-purpose aluminum milling tasks
  • Suitable for slotting, side milling, and finishing operations




12mm Dia 12*45*12*100 HRC55 3 Flutes Flat Carbide End Mills For Aluminum Uncoated Machine Type Finish Machining 0


2/3 Flutes Flat End Mill Specifications
(For Aluminum)
Szies Cut Diameter
D		 Cut Length
Lc		 Shank Diameter
d		 Overall Length
L		 Flutes No.
3*9*3*50 3 9 3 50 2 / 3
3*12*3*75 3 12 3 75 2 / 3
3*15*3*100 3 15 3 100 2 / 3
1*3*4*50 1 3 4 50 2 / 3
1.5*5*4*50 1.5 5 4 50 2 / 3
2*6*4*50 2 6 4 50 2 / 3
2.5*8*4*50 2.5 8 4 50 2 / 3
3*9*4*50 3 9 4 50 2 / 3
3.5*12*4*50 3.5 12 4 50 2 / 3
4*12*4*50 4 12 4 50 2 / 3
4*20*4*75 4 20 4 75 2 / 3
4*25*4*100 4 25 4 100 2 / 3
5*15*5*50 5 15 5 50 2 / 3
5*20*5*75 5 20 5 75 2 / 3
5*25*5*100 5 25 5 100 2 / 3
1*3*6*50 1 3 6 50 2 / 3
1.5*5*6*50 1.5 5 6 50 2 / 3
2*6*6*50 2 6 6 50 2 / 3
2.5*8*6*50 2.5 8 6 50 2 / 3
3*9*6*50 3 9 6 50 2 / 3
3.5*12*6*50 3.5 12 6 50 2 / 3
4*12*6*50 4 12 6 50 2 / 3
4.5*14*6*50 4.5 14 6 50 2 / 3
5*15*6*50 5 15 6 50 2 / 3
5.5*18*6*50 5.5 18 6 50 2 / 3
6*18*6*50 6 18 6 50 2 / 3
6*30*6*75 6 30 6 75 2 / 3
6*30*6*100 6 30 6 100 2 / 3
6*40*6*150 6 40 6 150 2 / 3
7*21*8*60 7 21 8 60 2 / 3
8*24*8*60 8 24 8 60 2 / 3
8*35*8*75 8 35 8 75 2 / 3
8*40*8*100 8 40 8 100 2 / 3
8*50*8*150 8 50 8 150 2 / 3
9*27*10*75 9 27 10 75 2 / 3
10*30*10*75 10 30 10 75 2 / 3
10*40*10*100 10 40 10 100 2 / 3
10*50*10*150 10 50 10 150 2 / 3
11*33*12*75 11 33 12 75 2 / 3
12*36*12*75 12 36 12 75 2 / 3
12*45*12*100 12 45 12 100 2 / 3
12*60*12*150 12 60 12 150 2 / 3
14*35*14*80 14 35 14 80 2 / 3
13*45*14*100 13 45 14 100 2 / 3
14*45*14*100 14 45 14 100 2 / 3
14*65*14*150 14 65 14 150 2 / 3
15*45*16*100 15 45 16 100 2 / 3
16*45*16*100 16 45 16 100 2 / 3
16*65*16*150 16 65 16 150 2 / 3
18*45*18*100 18 45 18 100 2 / 3
18*70*18*150 18 70 18 150 2 / 3
20*45*20*100 20 45 20 100 2 / 3
20*70*20*150 20 70 20 150 2 / 3
