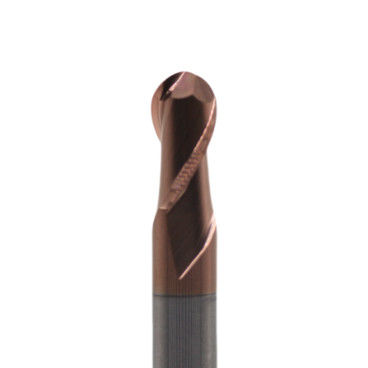

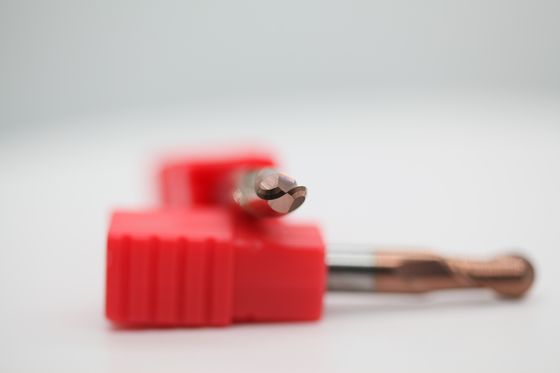

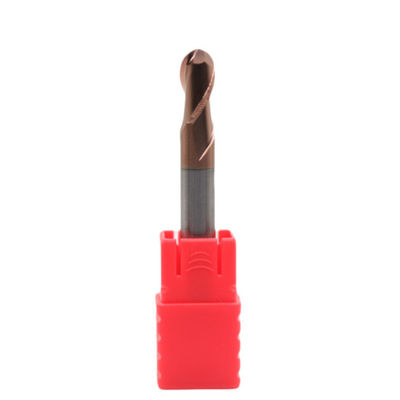

8mm Dia R48168150L 2Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron

8mm Dia R48168150L 2Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron

Brand Name:	BABOS
Model Number:	R48168150L-2F
MOQ:	10pcs
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	20,000PCS per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Cut Diameter:

8mm

Cut Length:

16mm

Shank Diameter:

8mm

Overall Length:

150mm

Coating/Finish Type:

TiAISiN

Machine Type:

Finish Machining, Roughing Machining

Application:

Milling And Cutting Of Carbon Steel, Malleable Cast Iron, Alloy Steel, Stainless Steel, Etc.

Tolerance:

-0.015mm~-0.040mm

Customize:

Available

Packaging Details:

Plastic Box

Highlight:

2Flutes Carbide Ball Nose End Mill

8mm Carbide Ball Nose End Mill

Product Description

8mm Dia R48168150L 2Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron

Product Description:

This 8mm Ball Nose End Mill features an extra-long 150mm overall length, making it ideal for deep cavity milling, 3D contouring, and mold & die work where extended reach is required. Crafted from high-quality carbide and finished with a durable TiAlSiN (Titanium Aluminum Silicon Nitride) coating, it ensures exceptional performance and tool life even under high-speed and dry machining conditions.

Specifications:

Cutting Diameter (Ball Nose): 8mm (R4 radius)
Flute Length: 8mm
Cutting Length: 16mm
Shank Diameter: 8mm
Overall Length: 150mm
Flutes: 2

Coating:

The TiAlSiN coating provides superior heat resistance, oxidation protection, and wear resistance—perfect for machining hard materials at high speeds.

Features:

Fine-grain carbide construction for toughness and stability
TiAlSiN coating for enhanced tool life and cutting performance
Ball nose geometry designed for fine surface finishing and complex 3D profiling
Extra-long design (150mm) for deep pocket and cavity milling
2-flute configuration optimizes chip removal and reduces cutting resistance

Applications:

Mold and die manufacturing
Deep cavity and pocket machining
Precision machining on carbon steel, alloy steel, cast iron, and other hard metals

2 Flutes Ball Nose End Mill Specifications (For Carbon Steel, Alloy Steel, Cast Iron)
Sizes	Cut Diameter D	Cut Length Lc	Shank Diameter d	Overall Length L	Flutes No.
R1.563*50	3	6	3	50	2
R1.563*75	3	6	3	75	2
R1.563*100	3	6	3	100	2
R0.524*50	1	2	4	50	2
R0.7534*50	1.5	3	4	50	2
R144*50	2	4	4	50	2
R1.2554*50	2.5	5	4	50	2
R1.564*50	3	6	4	50	2
R1.7574*50	3.5	7	4	50	2
R284*50	4	8	4	50	2
R284*75	4	8	4	75	2
R284*100	4	8	4	100	2
R0.524*75	1	2	4	75	2
R0.7534*75	1.5	3	4	75	2
R144*75	2	4	4	75	2
R1.2554*75	2.5	5	4	75	2
R1.564*75	3	6	4	75	2
R2.5105*50	5	10	5	50	2
R2.5105*75	5	10	5	75	2
R2.5105*100	5	10	5	100	2
R0.526*50	1	2	6	50	2
R0.7536*50	1.5	3	6	50	2
R146*50	2	4	6	50	2
R1.2556*50	2.5	5	6	50	2
R1.566*50	3	6	6	50	2
R286*50	4	8	6	50	2
R2.5106*50	5	10	6	50	2
R3126*50	6	12	6	50	2
R3126*75	6	12	6	75	2
R3126*100	6	12	6	100	2
R3126*150	6	12	6	150	2
R3.5148*60	7	14	8	60	2
R4168*60	8	16	8	60	2
R4168*75	8	16	8	75	2
R4168*100	8	16	8	100	2
R4168*150	8	16	8	150	2
R4.51810*75	9	18	10	75	2
R52010*75	10	20	10	75	2
R52010*100	10	20	10	100	2
R52010*150	10	20	10	150	2
R5.52212*75	11	22	12	75	2
R62412*75	12	24	12	75	2
R62412*100	12	24	12	100	2
R62412*150	12	24	12	150	2
R72814*80	14	28	14	80	2
R72814*100	14	28	14	100	2
R72814*150	14	28	14	150	2
R83216*100	16	32	16	100	2
R83216*150	16	32	16	150	2
R93618*100	18	36	18	100	2
R93618*150	18	36	18	150	2
R104020*100	20	40	20	100	2
R104020*150	20	40	20	150	2
