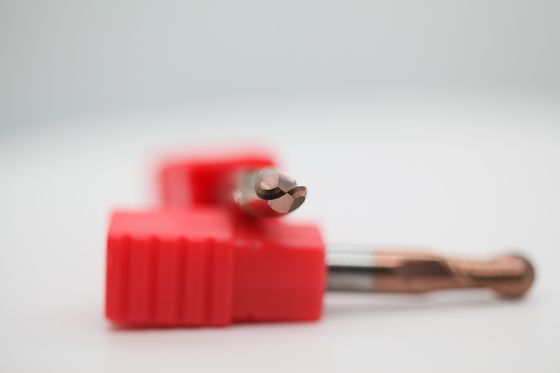

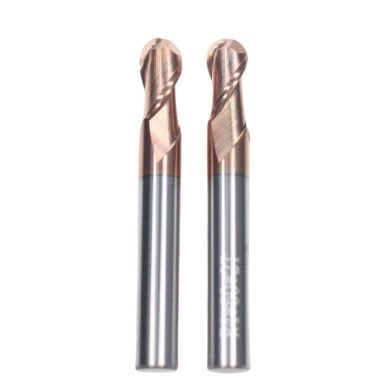

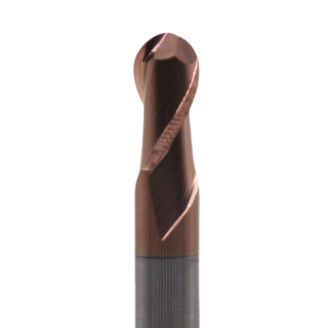

8mm Dia R4*8*16*8*60 2Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron

8mm Dia R4*8*16*8*60 2Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron
8mm Dia R4*8*16*8*60 2Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron
video play

Large Image :  8mm Dia R4*8*16*8*60 2Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron

Product Details:
Place of Origin: China
Brand Name: BABOS
Model Number: R4*8*16*8*60-2F
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Plastic Box
Delivery Time: 3 days for standard products, 1-2weeks for custom products.
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 20,000PCS per month
Contact Now
Detailed Product Description
Cut Diameter: 8mm Cut Length: 16mm
Shank Diameter: 8mm Overall Length: 60mm
Coating/Finish Type: TiAISiN Machine Type: Finish Machining, Roughing Machining
Application: Milling And Cutting Of Carbon Steel, Malleable Cast Iron, Alloy Steel, Stainless Steel, Etc. Tolerance: -0.015mm~-0.040mm
Customize: Available
Highlight:

2Flutes Carbide Ball Nose End Mill

,

R4*8*16*8*60 Carbide Ball Nose End Mill

,

8mm Carbide Ball Nose End Mill

8mm Dia R4*8*16*8*60 2Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron

Product Description:

The 8mm Ball Nose End Mill with TiAlSiN (Titanium Aluminum Silicon Nitride) coating is built for precision 3D machining and surface finishing in demanding applications. Its ball nose geometry is ideal for complex contoured surfaces, while the TiAlSiN coating boosts tool life and cutting performance on hard materials.



Specifications:

  • Cutting Diameter (Ball Nose): 8mm (R4 radius)
  • Flute Length: 8mm
  • Cutting Length: 16mm
  • Shank Diameter: 8mm
  • Overall Length: 60mm
  • Flutes: 2



8mm Dia R4*8*16*8*60 2Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron 0


2 Flutes Ball Nose End Mill Specifications
(For Carbon Steel, Alloy Steel, Cast Iron)
Sizes Cut Diameter
D		 Cut Length
Lc		 Shank Diameter
d		 Overall Length
L		 Flutes No.
R1.5*6*3*50 3 6 3 50 2
R1.5*6*3*75 3 6 3 75 2
R1.5*6*3*100 3 6 3 100 2
R0.5*2*4*50 1 2 4 50 2
R0.75*3*4*50 1.5 3 4 50 2
R1*4*4*50 2 4 4 50 2
R1.25*5*4*50 2.5 5 4 50 2
R1.5*6*4*50 3 6 4 50 2
R1.75*7*4*50 3.5 7 4 50 2
R2*8*4*50 4 8 4 50 2
R2*8*4*75 4 8 4 75 2
R2*8*4*100 4 8 4 100 2
R0.5*2*4*75 1 2 4 75 2
R0.75*3*4*75 1.5 3 4 75 2
R1*4*4*75 2 4 4 75 2
R1.25*5*4*75 2.5 5 4 75 2
R1.5*6*4*75 3 6 4 75 2
R2.5*10*5*50 5 10 5 50 2
R2.5*10*5*75 5 10 5 75 2
R2.5*10*5*100 5 10 5 100 2
R0.5*2*6*50 1 2 6 50 2
R0.75*3*6*50 1.5 3 6 50 2
R1*4*6*50 2 4 6 50 2
R1.25*5*6*50 2.5 5 6 50 2
R1.5*6*6*50 3 6 6 50 2
R2*8*6*50 4 8 6 50 2
R2.5*10*6*50 5 10 6 50 2
R3*12*6*50 6 12 6 50 2
R3*12*6*75 6 12 6 75 2
R3*12*6*100 6 12 6 100 2
R3*12*6*150 6 12 6 150 2
R3.5*14*8*60 7 14 8 60 2
R4*16*8*60 8 16 8 60 2
R4*16*8*75 8 16 8 75 2
R4*16*8*100 8 16 8 100 2
R4*16*8*150 8 16 8 150 2
R4.5*18*10*75 9 18 10 75 2
R5*20*10*75 10 20 10 75 2
R5*20*10*100 10 20 10 100 2
R5*20*10*150 10 20 10 150 2
R5.5*22*12*75 11 22 12 75 2
R6*24*12*75 12 24 12 75 2
R6*24*12*100 12 24 12 100 2
R6*24*12*150 12 24 12 150 2
R7*28*14*80 14 28 14 80 2
R7*28*14*100 14 28 14 100 2
R7*28*14*150 14 28 14 150 2
R8*32*16*100 16 32 16 100 2
R8*32*16*150 16 32 16 150 2
R9*36*18*100 18 36 18 100 2
R9*36*18*150 18 36 18 150 2
R10*40*20*100 20 40 20 100 2
R10*40*20*150 20 40 20 150 2



Applications:

  • 3D Contouring & Profiling
  • Surface Finishing
  • Deep Pocket & Cavity Machining
  • High-Speed & Dry Machining
  • Slotting & Roughing (in Soft to Medium-Hard Materials)


Applications:

  • Carbon Steel
  • Alloy Steel
  • Cast Iron
  • Tool Steel
  • Stainless Steel (in selected grades)

Industries:

  • Mold & Die Manufacturing
  • Aerospace & Automotive Part Production
  • Precision Engineering
  • Tool & Die Making
  • 3D Surface Finishing & Sculpted Surface Machining


Key Benefits of 2-Flute Ball Nose Design:

Excellent Chip Evacuation:

The 2-flute design provides a large flute space, crucial for effective chip removal when cutting deeper pockets or slots.

Reduced Cutting Forces:

Fewer flutes mean less contact with the material, resulting in lower cutting forces and reduced tool deflection—ideal for finishing cuts in harder materials.

Smooth Surface Finish:

The ball nose geometry allows for gradual entry and exit during cuts, leaving smooth surfaces, especially on contoured parts.
