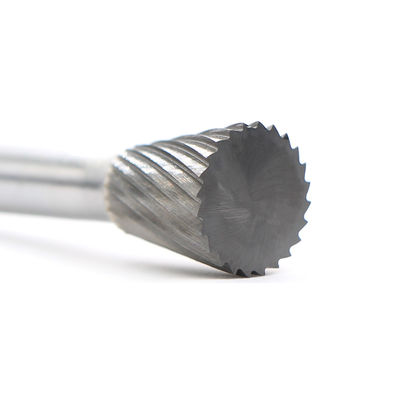

Single Cut Type N Inverted Cone Carbide Burr 6mm Shank Diameter 19mm Head Diameter Machining Surface Profile of Workpiece

Large Image : Single Cut Type N Inverted Cone Carbide Burr 6mm Shank Diameter 19mm Head Diameter Machining Surface Profile of Workpiece

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	N1916C06

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiable
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10,0000pcs per month

Contact Now

Detailed Product Description

Material:	Tungsten Carbide	Shape:	Inverted Cone
Cut Diameter:	19mm	Cut Length:	16mm
Shank Diameter:	6mm	Flute Type:	Single Cut
Suitable For:	Machining Surface Profile Of Workpiece	Application:	Deburring, Shaping, And Finishing
Package Quantity:	1	Max Rpm:	50,000
Highlight:	19mm Head Diameter Carbide Burr , 6mm Shank Diameter Carbide Burr , Single Cut Carbide Burr

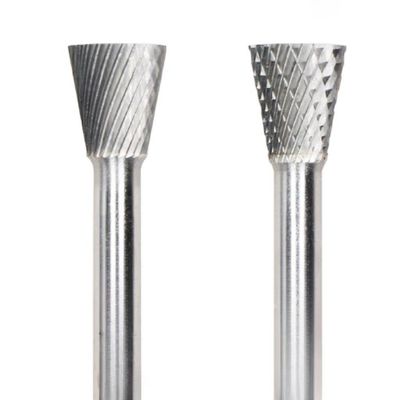

Type N Inverted Cone Carbide Burr 6mm Shank Diameter, 19mm Head Diameter With 16mm Cut Length

Solid Carbide Inverted Cone Burr 6mm Shank

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:19mm

Length of Flute: 16mm

Shank Diameter: 6mm

OAL: 61mm

Cut Type: Single Cut

Other Available Sizes Related to Type N Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Included Angle	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Included Angle	Tool No.	The Combination of Head and Shank
3	3	4	38	10°	N0304	Solid
	5	6	44	10°	N0506	Brazed
	6	7	45	10°	N0607	Brazed
6	6	7	52	10°	N0607	Brazed
	8	9	54	10°	N0809	Brazed
	10	10	55	20°	N1010	Brazed
	12	13	58	20°	N1213	Brazed
	16	16	61	20°	N1616	Brazed
	19	16	61	30°	N1916	Brazed
8	12	13	58	20°	N1213	Brazed
	16	16	61	20°	N1616	Brazed
	19	16	61	30°	N1916	Brazed
Inch Standard
Shank Dia. (inch)	Cutter Dia. (inch)	Length of Cut (inch)	Overall Length (inch)	Included Angle	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Included Angle	Tool No.	The Combination of Head and Shank
1/4''	1/4''	1/4''	1-3/4"	10	SN-51	Brazed
	3/8''	3/8"	2-1/9"	13°	SN-2	Brazed
	1/2''	1/2''	2-1/4"	28°	SN-4	Brazed
	5/8''	3/4''	2-1/2"	18°	SN-6	Brazed
	3/4''	5/8"	2-3/8"	30°	SN-7	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type N burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

ALUMINUM

CUT(W)

DIAMOND CUT(D)
