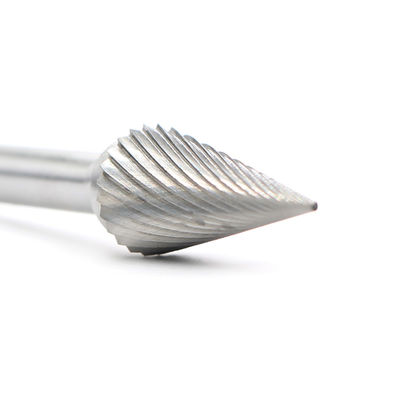

M Type 6mm*13mm Tungsten Carbide Burr Cone Pointed End Type With 6mm Shank

M Type 6mm*13mm Tungsten Carbide Burr Cone Pointed End Type With 6mm Shank

Brand Name:	BABOS
Model Number:	M0613C06
MOQ:	20pcs
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10,0000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Tungsten Carbide

Shape:

Cone Pointed End

Cut Diameter:

6mm

Cut Length:

13mm

Shank Diameter:

6mm

Flute Type:

Single Cut

Suitable For:

Machining Surface Profile Of Workpiece

Application:

Deburring, Shaping, And Finishing

Package Quantity:

Max Rpm:

50,000

Packaging Details:

Plastic Box

Highlight:

6mm Tungsten Carbide Burr

Cone Pointed End Tungsten Carbide Burr

13mm Tungsten Carbide Burr

Product Description

M Type 6mm*18mm Tungsten Carbide Burr Cone Pointed End Type With 6mm Shank

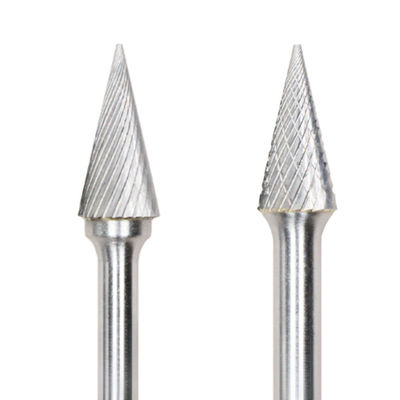

SM Tungsten Carbide Rotary Burr Cone Pointed End Type

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:6mm

Length of Flute: 13mm

Shank Diameter: 6mm

OAL: 53mm

Cut Type: Single Cut

Other Available Sizes Related to Type M Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Included Angle	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Included Angle	Tool No.	The Combination of Head and Shank
3	3	11	38	14°	M0311	Solid
	5	13	51	14°	M0513	Brazed
	6	13	51	14°	M0613	Brazed
6	6	18	53	14°	M0618	Brazed
	6	25	50	14°	M0625	Solid
	8	20	65	25°	M0820	Brazed
	10	20	65	25°	M1020	Brazed
	12	25	70	25°	M1225	Brazed
	16	25	70	31°	M1625	Brazed
8	12	25	70	25°	M1225	Brazed
8	16	25	70	31°	M1625	Brazed
Inch Standard
Shank Dia. (inch)	Cutter Dia. (inch)	Length of Cut (inch)	Overall Length (inch)	Included Angle	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Included Angle	Tool No.	The Combination of Head and Shank
1/8''	1/8''	7/16"	1-1/2"	14°	SM-42	Solid
1/4''	1/4''	1''	2"	10°	SM-3	Solid
	3/8''	3/4''	2-9/16"	28°	SM-4	Brazed
	1/2''	1"	2-3/4"	28°	SM-5	Brazed
	5/8''	1"	2-3/4"	31°	SM-6	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type M burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
