Tungsten Carbide Burr
Created with Pixso.

Flute Type Single Cut 12mm*28mm SL Taper Shape With Radius End Burr 6mm Shank Cut Length 28mm for Die Grinder Drill Bit

Flute Type Single Cut 12mm*28mm SL Taper Shape With Radius End Burr 6mm Shank Cut Length 28mm for Die Grinder Drill Bit

Brand Name: BABOS
Model Number: L1228C06
MOQ: 20pcs
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 10,0000pcs per month
Detail Information
Place of Origin:
China
Material:
Tungsten Carbide
Shape:
Taper Shape With Radius End
Cut Diameter:
12mm
Cut Length:
28mm
Shank Diameter:
6mm
Flute Type:
Single Cut
Suitable For:
Machining Surface Profile Of Workpiece
Application:
Deburring, Shaping, And Finishing
Package Quantity:
1
Max Rpm:
50,000
Packaging Details:
Plastic Box
Highlight:

12mm*28mm Single Cut Burr

,

6mm Shank Single Cut Burr

,

Radius End Single Cut Burr

Product Description

12mm*28mm SL Taper Shape With Radius End Single Cut Burr With 6mm Shank For Die Grinder Drill Bit



Description:

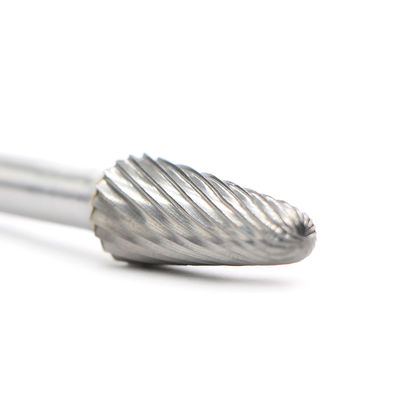

The SL tungsten carbide burr is a taper-shaped burr with a radius (rounded) end and a single-cut design. This burr is perfect for detailed cutting, grinding, deburring, and shaping tasks, especially in confined areas or on contoured surfaces. The tapered body and rounded end allow for precise control and versatility when working on various materials like metals, plastics, wood, and ceramics.

The SL single-cut burr is commonly used in metalworking, woodworking, automotive, and aerospace industries for tasks requiring precision and efficiency. It fits well with die grinders or rotary tools and is ideal for professionals needing to work on various materials with speed and control.



SL Taper Shape With Radius End Single Cut Burr


Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:12mm

Length of Flute: 28mm

Shank Diameter: 6mm

OAL: 73mm

Cut Type: Single Cut




Other Available Sizes Related to Type L Carbide Burrs Both in Metric and Inch Standard:


Metric Standard
Shank Dia. (mm) Cutter Dia. (mm) Length of Cut (mm) Overall Length (mm) Included Angle Tool No. The Combination of Head and Shank
d2 d1 l2 l1
3 3 13 38 L0313 Solid
5 13 38 10° L0513 Brazed
6 13 48 10° L0613 Brazed
6 6 16 51 14° L0616 Brazed
8 22 70 14° L08254 Brazed
10 25 70 14° L1025 Brazed
12 28 73 14° L1228 Brazed
16 33 78 14° L1633 Brazed
19 38 83 14° L1938 Brazed
8 12 28 73 14° L1228 Brazed
16 33 78 14° L1633 Brazed
19 38 83 14° L1938 Brazed
Inch Standard
Shank Dia. (inch) Cutter Dia. (inch) Length of Cut (inch) Overall Length (inch) Included Angle Tool No. The Combination of Head and Shank
d2 d1 l2 l1
1/8'' 1/8'' 1/2'' 1-1/2" SL-42 Solid
1/4'' 1/4'' 5/8" 2" 14° SL-1 Brazed
5/16" 7/8" 2-3/4" 14° SL-2 Brazed
1/2'' 1-1/8" 3" 14° SL-4 Brazed
5/8'' 1-5/16" 3-1/16" 14° SL-5 Brazed
5/8'' 1-7/16" 3-1/5" 14° SL-6 Brazed
3/4'' 1-5/8" 3-3/8" 14° SL-7 Brazed




Customization:

  1. Please send us the drawings or other important information if you need non-standard carbide burrs.
  2. Please contact us if you need more information about type L burrs or other shapes of burrs.
  3. OEM is avaliable.

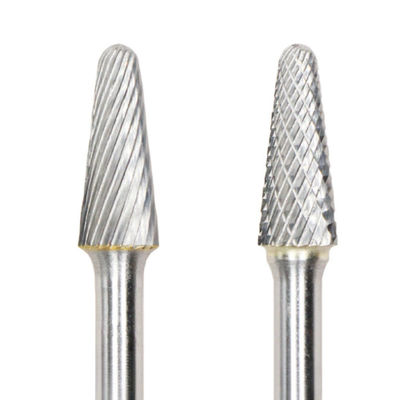

Cut Selection Guide:


STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
