90°Countersink SK Carbide Burr Single Cut Die Grinder Bit 10mm *5mm On 6mm Shank

Large Image : 90°Countersink SK Carbide Burr Single Cut Die Grinder Bit 10mm *5mm On 6mm Shank

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	K1005C06

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiable
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10,0000pcs per month

Contact Now

Detailed Product Description

Material:	Tungsten Carbide	Shape:	90°countersink
Cut Diameter:	10mm	Cut Length:	5mm
Shank Diameter:	6mm	Flute Type:	Single Cut
Suitable For:	Machining Surface Profile Of Workpiece	Application:	Deburring, Shaping, And Finishing
Package Quantity:	1	Max Rpm:	50,000
Highlight:	10mm *5mm Die Grinder Bit , 90°Countersink Die Grinder Bit , Single Cut Die Grinder Bit

90°Countersink SK Carbide Burr Single Cut Die Grinder Bit 10mm *5mm On 6mm Shank

Description:

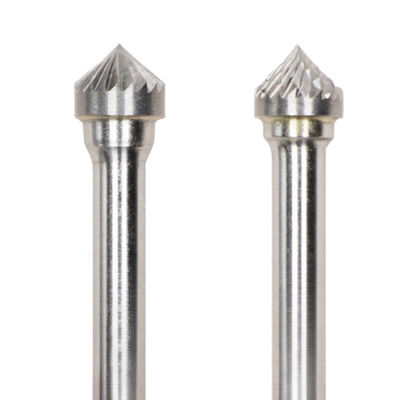

The SK 90° countersink carbide burr is a rotary tool with a conical shape designed for countersinking, chamfering, and deburring at a precise 90-degree angle. It is ideal for applications requiring a 90-degree bevel or countersink, commonly in materials like metal, wood, plastic, and more.

The SK carbide burr is commonly used in metalworking, woodworking, automotive, and aerospace industries for high-precision tasks requiring a larger cutting surface. It works effectively with die grinders or rotary tools, offering both efficiency and accuracy in professional settings.

90°Countersink SK Carbide Burr Single Cut

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:10mm

Length of Flute: 5mm

Shank Diameter: 6mm

OAL: 50mm

Cut Type: Single Cut

Other Available Sizes Related to Type K Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	3	2	38	K0302	Solid
6	6	3	48	K0603	Brazed
	8	4	52	K0804	Brazed
	10	5	53	K1005	Brazed
	12	6	54	K1206	Brazed
	16	8	57	K1608	Brazed
	19	9	58	K1909	Brazed
	25	12	61	K2512	Brazed
8	12	6	54	K1206	Brazed
	16	8	57	K1608	Brazed
	19	9	58	K1909	Brazed
	25	12	61	K2512	Brazed
Inch Standard
Shank Dia. (inch)	Cutter Dia. (inch)	Length of Cut (inch)	Overall Length (inch)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
1/8''	1/8"	1/16"	1-1/2"	SK-42	Solid
1/4''	1/4"	1/8"	2"	SK-1	Solid
	3/8"	3/16"	2-1/16"	SK-3	Brazed
	1/2"	1/4''	2-1/9"	SK-5	Brazed
	5/8"	5/16"	2-1/4"	SK-6	Brazed
	1"	1/2''	2-3/8"	SK-9	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type K burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

ALUMINUM

CUT(W)

DIAMOND CUT(D)
