8mm*20mm H Flame Tungsten Carbide Rotary File 6mm Shank Flame Shape Single Cut Rotary Burr

Large Image : 8mm*20mm H Flame Tungsten Carbide Rotary File 6mm Shank Flame Shape Single Cut Rotary Burr

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	H0820C06

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiable
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10,0000pcs per month

Contact Now

Detailed Product Description

Material:	Tungsten Carbide	Shape:	Flame Shape
Cut Diameter:	8mm	Cut Length:	20mm
Shank Diameter:	6mm	Flute Type:	Single Cut
Suitable For:	Machining Surface Profile Of Workpiece	Application:	Deburring, Shaping, And Finishing
Package Quantity:	1	Max Rpm:	50,000
Highlight:	8mm*20mm Tungsten Carbide Rotary File , 6mm Shank Tungsten Carbide Rotary File , Single Cut Tungsten Carbide Rotary File

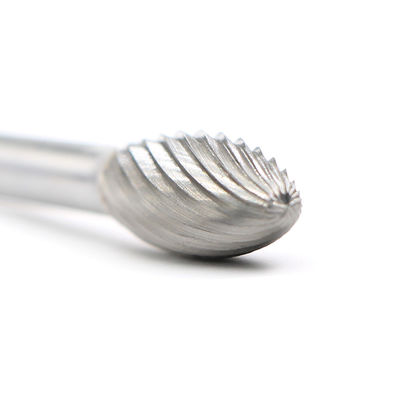

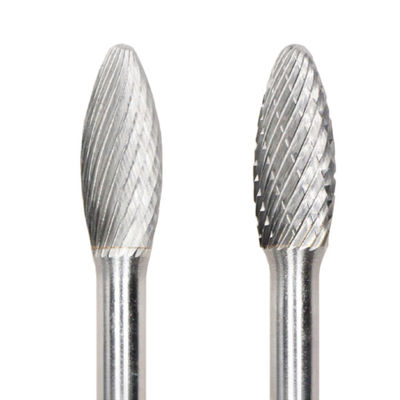

8mm*20mm H Flame Tungsten Carbide Rotary File 6mm Shank Flame Shape Single Cut Rotary Burr

The SH flame shape carbide burr is a Perfect for metal, steel, aluminum, iron,wood and acrylics.

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:8mm

Length of Flute: 20mm

Shank Diameter:6mm

OAL: 65mm

Cut Type: Single Cut

Other Available Sizes Related to Type H Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	3	13	38	H0313	Solid
	5	13	51	H0513	Brazed
	6	13	51	H0613	Brazed
6	6	18	63	H0618	Brazed
	8	20	65	H0820	Brazed
	10	25	70	H1025	Brazed
	12	32	77	H1232	Brazed
	16	36	81	H1636	Brazed
	19	41	86	H1941	Brazed
8	12	32	77	H1232	Brazed
	16	36	81	H1636	Brazed
	19	41	86	H1941	Brazed
Inch Standard
Shank Dia. (inch)	Cutter Dia. (inch)	Length of Cut (inch)	Overall Length (inch)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
1/8''	1/8"	1/4"	1-1/2"	SH-41	Solid
1/4''	1/4"	5/7"	2"	SH-1	Solid
	1/2"	1-1/4"	3"	SH-5	Brazed
	5/8"	1-7/16"	2003/1/5	SH-6	Brazed
	3/4"	1-5/8"	3-3/8"	SH-7	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type H burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

ALUMINUM

CUT(W)

DIAMOND CUT(D)
