SB Cylindrical With End Cut Carbide Burrs 19mm Cut Dia With 6mm Shank Dia Carbide Rotary Files

SB Cylindrical With End Cut Carbide Burrs 19mm Cut Dia With 6mm Shank Dia Carbide Rotary Files

Brand Name:	BABOS
Model Number:	B1925C06
MOQ:	20pcs
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10,0000 per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Tungsten Carbide

Shape:

Cylinder With End Cut

Cut Diameter:

19mm

Cut Length:

25mm

Shank Diameter:

6mm

Overall Length:

70mm

Flute Type:

Single Cut

Suitable For:

Machining Surface Profile Of Workpiece

Application:

Deburring, Shaping, And Finishing

Package Quantity:

1 Piece

Max Rpm:

50,000

Packaging Details:

Plastic Box

Highlight:

6mm Shank Dia Carbide Burrs

SB Cylindrical Carbide Burrs

19mm Cut Dia Carbide Burrs

Product Description

SB Cylindrical With End Cut Carbide Burrs 19mm Cut Dia With 6mm Shank Dia Carbide Rotary Files

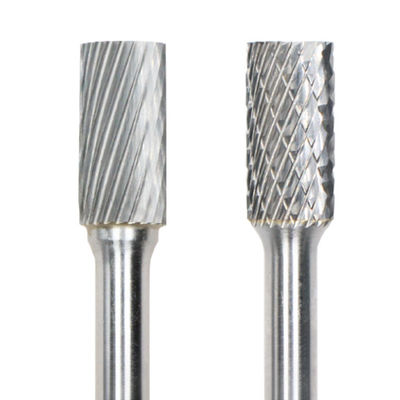

A shape carbide burrs and B shape carbide burrs are both cylindrical tungsten carbide burrs,but they have the following differences:

1.Shape and Cutting Edge

• A Shape:The end of the burr is plain without a cutting edge.

• B Shape:The end of the burr is equipped with a cutting edge.

2.Applications

• A Shape:Enlarging notches or holes, Removing broken screws, Chamfering, Deburring, Creating clean finishes for narrow and small spaces, Creating intricate details in various materials.

• B Shape:Removing surface flaws, Creating curves, Carving, Deburring edges of holes, Enlarging holes, Cutting grooves.

3.Suitability for Different Tasks

• A Shape:More suitable for tasks that require a plain end without the need for end cutting,such as deburring and chamfering in narrow spaces.

• B Shape:More versatile due to the end cutting edge,making it suitable for a wider range of tasks including surface flaw removal,hole enlargement,and groove cutting.

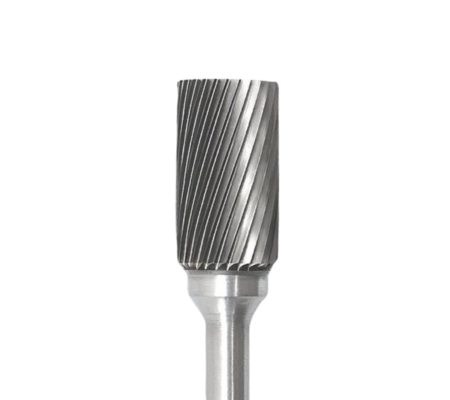

SB Cylindrical With End Cut Carbide Burrs 19mm Cut Dia With 6mm Shank Dia Carbide Rotary Files 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter: 19mm

Length of Flute: 25mm

Shank Diameter: 6mm

OAL: 70mm

Cut Type: Single Cut

Other Available Sizes Related to Type B Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Legth of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	1.5	6	38	B1506	Solid
	2	11	38	B0211	Solid
	2.5	12	38	B2512	Solid
	3	13	38	B0313	Solid
	4	13	51	B0413	Brazed
	5	13	51	B0513	Brazed
	6	13	51	B0613	Brazed
6	6	16	63	B0616	Brazed
	6	25	65	B0625	Solid
	8	20	65	B0820	Brazed
	10	20	70	B1020	Brazed
	11	25	70	B1125	Brazed
	12	25	70	B1225	Brazed
	16	25	70	B1625	Brazed
	19	25	70	B1925	Brazed
	25	25	70	B2525	Brazed
8	12	25	70	B1225	Brazed
	16	25	70	B1625	Brazed
	19	25	70	B1925	Brazed
	25	25	70	B2525	Brazed
Inch Standard
3/8''	7/8"	1"	2-3/4"	SB-8	Brazed
1/8''	1/16"	1/4"	1-1/2"	SB-41	Solid
1/8''	1/8"	9/16"	1-1/2"	SB-43	Solid
1/4''	5/32"	5/8"	2"	SB-13	Solid
	3/16"	5/8"	2''	SB-14	Solid
	1/4"	5/8"	2''	SB-1	Solid
	1/4"	1"	2''	SB-1L	Solid
	3/8"	3/4''	2-1/2"	SB-3	Brazed
	7/16"	1"	2-3/4"	SB-4	Brazed
	1/2"	1"	2-3/4"	SB-5	Brazed
	5/8"	1"	2-3/4"	SB-6	Brazed
	3/4"	1"	2-3/4"	SB-7	Brazed
	1"	1"	2-3/4"	SB-9	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type B burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
