12mm SA Cylinder Carbide Burrs 6mm Shank Without End Cut 70mm Overall Length Single Cut

12mm SA Cylinder Carbide Burrs 6mm Shank Without End Cut 70mm Overall Length Single Cut

Brand Name:	BABOS
Model Number:	A1225C06
MOQ:	20pcs
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10,0000 per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Tungsten Carbide

Shape:

Cylinder Without End Cut

Cut Diameter:

12mm

Cut Length:

25mm

Shank Diameter:

6mm

Overall Length:

70mm

Flute Type:

Single Cut

Suitable For:

Machining Surface Profile Of Workpiece

Application:

Deburring, Shaping, And Finishing

Package Quantity:

Max Rpm:

50,000

Packaging Details:

Plastic Box

Highlight:

Single Cut Cylinder Carbide Burrs

6mm Shank Cylinder Carbide Burrs

70mm Overall Length Cylinder Carbide Burrs

Product Description

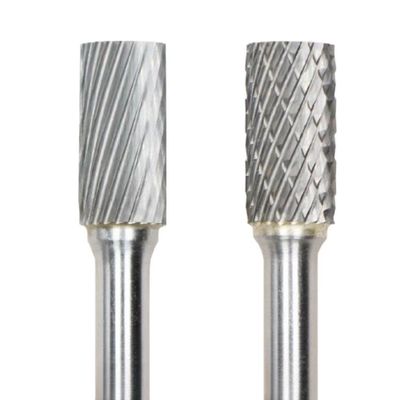

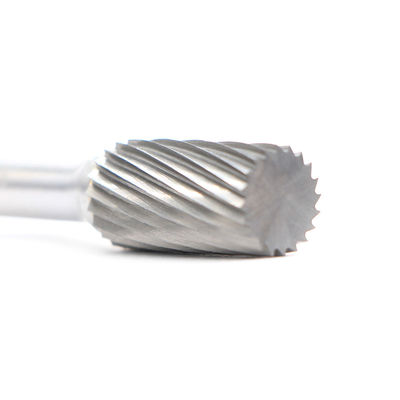

12mm SA Cylinder Carbide Burrs 6mm Shank Without End Cut 70mm Overall Length Single Cut

Description:

The SA tungsten carbide burr is a cylindrical-shaped rotary tool used for grinding, deburring, shaping, and smoothing materials like metal, wood, plastics, and ceramics. Made of tungsten carbide, one of the hardest materials available, it is highly durable and efficient at cutting through tough materials. Common uses include working on steel, stainless steel, cast iron, aluminum, and more in metalworking, woodworking, and even some hobbyist tasks like carving. It’s typically used with die grinders or rotary tools.

12mm SA Cylinder Carbide Burrs 6mm Shank Without End Cut 70mm Overall Length Single Cut 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter: 12mm

Length of Flute: 25mm

Shank Diameter: 6mm

OAL: 70mm

Cut Type: Single Cut

Other Available Sizes Related to SA Carbide Burrs Both In Metric And Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	1.5	6	38	A1506	Solid
	2	11	38	A0211	Solid
	2.5	12	38	A2512	Solid
	3	13	38	A0313	Solid
	4	13	51	A0413	Brazed
	5	13	51	A0513	Brazed
	6	13	51	A0613	Brazed
6	6	18	63	A0618	Brazed
	6	20	65	A0612	Brazed
	8	20	65	A0820	Brazed
	10	25	70	A1020	Brazed
	11	25	70	A1125	Brazed
	12	25	70	A1225	Brazed
	16	25	70	A1625	Brazed
	19	25	70	A1925	Brazed
	25	25	70	A2525	Brazed
8	12	25	70	A1225	Brazed
	16	25	70	A1625	Brazed
	19	25	70	A1925	Brazed
	25	25	70	A2525	Brazed
Inch Standard
1/8''	1/16"	1/4"	1-1/2"	SA-41	Solid
	3/32"	3/8"	1-1/2"	SA-63	Solid
	3/16"	1/2"	1/8"	SA-81	Brazed
1/4''	1/8"	1/2"	2"	SA-11	Brazed
	1/4"	1/2"	2''	SA-51	Brazed
	1/6"	1"	2''	SA-1L	Brazed
	5/16"	3/4''	2-1/2"	SA-2	Brazed
	3/8"	3/4''	2-1/2"	SA-3	Brazed
	7/16"	1"	3-1/4"	SA-4	Brazed
	1/2"	1"	2-3/4"	SA-5	Brazed
	5/8"	1"	2-3/4"	SA-6	Brazed
	3/4"	1"	2-3/4"	SA-7	Brazed
	7/8"	1"	2-3/4"	SA-8	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about SA type burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
