Ball Shape SD-42 1/8" Shank Tungsten Carbide Rotary File 1/8" Cut Dia. 9/16 Cut Depth" Die Grinder Bits

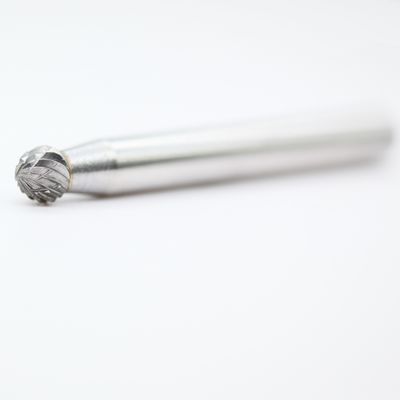

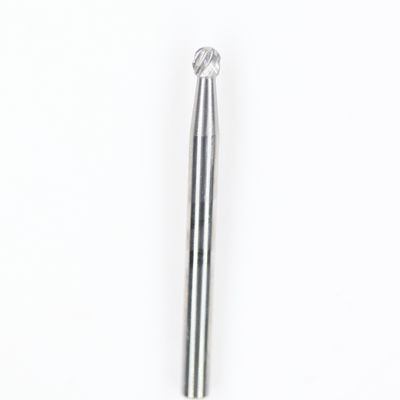

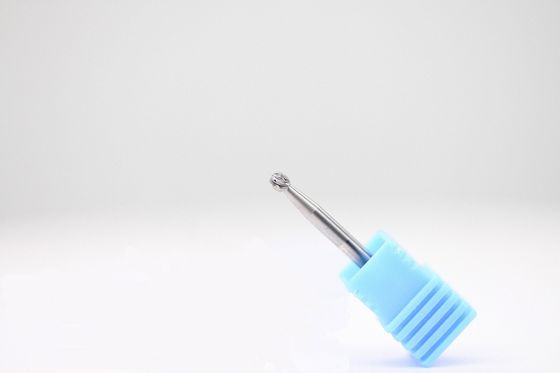

Large Image : Ball Shape SD-42 1/8" Shank Tungsten Carbide Rotary File 1/8" Cut Dia. 9/16 Cut Depth" Die Grinder Bits

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	SD-2

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiable
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10,0000pcs per month

Contact Now

Detailed Product Description

Material:	Tungsten Carbide	Shape:	Cylinder With End Cut
Cut Diameter:	1/8 Inch	Cut Length:	9/16 Inch
Shank Diameter:	1/8 Inch	Flute Type:	Standard Double Cut
Suitable For:	Machining Surface Profile Of Workpiece	Application:	Deburring, Shaping, And Finishing
Package Quantity:	1 Pcs	Max Rpm:	50,000
Highlight:	Ball Shape Tungsten Carbide Rotary File , 1/8" Shank Tungsten Carbide Rotary File

SD-42 Tungsten Carbide Rotary File Ball Shape With 1/8'' Shank 1/8" Cut Dia. 9/16" Cut Length

Ball Shape Carbide Burr On 1/4" Shank

Ball Shape SD-42 1/8" Shank Tungsten Carbide Rotary File 1/8" Cut Dia. 9/16 Cut Depth" Die Grinder Bits 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:1/8"

Length of Flute: 9/16"

Shank Diameter: 1/8"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type D Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	2	1.8	38	D0202	Solid
	2.5	2.3	38	D2525	Solid
	3	2.5	38	D0325	Solid
	4	3	41	D0403	Brazed
	5	4	42	D0504	Brazed
	6	5	43	D0605	Brazed
6	6	5	50	D0605	Brazed
	8	7	52	D0807	Brazed
	10	9	54	D1009	Brazed
	12	10	55	D1210	Brazed
	16	14	59	D1614	Brazed
	19	18	63	D1918	Brazed
	25	21	66	D2521	Brazed
8	12	10	56	D1210	Brazed
	16	14	59	D1614	Brazed
	19	18	63	D1918	Brazed
	25	21	66	D2521	Brazed
Inch Standard
1/8''	1/8"	1/8"	1-1/2"	SD-42	Solid
	3/16"	5/32"	1-1/2"	SD-53	Brazed
	1/4"	7/32"	1-3/4"	SD-51	Brazed
1/4''	3/16"	1/8"	2''	SD-14	Solid
	1/4"	7/32"	2''	SD-1	Solid
	3/8"	5/16"	2-1/16"	SD-3	Brazed
	7/16"	3/8"	2-1/7"	SD-4	Brazed
	1/2"	7/16"	2-1/5"	SD-5	Brazed
	5/8"	9/16"	2-1/3"	SD-6	Brazed
	3/4"	11/16"	2-4/9"	SD-7	Brazed
	1"	15/16"	2-7/8"	SD-9	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type D burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

ALUMINUM

CUT(W)

DIAMOND CUT(D)
