SM-43 1/8" Shank Solid Carbide Cone Pointed End Type Burr For Deburring, Milling, Cleaning, Finishing

Name: SM-43 1/8" Shank Solid Carbide Cone Pointed End Type Burr For Deburring, Milling, Cleaning, Finishing
Brand: CHENGDU BABOS CUTTING TECH CO.,LTD
SKU: SM-43
Availability: InStock

Brand Name:	BABOS
Model Number:	SM-43
MOQ:	20pcs
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10,0000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Tungsten Carbide

Shape:

Cone Pointed End

Cut Diameter:

1/8"

Cut Length:

5/8"

Shank Diameter:

1/8"

Flute Type:

Standard Double Cut

Suitable For:

Machining Surface Profile Of Workpiece

Application:

Deburring, Milling, Cleaning, Finishing

Package Quantity:

Max Rpm:

50,000

Packaging Details:

Plastic Box

Highlight:

SM-43 Tungsten Carbide Rotary Burr

Die Grinder Tungsten Carbide Rotary Burr

Product Description

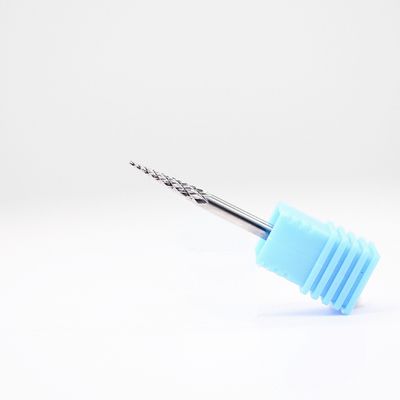

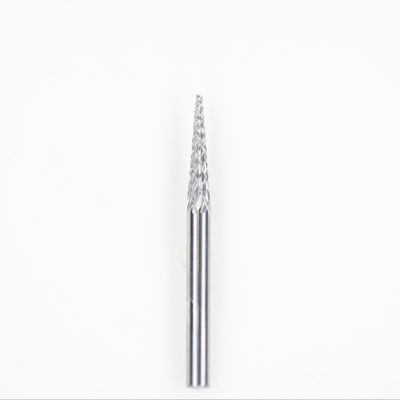

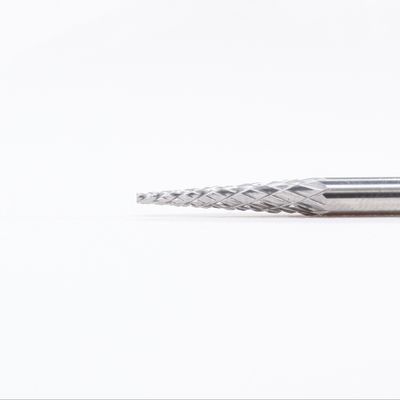

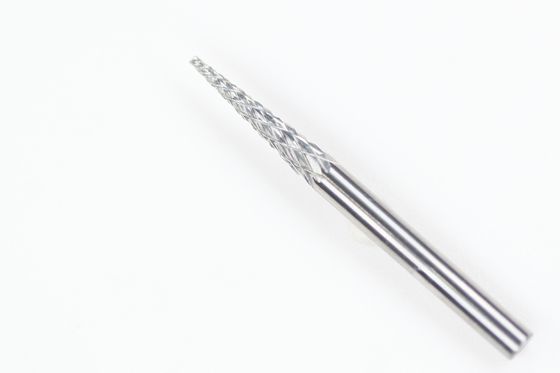

SM-43 1/8" Shank Solid Carbide Cone Pointed End Type Burr For Deburring, Milling, Cleaning, Finishing

SM-43 1/8" Shank Solid Carbide Cone Pointed End Type Burr For Deburring, Milling, Cleaning, Finishing 0

Brand: BABOS

Material:Solid Tungsten Carbide

Cut Diameter:1/8"

Length of Flute: 5/8"

Shank Diameter: 1/8"

Overall Length: 1-1/2"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type M Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Included Angle	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Included Angle	Tool No.	The Combination of Head and Shank
3	3	11	38	14°	M0311	Solid
	5	13	51	14°	M0513	Brazed
	6	13	51	14°	M0613	Brazed
6	6	18	53	14°	M0618	Brazed
	6	25	50	14°	M0625	Solid
	8	20	65	25°	M0820	Brazed
	10	20	65	25°	M1020	Brazed
	12	25	70	25°	M1225	Brazed
	16	25	70	31°	M1625	Brazed
8	12	25	70	25°	M1225	Brazed
8	16	25	70	31°	M1625	Brazed
Inch Standard
Shank Dia. (inch)	Cutter Dia. (inch)	Length of Cut (inch)	Overall Length (inch)	Included Angle	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Included Angle	Tool No.	The Combination of Head and Shank
1/8''	1/8''	7/16"	1-1/2"	14°	SM-42	Solid
1/4''	1/4''	1''	2"	10°	SM-3	Solid
	3/8''	3/4''	2-9/16"	28°	SM-4	Brazed
	1/2''	1"	2-3/4"	28°	SM-5	Brazed
	5/8''	1"	2-3/4"	31°	SM-6	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type M burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
