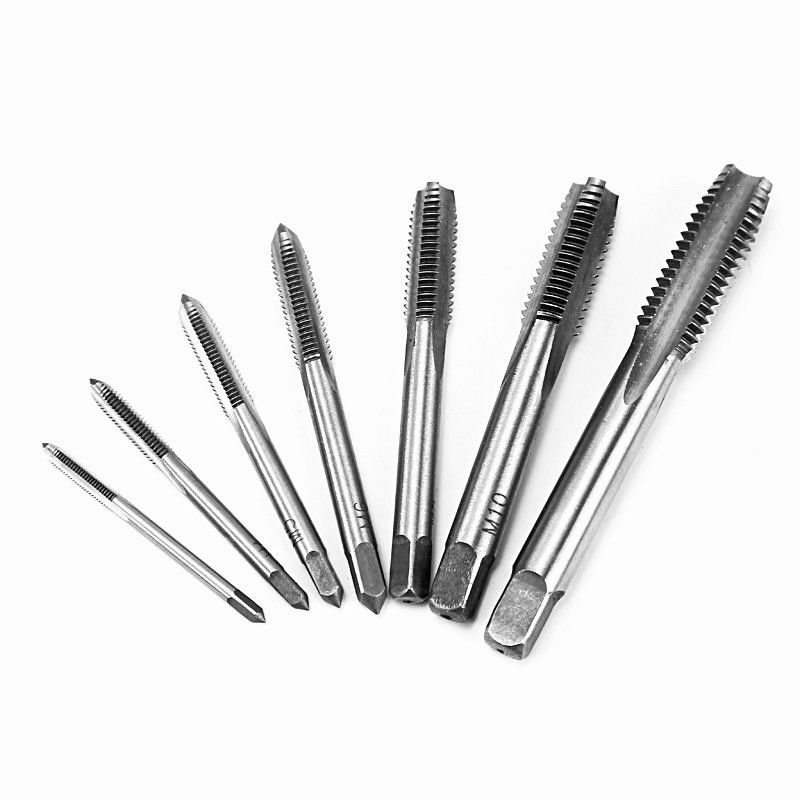

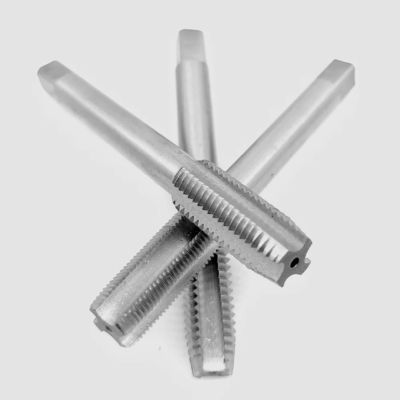

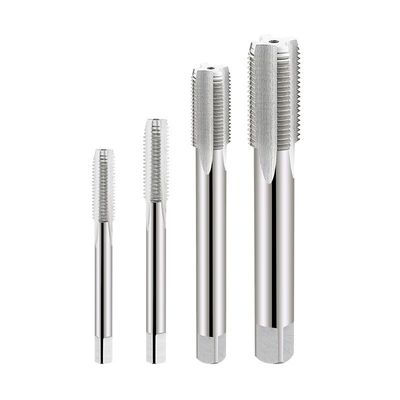

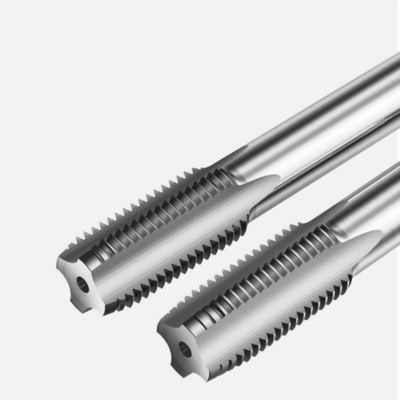

M12x 1.5 Straight Fluted Tap High Speed Steel With 4 Flutes For Through Hole And Blind Hole
Product Description:
M12 x 1.5 Thread Tap
The thread size is M12 x 1.5, which refers to the diameter and pitch of the thread. The design of the tap features a spiral flute, which helps with upward chip removal during the tapping process. This is a right-hand thread cutting tap with clear threads that have no burrs, ensuring a smooth and clean finish.
Efficient and Precise Tapping
The fast and accurate tapping achieved by this tap is due to its spiral flute design, which allows for efficient chip removal. This tap is ideal for use in various applications, such as in machine shops, automotive repair, and other mechanical tasks that require precision and speed.
Reliable and Durable
In summary, the M12 x 1.5 thread tap boasts a spiral flute design and right-hand threading for clear and burr-free results. Its fast and accurate tapping makes it a reliable tool for various applications.
Features:
- Thread Size: M12 * 1.5
- Thread Length: 22mm
- Overal Length:100mm
- Shank Dia.: 9mm
- Square Length: 10mm
- Square Width:7mm
- Material: High Speed Steel
- Package: 1pcs x Spiral Flute Tap
Technical Parameters:
| Product Name: |
HSS Machine Tap |
| Thread Pitch: |
1.5mm |
| Shank Type: |
Square End |
| Number Of Flutes: |
4 |
| Flute Type: |
Straight Flute |
| Surface Treatment: |
Bright Finish |
| Material: |
High Speed Steel |
Applications:
This versatile tool is perfect for process blind holes and hard to manage materials. The design allows for easy drilling and tapping of various materials, including aluminum, die steel, stainless steel, bronze, and even hard plastics.
Its unique features make it an excellent choice for those who need a reliable tool that can handle various jobs. Whether you need to drill a hole in a hard-to-reach place or tap out a thread in a sticky material, this tool is perfect for you.
Specifications:
Thread Size
(mm) |
TPI
(mm) |
Overal Length
(mm) |
Thread Length
(mm) |
Shank Diameter
(mm) |
Square Length
(mm) |
Square Width
(mm) |
No. of Flutes |
| M4 |
0.5 |
63 |
10 |
2.8 |
5 |
2.1 |
3 |
| M4.5 |
0.5 |
70 |
12 |
3.5 |
6 |
2.7 |
3 |
| M5 |
0.5 |
70 |
12 |
3.5 |
6 |
2.7 |
3 |
| M6 |
0.75 |
80 |
14 |
4.5 |
6 |
3.4 |
3 |
| M8 |
1 |
90 |
22 |
6 |
8 |
4.9 |
4 |
| M10 |
0.75 |
90 |
20 |
7 |
8 |
5.5 |
4 |
| M10 |
1 |
90 |
20 |
7 |
8 |
5.5 |
4 |
| M10 |
1.25 |
100 |
24 |
7 |
8 |
5.5 |
4 |
| M12 |
1 |
100 |
22 |
9 |
10 |
7 |
4 |
| M12 |
1.25 |
100 |
22 |
9 |
10 |
7 |
4 |
| M12 |
1.5 |
100 |
22 |
9 |
10 |
7 |
4 |
| M14 |
1 |
100 |
22 |
11 |
12 |
9 |
4 |
| M14 |
1.25 |
100 |
22 |
11 |
12 |
9 |
4 |
| M14 |
1.5 |
100 |
22 |
11 |
12 |
9 |
4 |
| M16 |
1 |
100 |
22 |
12 |
12 |
9 |
4 |
| M16 |
1.5 |
100 |
22 |
12 |
12 |
9 |
4 |
| M18 |
1 |
110 |
25 |
14 |
14 |
11 |
4 |
| M18 |
1.5 |
110 |
25 |
14 |
14 |
11 |
4 |
