M16 X 1.25 Forming Tap Carbide Steel Thread Milling Cutter For Aluminum Stainless Steel Machining

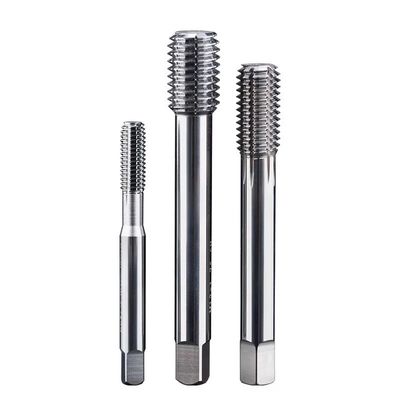

Large Image : M16 X 1.25 Forming Tap Carbide Steel Thread Milling Cutter For Aluminum Stainless Steel Machining

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	MF16*1.5100015-Carbide

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiable
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

Surface Treatment:	Bright Finish	Thread Pitch:	1mm
Shank Type:	Round Shank With Square End	Cooling Method:	Internal Cooling
Material:	Tungsten Carbide	Processed Materials:	Medium Strength Materials
Highlight:	M16 x 1.25 Forming Tap , Forming Tap Carbide Steel , Thread Milling Cutter For Aluminum Machining

M16*1.25 Forming Tap Carbide Steel Thread Milling Cutter For Aluminum Stainless Steel Machining

Product Description:

The solid carbide tap offers many benefits for those working in the machining industry. Its superior hardness and durability make it an ideal choice for drilling and forming holes in tough materials. Just be sure to handle it with care to avoid any accidents or damage to the tool.

Features:

Product Name: Carbide Machine Tap
Surface Treatment: Bright Finish
Shank Type: Round Shank With Square End
Thread Pitch: 1.25mm
Cooling Method: Internal Cooling

This Machine Tap is a forming Tap made of tungsten carbide. It is a high quality tool designed for use in machines.

Technical Parameters:

Material	Tungsten Carbide
Cooling Method	Internal Cooling
Shank Type	Round Shank With Square End
Surface Treatment	Bright Finish
Thread Pitch	1.25mm

Applications:

This Solid Carbide Machine Tap is suitable for short through hole, blind hole threading.

Applicable materials: Aluminum, stainless steel, die steel, cast iron, alloy steel Modulated steel, tool steel, etc.

Applicable equipment: CNC machining centers, CNC machine tools, etc.

Product Specifications:

Item No.	Thread Size (mm)	TPI (mm)	Overal Length (mm)	Thread Length (mm)	Shank Diameter (mm)	Square Length (mm)	Square Width (mm)
FM8*0.75080010-Carbide	M8	0.75	80	10	6	8	4.9
FM8*1090010-Carbide	M8	1	90	10	6	8	4.9
FM10*0.75090012-Carbide	M10	0.75	90	12	6	8	4.9
FM10*1090012-Carbide	M10	1	90	12	7	8	5.5
FM10*1.25100012-Carbide	M10	1.25	100	12	7	8	5.5
FM12*1100015-Carbide	M12	1	100	15	9	10	7
FM12*1.25100015-Carbide	M12	1.25	100	15	9	10	7
FM12*1.5100015-Carbide	M12	1.5	100	15	9	10	7
MF14*1100015-Carbide	M14	1	100	15	11	12	9
MF14*1.25100015-Carbide	M14	1.25	100	15	11	12	9
MF14*1.5100015-Carbide	M14	1.5	100	15	11	12	9
MF16*1100015-Carbide	M16	1	100	15	12	12	9
MF16*1.5100015-Carbide	M16	1.5	100	15	12	12	9

M16 X 1.25 Forming Tap Carbide Steel Thread Milling Cutter For Aluminum Stainless Steel Machining 0
