5mm Short Flutes Extra Long End Mills Corner Radius End Mill TiAISiNX Coated Carbide End Mill

5mm Short Flutes Extra Long End Mills Corner Radius End Mill TiAISiNX Coated Carbide End Mill

HRC 45°:Raw Material: Use YG10X with 10% Co content and 0.8um grain size
HRC 55°:Raw Material: Use ZK30UF with 10% Co content and 0.6um grain size
HRC 65°:Raw Material: Use GU25UF with 12% Co content and 0.4um grain size
HRC 60°:Raw Material: Use ZK40SF with 12% Co content and 0.6um grain size.

Product Description:

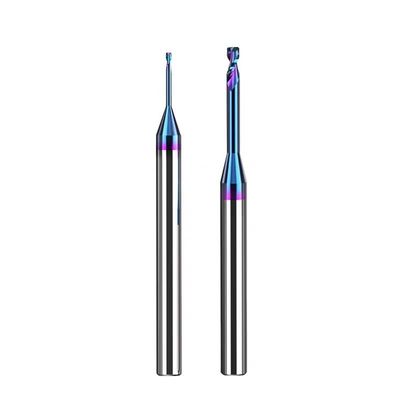

An HRC65 Carbide 2 Flutes Long Neck Short Flutes Corner Radius End Mill withTiAISiNX coatings is a precision cutting tool designed for machining hard materials with high accuracy.

Advantages:

• Increased Tool Life:TiAISiNX coatings offers superior wear resistance, reducing tool replacement frequency and ensuring consistent performance.
• Enhanced Heat Resistance: These coatings enable the tool to operate effectively at high speeds and temperatures, which is critical when working with harder materials.
• Precision and Stability: The combination of short flutes and a long neck allows for stable, vibration-free cutting, making the tool ideal for intricate and precise machining tasks.
• Improved Chip Evacuation: The 2-flute design and coatings help prevent chip clogging and heat buildup, ensuring smooth, efficient cutting performance, particularly in hard materials.

Features:

• Product Name:2 Flutes Long Neck Short Flutes Corner Radius End Mill
• Cut Diameter: 3mm
• Cut Length: 5mm
• Shank Diameter: 6mm
• Effective Length: 20mm
• Overall Length: 50mm
• Sample Order: Accepted
• Coating/Finish Type: TiAISiNX
• Flute Type: Corner Radius
• Customize: Available

Technical Parameters:

Applications:

• High-Precision Machining: Ideal for industries like aerospace, mold and die manufacturing, and automotive, where high accuracy is required when machining hardened steels, titanium, and high-temperature alloys.
• Deep Pocket Milling: The long neck allows for machining deep cavities and hard-to-reach areas without tool deflection or vibration, making it useful in 6D milling and contouring.
• Slotting and Pocketing: The 2-flute design is particularly well-suited for cutting slots and pockets in hard materials while maintaining smooth chip evacuation.
• Finishing Operations: Short flutes provide high rigidity, reducing deflection and enabling smooth finishing passes with excellent surface quality.
• Hard Material Machining: Specifically designed for cutting hardened steels, titanium alloys, and superalloys up to 65 HRC, particularly in high-speed machining (HSM) or dry cutting conditions.
