Home Products Drill Bit

HRC55 Solid Carbide Drill Bit 3D Tungsten Carbide Twist Drills For Metal TiSiN Coated

All Products

Tungsten Carbide Burr (96)

Annular Cutter (28)

Milling Cutter (61)

Circular Saw (4)

Screw Tap (9)

Drill Bit (17)

China CHENGDU BABOS CUTTING TECH CO.,LTD certification

I'm Online Chat Now

HRC55 Solid Carbide Drill Bit 3D Tungsten Carbide Twist Drills For Metal TiSiN Coated

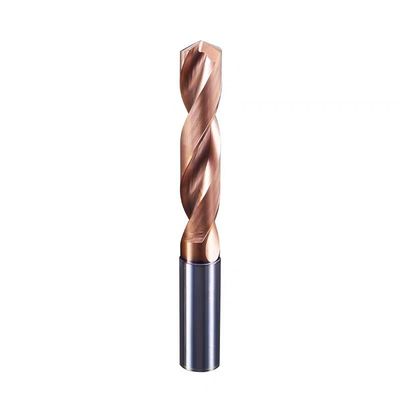

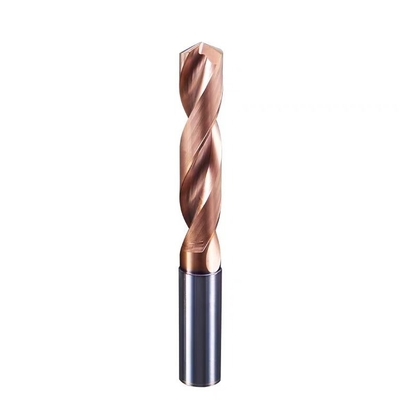

Large Image : HRC55 Solid Carbide Drill Bit 3D Tungsten Carbide Twist Drills For Metal TiSiN Coated

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	BBSTD3D55120

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10,000PCS per month

Contact Now

Detailed Product Description

Cut Diameter:	12mm	Cut Length:	54mm
Shank Diameter:	12mm	Overall Length:	102mm
Material:	Solid Carbide	Coating/Finish Type:	TiSiN
Machine Type:	CNC Machines	Grade Of Coating:	ZK30UF With 10% Co Content And 0.6um Grain Size
Application:	Centering And Countersinking On CNC Machines	Tolerance:	0.000mm~-0.050mm
Customize:	Available	Number Of Flutes:	2
Highlight:	HRC55 Solid Carbide Drill Bit , Solid Carbide Drill Bit 3D , Tungsten carbide twist drills

HRC55 Solid Carbide Twist Drills 3D Tungsten Carbide Drill Bit For Metal TiSiN Coated

Product Description:

HRC55 3D Solid Carbide Twist Drill is a high-performance drilling tool known for its versatility and precision and used for gray cast iron, ductile iron, stainless steel,alloy steel, and other common materials processing.

Features:

Product Name:HRC55 3D Solid Carbide Twist Drill
Material: Tungsten Carbide
Application/Usage: Metal drilling
Applicable Materials: gray cast iron, ductile iron, stainless steel,alloy steel, and other common materials

Technical Parameters:

Product Material	Tungsten Carbide
Flute Number	2
Coating/Finish Type	AITiN
Tolerance	0.000mm~-0.050mm
Machine Type	CNC machines
Customize	Available
OEM	Available
Sample Order	Accepted

Product Specifications:

HRC55 Solid Carbide Twist Drill(3D)
HRC 55°:Raw Material: Use ZK30UF with 10% Co content and 0.6um grain size.
Standard Length					Coating:TiSiN HRC 55°	Standard Length					Coating:TiSiN HRC 55°
Standard Length					Coating:TiSiN HRC 55°	Standard Length					Coating:TiSiN HRC 55°
Cut Dia.	Cut Length.	Shank Dia.	Overal Length.	Flutes	Order No.	Cut Dia.	Cut Length.	Shank Dia.	Overal Length.	Flutes	Order No.
D(mm)	Lc(mm)	d(mm)	L(mm)	Flutes	Order No.	D(mm)	Lc(mm)	d(mm)	L(mm)	Flutes	Order No.
1	12	3	42	2	BBSTD3D55010	10.1	51	11	95	2	BBSTD3D55101
1.1				2	BBSTD3D55011	10.2				2	BBSTD3D55102
1.2				2	BBSTD3D55012	10.3				2	BBSTD3D55103
1.3				2	BBSTD3D55013	10.4				2	BBSTD3D55104
1.4				2	BBSTD3D55014	10.5				2	BBSTD3D55105
1.5				2	BBSTD3D55015	10.6				2	BBSTD3D55106
1.6				2	BBSTD3D55016	10.7				2	BBSTD3D55107
1.7				2	BBSTD3D55017	10.8				2	BBSTD3D55108
1.8				2	BBSTD3D55018	10.9				2	BBSTD3D55109
1.9				2	BBSTD3D55019	11				2	BBSTD3D55110
2				2	BBSTD3D55020	11.1	54	12	102	2	BBSTD3D55111
2.1	14	3	50	2	BBSTD3D55021	11.2				2	BBSTD3D55112
2.2				2	BBSTD3D55022	11.3				2	BBSTD3D55113
2.3				2	BBSTD3D55023	11.4				2	BBSTD3D55114
2.4				2	BBSTD3D55024	11.5				2	BBSTD3D55115
2.5				2	BBSTD3D55025	11.6				2	BBSTD3D55116
2.6				2	BBSTD3D55026	11.7				2	BBSTD3D55117
2.7				2	BBSTD3D55027	11.8				2	BBSTD3D55118
2.8				2	BBSTD3D55028	11.9				2	BBSTD3D55119
2.9				2	BBSTD3D55029	12				2	BBSTD3D55120
3				2	BBSTD3D55030	12.1	57	13	102	2	BBSTD3D55121
3.1	20	4	60	2	BBSTD3D55031	12.2				2	BBSTD3D55122
3.2				2	BBSTD3D55032	12.3				2	BBSTD3D55123
3.3				2	BBSTD3D55033	12.4				2	BBSTD3D55124
3.4				2	BBSTD3D55034	12.5				2	BBSTD3D55125
3.5				2	BBSTD3D55035	12.6				2	BBSTD3D55126
3.6				2	BBSTD3D55036	12.7				2	BBSTD3D55127
3.7				2	BBSTD3D55037	12.8				2	BBSTD3D55128
3.8				2	BBSTD3D55038	12.9				2	BBSTD3D55129
3.9				2	BBSTD3D55039	13				2	BBSTD3D55130
4				2	BBSTD3D55040	13.1	60	14	107	2	BBSTD3D55131
4.1	24	5	62	2	BBSTD3D55041	13.2				2	BBSTD3D55132
4.2				2	BBSTD3D55042	13.3				2	BBSTD3D55133
4.3				2	BBSTD3D55043	13.4				2	BBSTD3D55134
4.4				2	BBSTD3D55044	13.5				2	BBSTD3D55135
4.5				2	BBSTD3D55045	13.6				2	BBSTD3D55136
4.6				2	BBSTD3D55046	13.7				2	BBSTD3D55137
4.7				2	BBSTD3D55047	13.8				2	BBSTD3D55138
4.8				2	BBSTD3D55048	13.9				2	BBSTD3D55139
4.9				2	BBSTD3D55049	14				2	BBSTD3D55140
5				2	BBSTD3D55050	14.1	62	15	111	2	BBSTD3D55141
5.1	28	6	66	2	BBSTD3D55051	14.2				2	BBSTD3D55142
5.2				2	BBSTD3D55052	14.3				2	BBSTD3D55143
5.3				2	BBSTD3D55053	14.4				2	BBSTD3D55144
5.4				2	BBSTD3D55054	14.5				2	BBSTD3D55155
5.5				2	BBSTD3D55055	14.6				2	BBSTD3D55146
5.6				2	BBSTD3D55056	14.7				2	BBSTD3D55147
5.7				2	BBSTD3D55057	14.8				2	BBSTD3D55148
5.8				2	BBSTD3D55058	14.9				2	BBSTD3D55149
5.9				2	BBSTD3D55059	15				2	BBSTD3D55150
6				2	BBSTD3D55060	15.1	64	16	115	2	BBSTD3D55151
6.1	34	7	74	2	BBSTD3D55061	15.2				2	BBSTD3D55152
6.2				2	BBSTD3D55062	15.3				2	BBSTD3D55153
6.3				2	BBSTD3D55063	15.4				2	BBSTD3D55154
6.4				2	BBSTD3D55064	15.5				2	BBSTD3D55155
6.5				2	BBSTD3D55065	15.6				2	BBSTD3D55156
6.6				2	BBSTD3D55066	15.7				2	BBSTD3D55157
6.7				2	BBSTD3D55067	15.8				2	BBSTD3D55158
6.8				2	BBSTD3D55068	15.9				2	BBSTD3D55159
6.9				2	BBSTD3D55069	16				2	BBSTD3D55160
7				2	BBSTD3D55070	16.1	66	17	119	2	BBSTD3D55161
7.1	40	8	79	2	BBSTD3D55071	16.2				2	BBSTD3D55162
7.2				2	BBSTD3D55072	16.3				2	BBSTD3D55163
7.3				2	BBSTD3D55073	16.4				2	BBSTD3D55164
7.4				2	BBSTD3D55074	16.5				2	BBSTD3D55165
7.5				2	BBSTD3D55075	16.6				2	BBSTD3D55166
7.6				2	BBSTD3D55076	16.7				2	BBSTD3D55167
7.7				2	BBSTD3D55077	16.8				2	BBSTD3D55168
7.8				2	BBSTD3D55078	16.9				2	BBSTD3D55169
7.9				2	BBSTD3D55079	17				2	BBSTD3D55170
8				2	BBSTD3D55080	17.1	66	18	123	2	BBSTD3D55171
8.1	43	9	84	2	BBSTD3D55081	17.2				2	BBSTD3D55172
8.2				2	BBSTD3D55082	17.3				2	BBSTD3D55173
8.3				2	BBSTD3D55083	17.4				2	BBSTD3D55174
8.4				2	BBSTD3D55084	17.5				2	BBSTD3D55175
8.5				2	BBSTD3D55085	17.6				2	BBSTD3D55176
8.6				2	BBSTD3D55086	17.7				2	BBSTD3D55177
8.7				2	BBSTD3D55087	17.8				2	BBSTD3D55178
8.8				2	BBSTD3D55088	17.9				2	BBSTD3D55179
8.9				2	BBSTD3D55089	18				2	BBSTD3D55180
9				2	BBSTD3D55090	18.1	70	19	127	2	BBSTD3D55181
9.1	47	10	89	2	BBSTD3D55091	18.2				2	BBSTD3D55182
9.2				2	BBSTD3D55092	18.5				2	BBSTD3D55185
9.3				2	BBSTD3D55093	19				2	BBSTD3D55190
9.4				2	BBSTD3D55094	19				2	BBSTD3D55190
9.5				2	BBSTD3D55095	19.1	70	20	131	2	BBSTD3D55191
9.6				2	BBSTD3D55096	19.2					BBSTD3D55192
9.7				2	BBSTD3D55097	19.5					BBSTD3D55195
9.8				2	BBSTD3D55098	19.7					BBSTD3D55197
9.9				2	BBSTD3D55099	20					BBSTD3D55120
10				2	BBSTD3D55100	20					BBSTD3D55120
