products details

Home Products

Tungsten EDM Electrode Rod EDM Electrode Tube EDM Electrode Off-centered Tube Micro Hole EDM Drilling Rod

Brand Name:	BABOS
MOQ:	5pcs
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20,000PCS per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

Plastic Box

Highlight:

Micro Hole EDM Electrode Rod

Off-centered Tube EDM Electrode Rod

Tube EDM Electrode Rod

Product Description

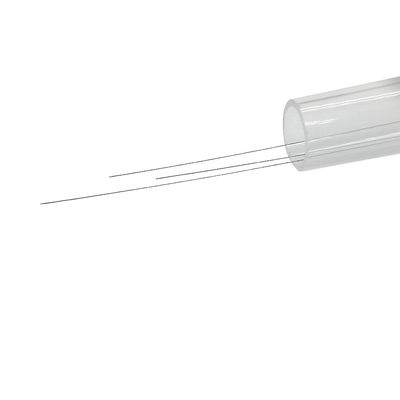

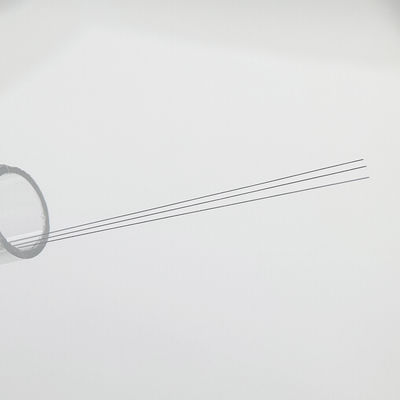

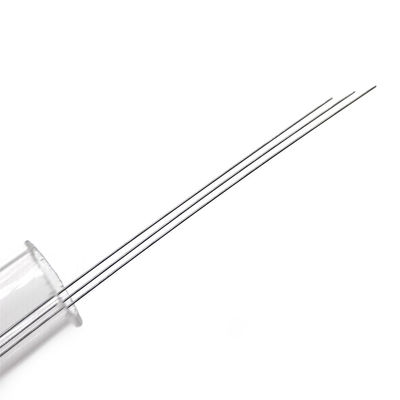

Tungsten Micro hole EDM drilling rod made by BABOS carbide Cutting Tools with high precision and fine rounded, mainly used on EDM drilling machines for drilling micro hole.

Outline

Brand	BABOS
Manufacturer	CHENGDU BABOS CUTTING TECH CO.,LTD
Product Name	EDM DRILL ELECTRODES
Type of Production	Tungsten Carbide EDM Electrode Rod Tungsten Carbide EDM Electrode Tube Tungsten Carbide EDM Electrode Off-centered Tube
Product Dimensions	Standard or Customized
Attainable Precision	0.001mm
Product Material	Tungsten Carbide
OEM	Available
Free Sample	Available
MOQ	5 pcs

Specification

EDM DRILL ELECTRODES
Type of Production	Diameter (mm)	Length (mm) Customizable
EDM Electrode Rod	0.03 - 3.00	150 - 400
EDM Electrode Tube EDM Electrode Off-centered Tube	0.10 - 3.00	150 - 400

Note

1, when the target material is extremely hard. If copper EDM electrodes is not strong enough for a particular application, select tungsten carbide EDM electrodes.

2, when the hole need to be drilled is small (≤ 0.1mm), and it is hard target material, select tungsten carbide EDM electrodes, the non-hard target material select pure tungsten EDM electrodes, which is more cost-effective. Because the diameter of tungsten carbide EDM electrodes and pure tungsten EDM electrodes can be as small as 0.03mm, and the diameter of copper EDM electrodes can only be as small as 0.1mm.

3, when the target material is soft and the hole need to be drilled is not too small (＞ 0.1mm), it is not recommended to use tungsten carbide EDM electrodes. Because When copper EDM electrodes can achieve the same effect, the use of tungsten carbide EDM electrodes will increase the cost much.

4, when the blind hole is required to be drilled, and the hole does not leave any residue, select the EDM electrode Off-centered tube.
