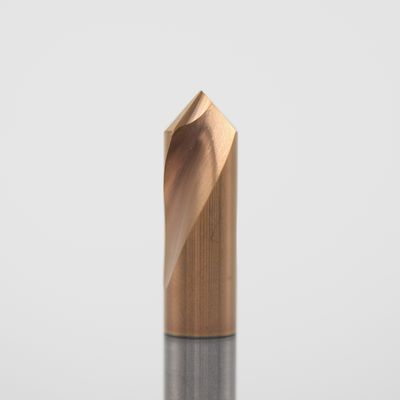

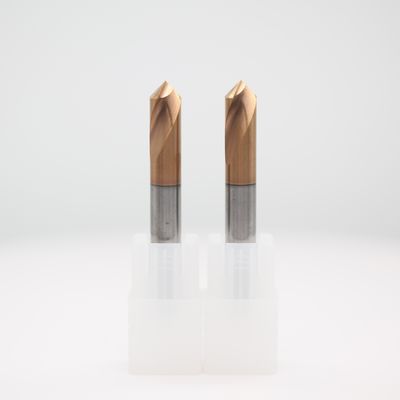

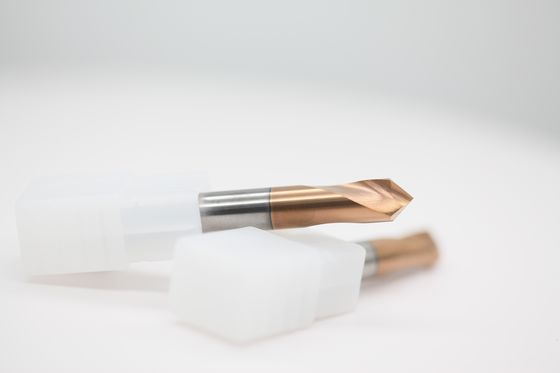

HRC55 Spotting Drill Bit 2 Flutes NC Spoting Drill Carbide Spot Drill 120mm TiSiN Coated

HRC55 Spotting Drill Bit 2 Flutes NC Spoting Drill Carbide Spot Drill 120mm TiSiN Coated

HRC55 Spotting Drill Bit 2 Flutes NC Spoting Drill Carbide Spot Drill 120mm TiSiN Coated

Brand Name: BABOS
Model Number: NC550808060120
MOQ: 10pcs
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10,000PCS per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Material:
Solid Carbide
Cut Diameter:
8mm
Shank Diameter:
8mm
Cut Length:
60mm
Coating/Finish Type:
TiSiN
Overall Length:
120mm
Point Angle:
90°/120°
Number Of Flutes:
2
Machine Type:
CNC Machines
Grade Of Coating:
ZK30UF With 10% Co Content And 0.6um Grain Size
Application:
Centering And Countersinking On CNC Machines
Tolerance:
-0.015~-0.040
Customize:
Available
Direction Of Cut:
Right Hand
Packaging Details:
Plastic Box
Highlight:

HRC55 Spotting Drill Bit

,

Spotting Drill Bit 2 Flutes

,

carbide spot drill 120mm

Product Description

Product Description:

The HRC55 Solid Carbide 2 Flutes NC Spotting Drill is a specialized tool designed for precision machining.



Features:

  • Product Name:HRC55 2 Flutes NC Spoting Drill
  • Material: Tungsten Carbide
  • Point Angle: 90 Degrees
  • Application/Usage: Metalworking
  • Applicable Materials: Cement, cast Iron, Steel, Stainless Steel, Titanium and other Non-Ferrous Materials.


Technical Parameters:

Product Material Tungsten Carbide
Flute Number 2
Coating/Finish Type TiSiN
Helix Angle 90 Degrees
Tolerance -0.015mm~-0.040mm
Machine Type CNC machines
Customize Available
OEM Available
Sample Order Accepted


Applications:

The BABOS NC Spoting Drill is deal for chamfering, spot drilling, hole centering accuracy and countersinking.  We offer Cobalt NC Spoting Drill with an 90°/120° point angle.
