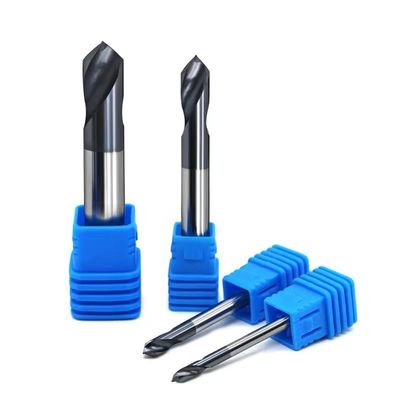

HRC45 2 Flutes AITiN NC Spotting Drill Bit Precision Machining Solid Carbide Drill Bit

Brand Name:	BABOS
Model Number:	NC451010075090
MOQ:	10pcs
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10,000PCS per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Cut Diameter:

10mm

Shank Diameter:

10mm

Cut Length:

75mm

Coating/Finish Type:

AITiN

Machine Type:

CNC Machines

Grade Of Coating:

YG10X With 10% Co Content And 0.8um Grain Size

Application:

Centering And Countersinking On CNC Machines

Tolerance:

-0.015~-0.040

Customize:

Available

Point Angle:

90°/120°

Overall Length:

90mm

Number Of Flutes:

Direction Of Cut:

Right Hand

Material:

Solid Carbide

Packaging Details:

Plastic Box

Highlight:

HRC45 Spotting Drill Bit

2 Flutes Spotting Drill Bit

precision machining solid carbide drill bit

Product Description

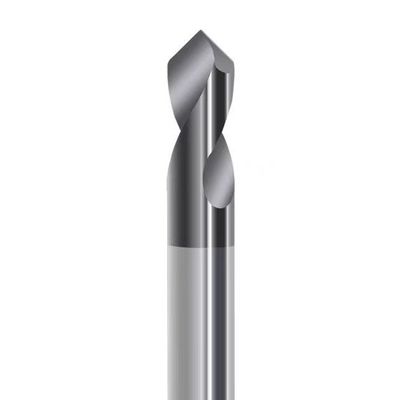

HRC45 2 Flutes AITiN NC Spotting Drill Bit Precision Machining Solid Carbide Drill Bit

Product Description:

The HRC45 Solid Carbide 2 Flutes NC Spotting Drill is a specialized tool designed for precision machining.

Features:

Product Name:HRC45 2 Flutes NC Spoting Drill
Material: Tungsten Carbide
Point Angle: 90 Degrees
Application/Usage: Metalworking
Applicable Materials: Cement, cast Iron, Steel, Stainless Steel, Titanium and other Non-Ferrous Materials.
Coating: AITiN

Technical Parameters:

Product Material	Tungsten Carbide
Flute Number	2
Coating/Finish Type	AITiN
Point Angle	90 Degrees
Tolerance	-0.015mm~-0.040mm
Machine Type	CNC machines
Customize	Available
OEM	Available
Sample Order	Accepted

Applications:

The BABOS NC Spoting Drill is deal for chamfering, spot drilling, hole centering accuracy and countersinking. We offer Cobalt NC Spoting Drill with an 90°/120° point angle.

HRC45 NC Spotting Drill(AITiN Coated)
Cut Dia.	Cut Length	Shank Dia	Overal Length	Flutes	Point Angle
D(mm)	d(mm)	Lc(mm)	L(mm)	Flutes	Point Angle
3	50	3	90	2	90°/120°
4	50	4	90	2	90°/120°
5	50	5	90	2	90°/120°
6	50	6	90	2	90°/120°
8	60	8	90	2	90°/120°
10	75	10	90	2	90°/120°
12	75	12	90	2	90°/120°
3	50	3	120	2	90°/120°
4	50	4	120	2	90°/120°
5	50	5	120	2	90°/120°
6	50	6	120	2	90°/120°
8	60	8	120	2	90°/120°
10	75	10	120	2	90°/120°
12	75	12	120	2	90°/120°
