8mm HRC60 4 Flutes Radius End Mill Cutter For Metal AITiN Coated

8mm HRC60 4 Flutes Radius End Mill Cutter For Metal AITiN Coated

Brand Name:	BABOS
Model Number:	CR45080200806R304F/CR55080200806R304F
MOQ:	10pcs
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	20,000PCS per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Cut Diameter:

8mm

Cut Length:

20mm

Shank Diameter:

8mm

Corner Radius:

3°

Coating/Finish Type:

AITIN

Grade Of Coating:

YG10X - 10% Co, 0.8um Grain Size/ZK30UF - 10% Co, 0.6um Grain Size

Machine Type:

Finish Machining, Roughing Machining

Application:

Milling And Cutting Of Carbon Steel, Malleable Cast Iron, Alloy Steel, Stainless Steel, Etc.

Tolerance:

0.020mm~0.050mm

Customize:

Available

Packaging Details:

Plastic Box

Highlight:

HRC45 metal milling bits

HRC55 radius cutter end mill

8mm roughing end mills for steel

Product Description

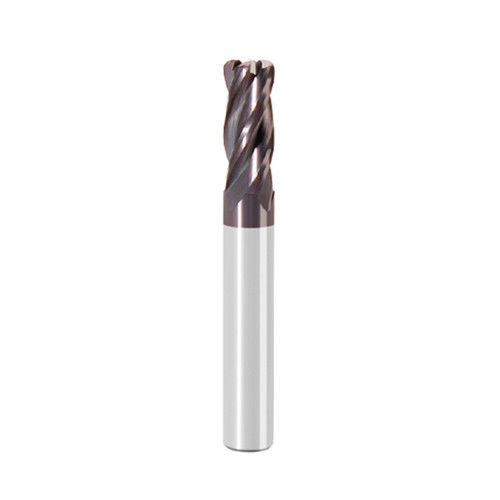

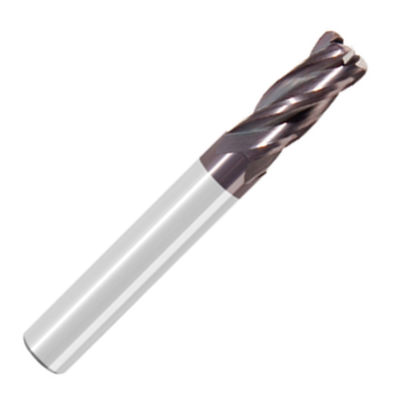

8mm HRC60 4 Flutes Radius End Mill Cutter For Metal AITIN Coated

Product Description:

A carbide 4-flute corner radius end mill is a versatile cutting tool designed for enhanced performance and longevity, especially in harder materials. This tool is widely used in precision industries like aerospace, automotive, and mold-making, where both durability and fine detail are essential.

Features:

Product Name:4 Flutes Corner Radius End Mill
Cut Diameter: 8mm
Cut Length: 20m
Shank Diameter: 8mm
Overall Length: 60mm
Sample Order: Accepted
Coating/Finish Type: AITiN
Flute Type: Corner Radius End
Hardness: HRC45/HRC55
Customize: Available

Technical Parameters:

Product Material	Tungsten Carbide
Flute Number	4
Coating/Finish Type	AITiN
Helix Angle	35 Degrees
Corner Radius	3°
Application	Internal Part Radius Cutting
Tolerance	0.020mm~0.050mm
Machine Type	Finish Machining, Roughing Machining
Customize	Available
OEM	Available
Sample Order	Accepted

Applications:

Finishing and semi-finishing: The 4-flute design and corner radius make this end mill ideal for achieving high-quality finishes on hard materials.
Reduced tool wear: The corner radius provides additional strength to the edges, especially useful when working with harder metals.
Heavy-duty cutting: Suitable for roughing and finishing operations in applications where precise corner detailing is needed, like molds and dies, or when cutting harder alloys.
Machining steel, stainless steel, cast iron, and other hard materials.
