Solid Carbide Inverted Cone Burr SN-42 1/8" Shank Diameter, 1/8" Head Diameter With 3/16" Length

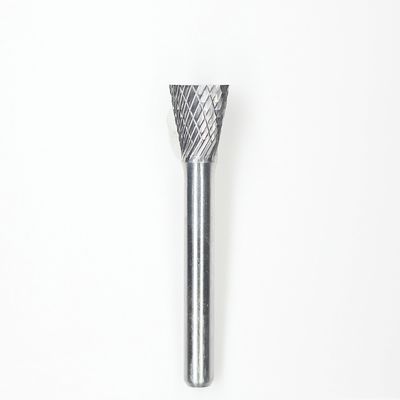

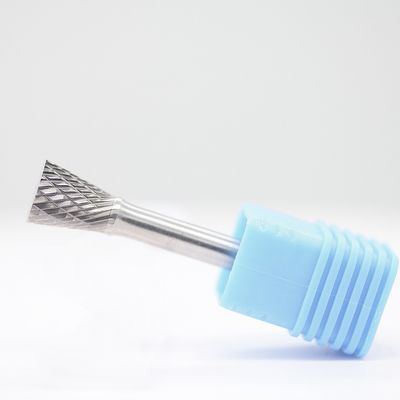

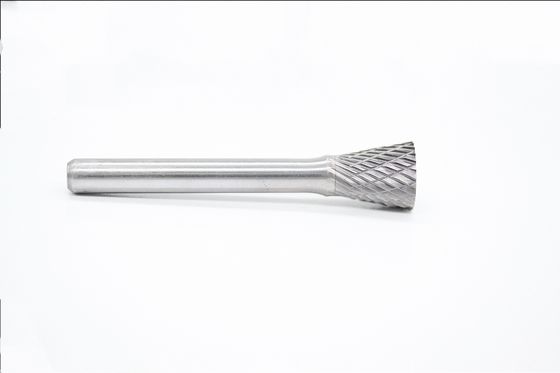

Large Image : Solid Carbide Inverted Cone Burr SN-42 1/8" Shank Diameter, 1/8" Head Diameter With 3/16" Length

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	SN-42

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiable
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10,0000pcs per month

Contact Now

Detailed Product Description

Material:	Tungsten Carbide	Shape:	Inverted Cone
Cut Diameter:	1/8 Inch	Cut Length:	3/16 Inch
Shank Diameter:	1/8 Inch	Flute Type:	Standard Double Cut
Suitable For:	Machining Surface Profile Of Workpiece	Application:	Deburring, Shaping, And Finishing
Package Quantity:	1	Max Rpm:	50,000
Highlight:	1/8” Shank Diameter Carbide Burr , 1/8” Head Diameter Carbide Burr , 3/16” Length Carbide Burr

Solid Carbide Inverted Cone Burr SN-42 1/8" Shank Diameter, 1/8" Head Diameter With 3/16" Length

Solid Carbide Inverted Cone Burr SN-42 1/8" Shank

Solid Carbide Inverted Cone Burr SN-42 1/8" Shank Diameter, 1/8" Head Diameter With 3/16" Length 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:1/8"

Length of Flute: 3/16"

Shank Diameter: 1/8"

OAL: 1-1/2"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type N Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Included Angle	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Included Angle	Tool No.	The Combination of Head and Shank
3	3	4	38	10°	N0304	Solid
	5	6	44	10°	N0506	Brazed
	6	7	45	10°	N0607	Brazed
6	6	7	52	10°	N0607	Brazed
	8	9	54	10°	N0809	Brazed
	10	10	55	20°	N1010	Brazed
	12	13	58	20°	N1213	Brazed
	16	16	61	20°	N1616	Brazed
	19	16	61	30°	N1916	Brazed
8	12	13	58	20°	N1213	Brazed
	16	16	61	20°	N1616	Brazed
	19	16	61	30°	N1916	Brazed
Inch Standard
Shank Dia. (inch)	Cutter Dia. (inch)	Length of Cut (inch)	Overall Length (inch)	Included Angle	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Included Angle	Tool No.	The Combination of Head and Shank
1/4''	1/4''	1/4''	1-3/4"	10	SN-51	Brazed
	3/8''	3/8"	2-1/9"	13°	SN-2	Brazed
	1/2''	1/2''	2-1/4"	28°	SN-4	Brazed
	5/8''	3/4''	2-1/2"	18°	SN-6	Brazed
	3/4''	5/8"	2-3/8"	30°	SN-7	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type N burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

ALUMINUM

CUT(W)

DIAMOND CUT(D)
