SK-9 Carbide Rotary File 90 Degree Angle Double Cut For Die Grinder 1" X 1/2" With 1/4" Shank

All Products

Tungsten Carbide Burr (96)

Annular Cutter (28)

Milling Cutter (61)

Circular Saw (4)

Screw Tap (9)

Drill Bit (17)

China CHENGDU BABOS CUTTING TECH CO.,LTD certification

I'm Online Chat Now

SK-9 Carbide Rotary File 90 Degree Angle Double Cut For Die Grinder 1" X 1/2" With 1/4" Shank

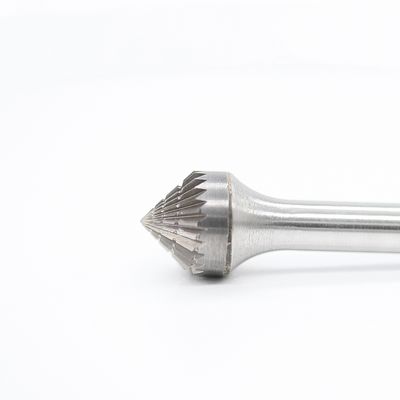

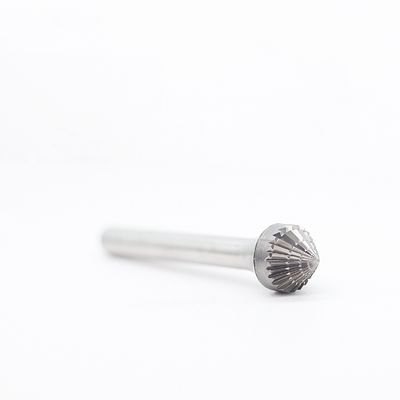

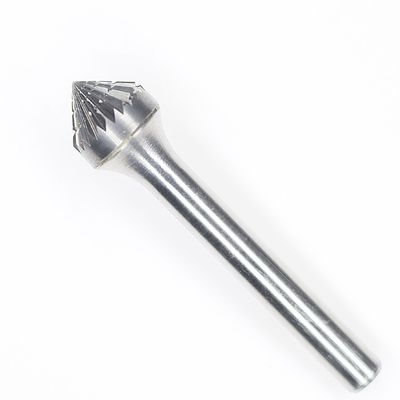

Large Image : SK-9 Carbide Rotary File 90 Degree Angle Double Cut For Die Grinder 1" X 1/2" With 1/4" Shank

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	SK-9

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiable
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10,0000pcs per month

Contact Now

Detailed Product Description

Material:	Tungsten Carbide	Shape:	90°countersink
Cut Diameter:	1 Inch	Cut Length:	1/2 Inch
Shank Diameter:	1/4 Inch	Flute Type:	Standard Double Cut
Suitable For:	Machining Surface Profile Of Workpiece	Application:	Deburring, Shaping, And Finishing
Package Quantity:	1	Max Rpm:	50,000
Highlight:	1/4” Shank Carbide Rotary File , 90 Degree Angle Carbide Rotary File , 1” Carbide Rotary File

SK-9 Carbide Rotary File 90 Degree Angle Double Cut For Die Grinder 1" X 1/2" With 1/4" Shank

Description:

The SK-9 carbide rotary file is a 90-degree angle burr designed for use with die grinders, featuring a double-cut pattern for efficient material removal and a smooth finish. Its size and shape make it particularly useful for countersinking, chamfering, and deburring tasks in materials such as metal, wood, plastics, and composites.

The SK-9 double-cut carbide burr is commonly used in metalworking, fabrication, woodworking, automotive, and aerospace industries. Its 1/4" shank makes it compatible with most standard die grinders, allowing for versatile and high-speed use. The 90-degree angle and double-cut design make it an excellent tool for professionals needing to work on both hard and soft materials with efficiency and precision.

SK-9 Carbide Rotary File 90 Degree Angle

SK-9 Carbide Rotary File 90 Degree Angle Double Cut For Die Grinder 1" X 1/2" With 1/4" Shank 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:1"

Length of Flute: 1/2"

Shank Diameter: 1/4"

OAL: 2-3/8"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type K Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	3	2	38	K0302	Solid
6	6	3	48	K0603	Brazed
	8	4	52	K0804	Brazed
	10	5	53	K1005	Brazed
	12	6	54	K1206	Brazed
	16	8	57	K1608	Brazed
	19	9	58	K1909	Brazed
	25	12	61	K2512	Brazed
8	12	6	54	K1206	Brazed
	16	8	57	K1608	Brazed
	19	9	58	K1909	Brazed
	25	12	61	K2512	Brazed
Inch Standard
Shank Dia. (inch)	Cutter Dia. (inch)	Length of Cut (inch)	Overall Length (inch)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
1/8''	1/8"	1/16"	1-1/2"	SK-42	Solid
1/4''	1/4"	1/8"	2"	SK-1	Solid
	3/8"	3/16"	2-1/16"	SK-3	Brazed
	1/2"	1/4''	2-1/9"	SK-5	Brazed
	5/8"	5/16"	2-1/4"	SK-6	Brazed
	3/4"	3/8"	2-1/3"	SK-7	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type K burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

ALUMINUM

CUT(W)

DIAMOND CUT(D)
