SH-6 Flame Carbide Burr Double Cut For Die Grinder 5/8" X 1-7/16" With 1/4" Shank

Large Image : SH-6 Flame Carbide Burr Double Cut For Die Grinder 5/8" X 1-7/16" With 1/4" Shank

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	SH-6

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiable
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10,0000pcs per month

Contact Now

Detailed Product Description

Material:	Tungsten Carbide	Shape:	Flame Shape
Cut Diameter:	5/8 Inch	Cut Length:	1-7/16 Inch
Shank Diameter:	1/4 Inch	Flute Type:	Standard Double Cut
Suitable For:	Machining Surface Profile Of Workpiece	Application:	Deburring, Shaping, And Finishing
Package Quantity:	1	Max Rpm:	50,000
Highlight:	5/8” Carbide Burr

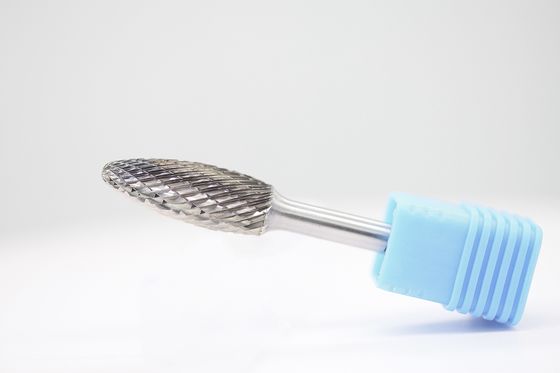

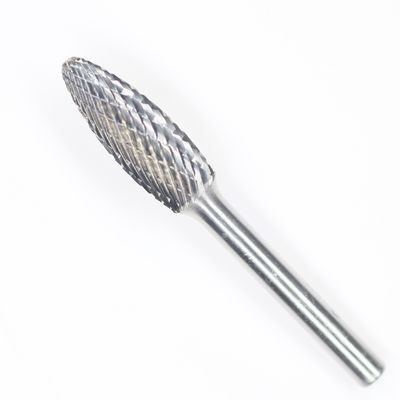

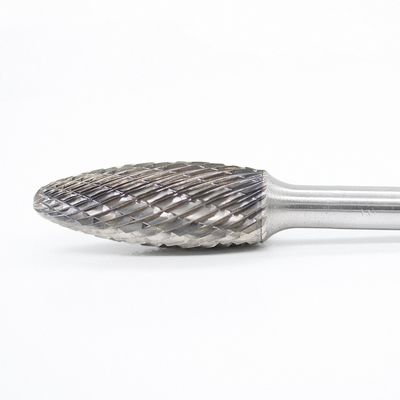

SH-6 Flame Carbide Burr Double Cut For Die Grinder 5/8" X 1-7/16" With 1/4" Shank

Description:

The SH-6 flame carbide burr is a rotary tool with a flame-shaped head, designed for detailed cutting, shaping, and contouring of various hard materials such as metals, wood, plastics, and ceramics. The flame shape tapers to a point, allowing it to work in tight spaces and on intricate designs while providing both side and end cutting capabilities.

This type of burr is commonly used in metalworking, woodworking, and other fabrication industries where intricate, precision work is required. It is typically used with die grinders or rotary tools for high-speed applications.

SH-6 Flame Carbide Burr 5/8" X 1-7/16" With 1/4" Shank

SH-6 Flame Carbide Burr Double Cut For Die Grinder 5/8" X 1-7/16" With 1/4" Shank 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:5/8"

Length of Flute: 1-7/16"

Shank Diameter: 1/4"

OAL: 3-1/5"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type H Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	3	13	38	H0313	Solid
	5	13	51	H0513	Brazed
	6	13	51	H0613	Brazed
6	6	18	63	H0618	Brazed
	8	20	65	H0820	Brazed
	10	25	70	H1025	Brazed
	12	32	77	H1232	Brazed
	16	36	81	H1636	Brazed
	19	41	86	H1941	Brazed
8	12	32	77	H1232	Brazed
	16	36	81	H1636	Brazed
	19	41	86	H1941	Brazed
Inch Standard
Shank Dia. (inch)	Cutter Dia. (inch)	Length of Cut (inch)	Overall Length (inch)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
1/8''	1/8"	1/4"	1-1/2"	SH-41	Solid
1/4''	1/4"	5/7"	2"	SH-1	Solid
	5/16"	3/4''	2-1/2"	SH-2	Brazed
	1/2"	1-1/4"	3"	SH-5	Brazed
	3/4"	1-5/8"	3-3/8"	SH-7	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type H burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

ALUMINUM

CUT(W)

DIAMOND CUT(D)
