5/16" × 3/4" SH-2 Flame Tungsten Carbide Rotary File 1/4" Shank Flame Shape Double Cut Rotary Burr

Name: 5/16" × 3/4" SH-2 Flame Tungsten Carbide Rotary File 1/4" Shank Flame Shape Double Cut Rotary Burr
Brand: CHENGDU BABOS CUTTING TECH CO.,LTD
SKU: SH-2
Availability: InStock

Brand Name:	BABOS
Model Number:	SH-2
MOQ:	20pcs
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10,0000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Tungsten Carbide

Shape:

Flame Shape

Cut Diameter:

5/16 Inch

Cut Length:

3/4 Inch

Shank Diameter:

1/4 Inch

Flute Type:

Standard Double Cut

Suitable For:

Machining Surface Profile Of Workpiece

Application:

Deburring, Shaping, And Finishing

Package Quantity:

Max Rpm:

50,000

Packaging Details:

Plastic Box

Highlight:

3/4” Tungsten Carbide Rotary File

5/16” Tungsten Carbide Rotary File

Product Description

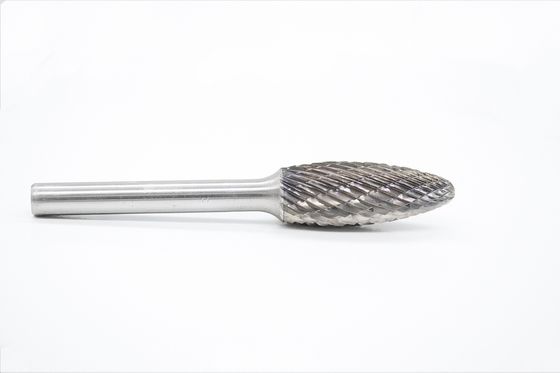

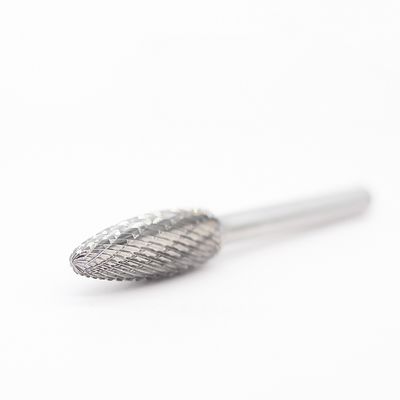

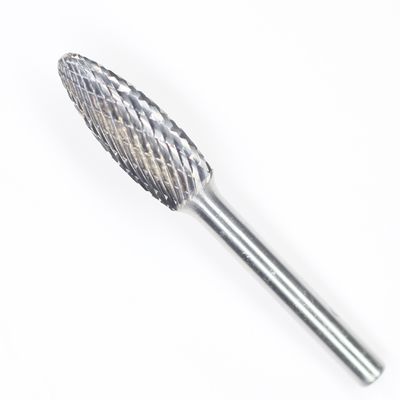

5/16" × 3/4" SH-2 Tungsten Carbide Rotary File 1/4" Shank Flame Shape Double Cut Rotary Burr

Description:

The SH-2 flame shape carbide burr is a Perfect for metal, steel, aluminum, iron,wood and acrylics.

5/16" × 3/4" SH-2 Tungsten Carbide Rotary File

5/16" × 3/4" SH-2 Flame Tungsten Carbide Rotary File 1/4" Shank Flame Shape Double Cut Rotary Burr 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:5/16"

Length of Flute: 3/4"

Shank Diameter: 1/4"

OAL: 2-1/2"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type H Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	3	13	38	H0313	Solid
	5	13	51	H0513	Brazed
	6	13	51	H0613	Brazed
6	6	18	63	H0618	Brazed
	8	20	65	H0820	Brazed
	10	25	70	H1025	Brazed
	12	32	77	H1232	Brazed
	16	36	81	H1636	Brazed
	19	41	86	H1941	Brazed
8	12	32	77	H1232	Brazed
	16	36	81	H1636	Brazed
	19	41	86	H1941	Brazed
Inch Standard
Shank Dia. (inch)	Cutter Dia. (inch)	Length of Cut (inch)	Overall Length (inch)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
1/8''	1/8"	1/4"	1-1/2"	SH-41	Solid
1/4''	1/4"	5/7"	2"	SH-1	Solid
	1/2"	1-1/4"	3"	SH-5	Brazed
	5/8"	1-7/16"	2003/1/5	SH-6	Brazed
	3/4"	1-5/8"	3-3/8"	SH-7	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type H burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
