Solid SH-41 Flame 1/8" Shank Rotary Carbide Burr Flame Shape Die Grinder Cutting Burrs Bit

Large Image : Solid SH-41 Flame 1/8" Shank Rotary Carbide Burr Flame Shape Die Grinder Cutting Burrs Bit

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	SH-41

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiable
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10,0000pcs per month

Contact Now

Detailed Product Description

Material:	Tungsten Carbide	Shape:	Flame Shape
Cut Diameter:	1/8 Inch	Cut Length:	1/4 Inch
Shank Diameter:	1-1/2 Inch	Flute Type:	Standard Double Cut
Suitable For:	Machining Surface Profile Of Workpiece	Application:	Deburring, Shaping, And Finishing
Package Quantity:	1	Max Rpm:	50,000
Highlight:	1/8” Shank Rotary Carbide Burr , Flame Shape Rotary Carbide Burr , Solid Rotary Carbide Burr

Solid SH-41 1/8" Shank Rotary Carbide Burr Flame Shape Die Grinder Cutting Burr Bit

Description:

SH-41 flame shape solid carbide burr offer long tool life and faster cutting speeds than other brazed carbide burrs, but it must be used with rigid toolholding systems because solid carbide burr is more brittle.

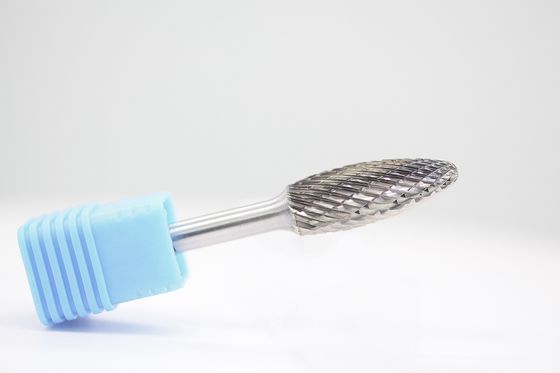

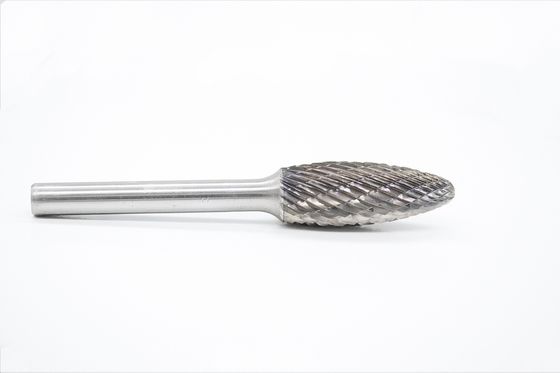

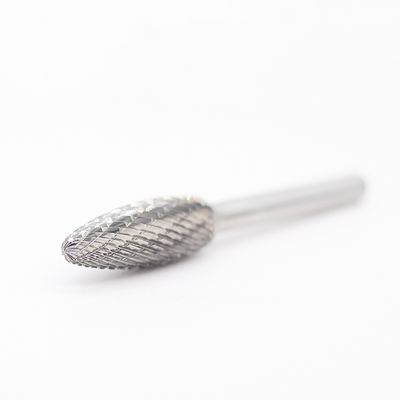

Solid SH-41 1/8" Shank Rotary Carbide Burr

Solid SH-41 Flame 1/8" Shank Rotary Carbide Burr Flame Shape Die Grinder Cutting Burrs Bit 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:1/8"

Length of Flute: 1/4"

Shank Diameter: 1/8"

OAL: 1-1/2"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type H Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	3	13	38	H0313	Solid
	5	13	51	H0513	Brazed
	6	13	51	H0613	Brazed
6	6	18	63	H0618	Brazed
	8	20	65	H0820	Brazed
	10	25	70	H1025	Brazed
	12	32	77	H1232	Brazed
	16	36	81	H1636	Brazed
	19	41	86	H1941	Brazed
8	12	32	77	H1232	Brazed
	16	36	81	H1636	Brazed
	19	41	86	H1941	Brazed
Inch Standard
Shank Dia. (inch)	Cutter Dia. (inch)	Length of Cut (inch)	Overall Length (inch)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
1/4''	1/4"	5/7"	2"	SH-1	Solid
	5/16"	3/4''	2-1/2"	SH-2	Brazed
	1/2"	1-1/4"	3"	SH-5	Brazed
	5/8"	1-7/16"	2003/1/5	SH-6	Brazed
	3/4"	1-5/8"	3-3/8"	SH-7	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type H burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

ALUMINUM

CUT(W)

DIAMOND CUT(D)
