Tungsten Carbide Burr
Created with Pixso.

SG-5 Tree Pointed End Carbide Burr Double Cut 1/2" x 1" 1/4"

SG-5 Tree Pointed End Carbide Burr Double Cut 1/2" x 1" 1/4"

Brand Name: BABOS
Model Number: SG-5
MOQ: 20pcs
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 100,000pcs per month
Detail Information
Place of Origin:
China
Material:
Tungsten Carbide
Shape:
Tree Pointed
Cut Diameter:
1/2"
Cut Length:
1"
Shank Diameter:
1/4"
Flute Type:
Standard Double Cut
Suitable For:
Steel, Stainless Steel, Cast Iron
Application:
Deburring, Shaping, And Finishing
Package Quantity:
1
Max Rpm:
20,000
Packaging Details:
Plastic Box
Highlight:

1/4” Shank Carbide Burr Tree

,

Double Cut Carbide Burr Tree

Product Description

SG-5 Tree Pointed End Carbide Burr, Double Cut, 1/4" Shank

Description

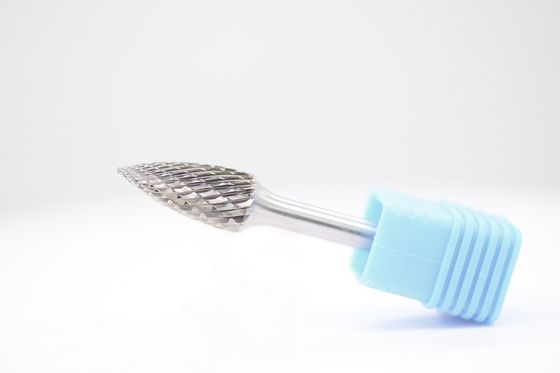

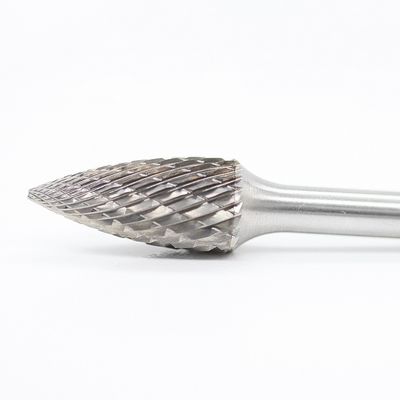

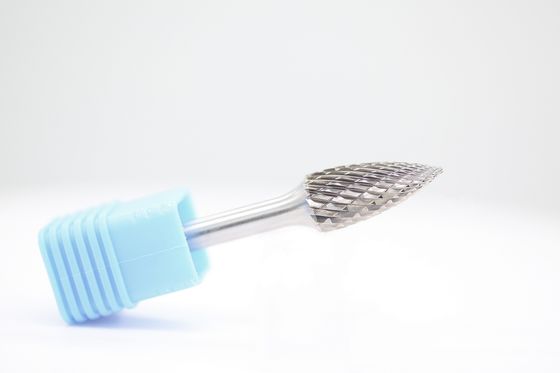

The SG-5 carbide burr is a tree shape burr with a pointed end, cut in standard double cut flutes on solid tungsten carbide, brazed onto a 1/4" shank. Where a cylindrical or radius-end burr has to stop short, the sharp tapered tip keeps working — it reaches the bottom of square inside corners, digs out V-notches and gets under weld roots that no rounded profile can touch. The 1/2" head with a 1" flute gives you enough contact width to shape, blend and feather the surrounding surface in the same pass.

Because the flutes run right- and left-hand in double cut, the burr breaks chips instead of shaving them. That means faster stock removal, less loading and a shorter, more controllable chip — the working choice for steel, stainless steel and cast iron in maintenance shops, fabrication and foundry work.


Where the SG-5 earns its place

  • Square inside corners — the pointed tip cuts where cylindrical burrs leave the corner untouched
  • Weld dressing — dig into the root, then blend the bead with the taper sides
  • V-notches, grooves and serrations — the tapered sides follow angled walls
  • Casting and forging cleanup — remove gates, flash and surface defects on ferrous parts
  • Chamfering and countersinking — the tip opens holes and breaks edges quickly


Pointed end or radius end?


SG-5 (this page)

SL-4 radius end

Tip

Sharp point

Rounded (1/4"-style radius)

Best at

Square corners, V-notches, weld roots

Fillets, inside radii, blends

Cut diameter

1/2"

1/2"

Cut length

1"

1-1/8"

Both are double cut, 1/4" shank, same material family — pick by the geometry you have to reach. See the SL-4 taper with radius end for fillet work.

Specification

Item

Value

Shape

Tree (Taper) with Pointed End

Cut Type

Standard Double Cut

Cut Diameter

1/2"

Length of Cut

1"

Overall Length

2-3/4"

Shank Diameter

1/4"

Head/Shank

Brazed

Working Speed

10,000–20,000 rpm (by material)

FAQ

Can I use the SG-5 on aluminium?

You can, but it is not the right tool. Double cut flutes tend to load up with soft, sticky alloys. For aluminium, copper and plastics, a single cut or Aluminum cut burr clears chips far better — contact us for our single/Aluminum cut tree shape options.


Which machines accept this burr?

Any grinder that chucks a 1/4" shank: standard pneumatic die grinders, flexible shaft machines and high-speed electric grinders. Match the machine speed to the table above rather than running flat out.


Why is the working speed lower than my grinder's rating?

A die grinder's rating is free speed measured with an empty chuck. A 1/2" brazed carbide head run at 50,000 rpm puts its cutting edge near 2,000 m/min — far beyond what the braze joint can hold. Stay in the table's ranges and the burr keeps its edge for its full service life.




Other Available Sizes Related to Type G Carbide Burrs Both in Metric and Inch Standard:


Metric Standard
Shank Dia. (mm) Cutter Dia. (mm) Length of Cut (mm) Overall Length (mm) Tool No. The Combination of Head and Shank
d2 d1 l2 l1
3 3 13 38 G0313 Solid
5 13 51 G0513 Brazed
6 13 51 G0613 Brazed
6 6 18 63 G0618 Brazed
8 20 65 G0820 Brazed
10 20 65 G1020 Brazed
12 25 70 G1225 Brazed
16 25 70 G1625 Brazed
19 25 70 G1925 Brazed
8 12 25 70 G1225 Brazed
16 25 70 G1625 Brazed
19 25 70 G1925 Brazed
Inch Standard
Shank Dia. (inch) Cutter Dia. (inch) Length of Cut (inch) Overall Length (inch) Tool No. The Combination of Head and Shank
d2 d1 l2 l1
1/8'' 1/8" 1/2" 1-1/2" SG-44 Solid
1/4" 1/2" 2" SG-51 Brazed
1/4'' 1/4" 5/8" 2" SG-1 Brazed
5/16" 3/4'' 2-1/2" SG-2 Brazed
3/8" 3/4'' 2-1/2" SG-3 Brazed
5/8" 1 2-3/4" SG-6 Brazed
3/4" 1 2-3/4" SG-7 Brazed
3/4" 1-1/2" 3-1/4" SG-15 Brazed




Customization:

  1. Please send us the drawings or other important information if you need non-standard carbide burrs.
  2. Please contact us if you need more information about type G burrs or other shapes of burrs.
  3. OEM is avaliable.




Cut Selection Guide:


STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
