OEM 1/4" Cut Diameter Tungsten Carbide Carbide Bur Tree Radius End Standard Souble Cut

Large Image : OEM 1/4" Cut Diameter Tungsten Carbide Carbide Bur Tree Radius End Standard Souble Cut

Product Details:

Place of Origin:	China
Brand Name:	BABOS
Model Number:	SF-51

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiable
Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10,0000pcs per month

Contact Now

Detailed Product Description

Material:	Tungsten Carbide	Shape:	Ball Nosed Tree
Cut Diameter:	1/4 Inch	Cut Length:	1/2 Inch
Shank Diameter:	1/8 Inch	Flute Type:	Standard Double Cut
Suitable For:	Machining Surface Profile Of Workpiece	Application:	Deburring, Shaping, And Finishing
Package Quantity:	1	Max Rpm:	50,000
Highlight:	Tree Shape 1 8 carbide burr set , Tungsten 1 8 carbide burr set , rotary burrs for metal

OEM 1/4" Cut Diameter Tungsten Carbide Carbide Bur Tree Radius End Standard Souble Cut

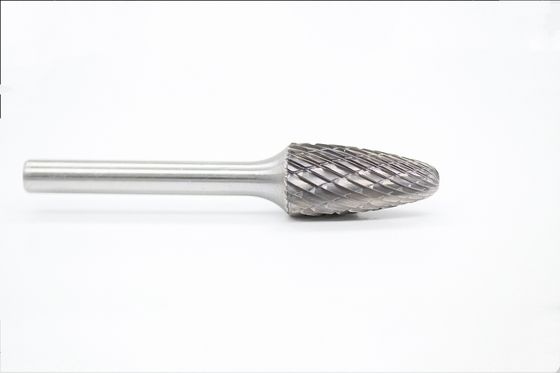

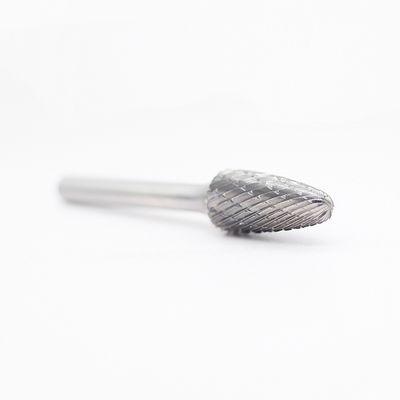

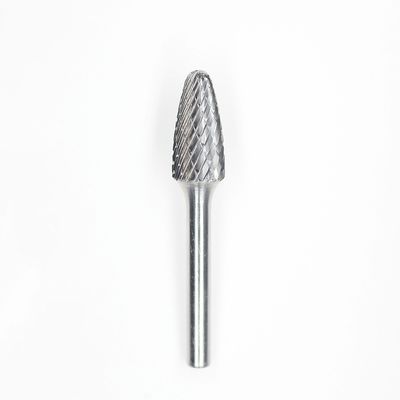

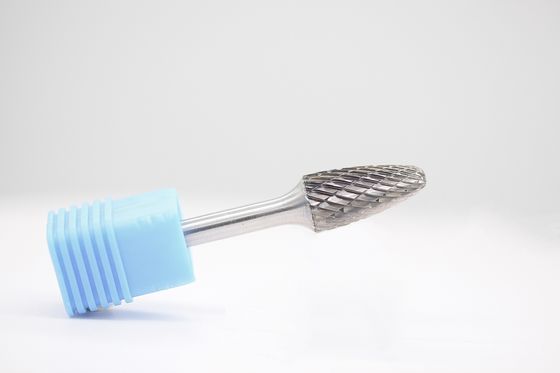

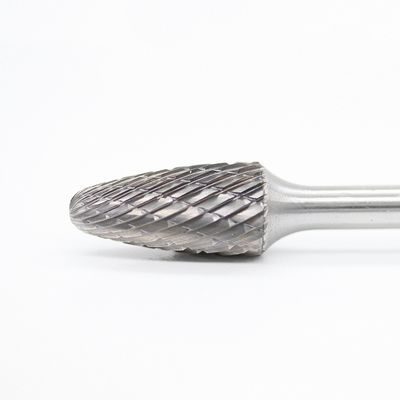

SF-51 1/8" Shank Tree Shape Radius Tungsten Carbide Rotary Burr

OEM 1/4" Cut Diameter Tungsten Carbide Carbide Bur Tree Radius End Standard Souble Cut 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:1/4"

Length of Flute: 1/2"

Shank Diameter: 1/8”

OAL: 2"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type F Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length. (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	3	13	38	F0313	Solid
	5	13	51	F0513	Brazed
	6	13	51	F0613	Brazed
6	6	18	63	F0618	Brazed
	8	20	65	F0820	Brazed
	10	20	65	F1020	Brazed
	11	25	70	F1125	Brazed
	12	25	70	F1225	Brazed
	16	25	70	F1625	Brazed
	19	25	70	F1925	Brazed
8	12	25	70	F1225	Brazed
	16	25	70	F1625	Brazed
	19	25	70	F1925	Brazed
Inch Standard
1/8''	1/8''	1/2''	1/2''	SF-42	Solid
1/4''	3/8''	3/4''	1/2''	SF-3	Brazed
	7/16''	1''	3/4''	SF-4	Brazed
	1/2''	3/4''	1/2''	SF-13	Brazed
	1/2''	1''	3/4''	SF-5	Brazed
	5/8''	1''	3/4''	SF-6	Brazed
	3/4''	1''	3/4''	SF-7	Brazed
	3/4''	1/4''	3''	SF-14	Brazed
3/8''	3/4''	1/4''	1/4''	SF-15	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type F burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
